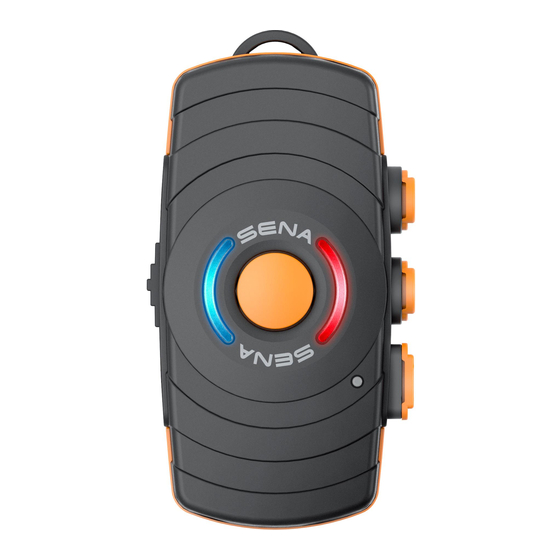

Sena FreeWire SP29 User Manual

Bluetooth cb and audio adapter
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

FreeWire
Bluetooth CB and Audio Adapter
User's Guide
SENA
www.sena.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FreeWire SP29 and is the answer not in the manual?

Questions and answers

Related Manuals for Sena FreeWire SP29

Summary of Contents for Sena FreeWire SP29

  • Page 1 FreeWire Bluetooth CB and Audio Adapter User’s Guide SENA www.sena.com...

  • Page 2: Table Of Contents

    CONTENTS 1. INTRODUCTION 2. PACKAGE CONTENTS 3. INSTALLING THE FREEWIRE 3.1 Installing on the Handle Bar 3.2 Placing on the Mounting Cradle 4. POWERING ON/OFF AND CHARGING 4.1 Powering On 4.2 Battery Check 4.3 Charging 5. PAIRING THE FREEWIRE WITH BLUETOOTH DEVICES 6.
  • Page 3 The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received.

  • Page 4: Introduction

    When a rider and a passenger connect the FreeWires to each port and pair a Sena headset to each FreeWire, they can communicate with each other using the bike’s internal communication network.
  • Page 5 ● Dimensions: 83 mm X 45 mm X 25 mm (3.3 in X 1.8 in X 1.0 in) ● Weight: 50 g (1.76 oz) ● CE, FCC, IC...

  • Page 6: Package Contents

    2. PACKAGE CONTENTS 2.1 FreeWire for Harley-Davidson Package • Main Unit • Handlebar Mounting Kit • Mounting Cradle • USB Power & Data Cable (Micro USB type) • Micro USB to 7 Pin DIN Cable for Harley-Davidson • 3.5 mm Stereo Audio Cable - Straight •...
  • Page 7 • Handlebar Mounting Kit • Mounting Cradle • USB Power & Data Cable (Micro USB type) • Micro USB to 5 Pin DIN Cable for Honda Goldwing • 3.5 mm Stereo Audio Cable - Straight • Cigarette Charger (Jack Type)

  • Page 8: Installing The Freewire

    3. INSTALLING THE FREEWIRE 3.1 Installing on the Handlebar Attach the mounting kit on the back of the FreeWire along the guide rail. Place the main unit on the handlebar, wind the rubber band around the handlebar, and hang it on the hook. 3.2 Placing on the Mounting Cradle Locate a proper surface on your motorcycle body, clean the body surface location with a moistened towel, and allow to dry thoroughly.

  • Page 9: Powering On/Off And Charging

    4. POWERING ON/OFF AND CHARGING 4.1 Powering On/Off To power on the FreeWire, slide the Power Switch to on. The Blue and Red LEDs will turn on. To power off, slide the Power Switch to off. 4.2 Battery Check When the FreeWire is powering on, the Red LED flashes rapidly indicating the battery level. 4 flashes = High, 70~100% 3 flashes = Medium, 30~70% 2 flashes = Low, 0~30%...

  • Page 10: Pairing The Freewire With Bluetooth Devices

    5. PAIRING THE FREEWIRE WITH BLUETOOTH DEVICES The FreeWire must be paired with a Bluetooth headset to connect with the onboard audio system. Please take the following steps to pair with your Bluetooth headsets. 1. Turn on your Bluetooth headset and enter pairing mode, following the Bluetooth headset manual. 2.

  • Page 11: Using The Freewire

    6. USING THE FREEWIRE 6.1 Connections The FreeWire has one Onboard Audio In Port for wired connection with the onboard audio system and one AUX Port for wired connection with other devices. ● Onboard Audio In: Onboard audio system input To connect the Harley-Davidson Ultra Classic Audio System with the FreeWire, use the included Micro USB to 7 Pin DIN cable.

  • Page 12: Quick Reference

    However, this will not restore the FreeWire to factory default settings. 7. QUICK REFERENCE ● Buttons Button Description Duration Power Switch ON Power on Solid blue and solid red Power Switch OFF Power off LEDs off Center Button Headset Pairing 5 secs Blue and Red LEDs rapidly flashing Factory Reset...

  • Page 13: Fcc Compliance Statement

    CE Declaration of Conformity This product is CE marked according to the provisions of the R&TTE Directive (99/5/EC). Hereby, Sena declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information, please consult www.sena.com.

  • Page 14: Industry Canada Statement

    Bluetooth License The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sena is under license. Other trademarks and trade names are those of their respective owners. ® The product is compliant with and adopts the Bluetooth Specification 3.0 and has successfully passed all interoperability...

  • Page 15: Product Use

    ● Any 3rd party USB charger can be used with Sena products if the charger is approved by either the FCC, CE, IC or other locally approved agencies that Sena accepts. ●...

  • Page 16: Limited Warranty

    Sena Technologies, Inc. (“Sena”) guarantees the product quality based on the technical specification stated in the product manual, and data regarding product warranty. Here, product warranty extends to the product only. Sena will not be liable for any loss, damage of human life, or loss of property which may result from using the product beyond defective parts or flaws that occur due to problems in manufacture.

  • Page 17: Warranty Exclusions

    Further, Sena will not be liable for any substantial damage not related to the condition, environment, or malfunction of the product.

  • Page 18: Warranty Service

    FOR THE PRODUCT BY THE PURCHASER. Liabilities Disclaimer In addition to damages which may occur due to the use of the product, Sena will not be liable for damages of the product which occur due to the following events. In the event the product is misused or used for purposes other than its intended purposes.
  • Page 19 Dé claration de conformité CE Ce produit porte un marquage CE, conformément aux dispositions de la directive R&TTE (99/5/CE). Sena dé clare par la pré sente que ce produit est conforme aux exigences principales et autres dispositions correspondantes de la directive 1999/5/CE.
  • Page 20 Licence Bluetooth La marque et les logos Bluetooth® sont la propriété de Bluetooth SIG, Inc et toute utilisation de ces marques par Sena s'effectue sous licence. D’autres marques et appellations commerciales sont celles de leurs propriétaires respectifs. Le produit est conforme à et suit la spécification Bluetooth® 3.0 et a réussi tous les tests d'interopérabilité mentionnés dans la spécification Bluetooth®...
  • Page 21 Ne pas peindre le produit. La peinture pourrait obstruer les pièces amovibles ou interférer avec le fonctionnement normal du produit. Ne pas laisser tomber ou cogner l'appareil. Cela pourrait endommager le produit ou ses circuits électroniques internes. Ne pas démonter, réparer ou modifier le produit car cela pourrait endommager le produit et annuler la garantie du produit. Utilisation du produit ●...
  • Page 22 Période de garantie Sena garantit le remplacement sans frais des pièces défectueuses du produit ou des défauts ayant pu survenir en raison de problèmes lors de la fabrication pour une période de deux ans à compter de la date d'achat initiale FIN DE LA GARANTIE La garantie de qualité...
  • Page 23 à des tiers ayant pu se produire lors de votre utilisation du produit. D'autre part, Sena n'est pas responsable des dommages substantiels qui ne sont pas liés à l'état, à l'environnement ou au dysfonctionnement du produit. Tous les risques associés à l'utilisation du produit dépendent entièrement de l'utilisateur, quelle que soit son utilisation par l'acheteur d'origine ou d'un tiers.
  • Page 24 Service sans frais Sena offre un service de réparation ou de remplacement sans frais du produit lorsque les défauts de produit rentrent dans la limite de la garantie du produit durant la période de garantie. Service payant Sena offre un service de réparation ou de remplacement payant du produit lorsque la période de garantie du produit a...
  • Page 25 À moins de renvoyer le produit dans une période de 14 jours à compter de la date d'achat, vous aurez lu et accepté l'ensemble des conditions exposées ci-dessus et Sena ne sera pas responsable de toute réclamation ou dommages associés au produit.
