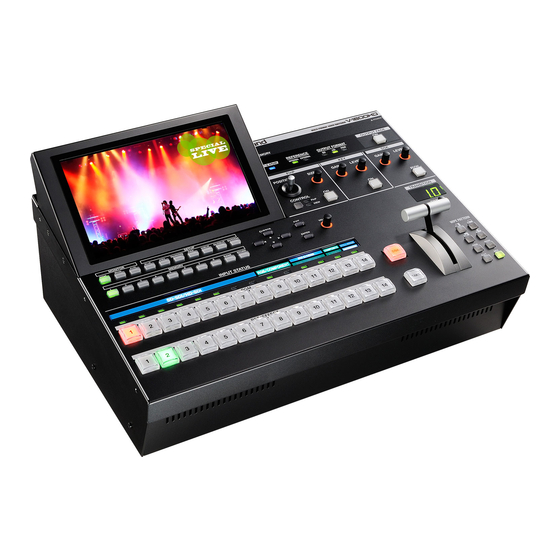

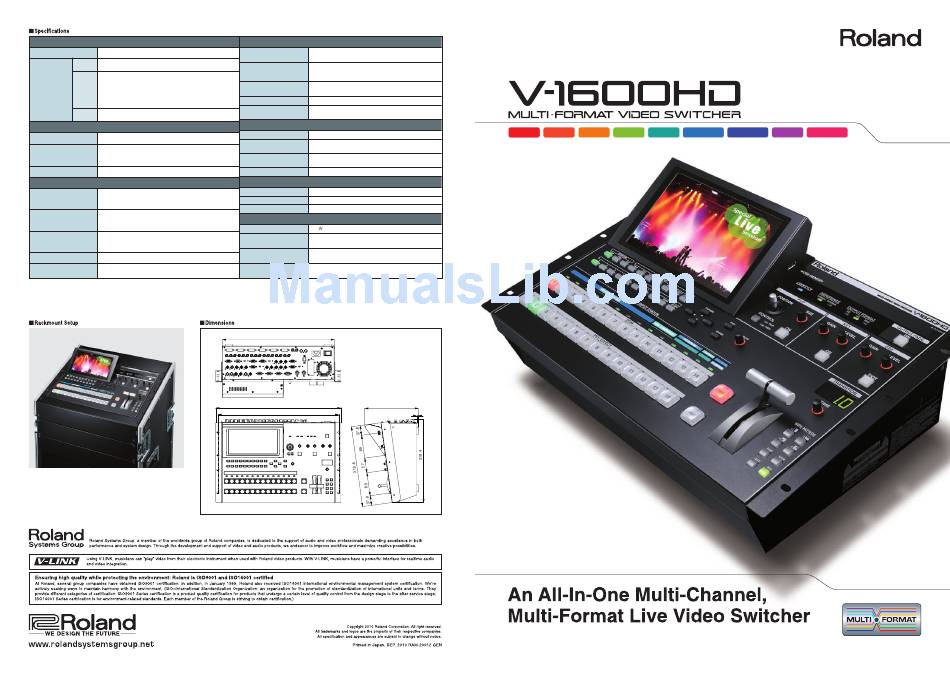

Roland V-1600HD Brochure & Specs

Video Processing
Processing 4:2:2 (Y:Pb:Pr), 10 bit
VIDEO 480/59.94i, 576/50i, 480/59.94p, 576/50p, 1080/59.94p, 1080/50p,
(HD/SD)
1080/59.94i, 1080/50i, 720/59.94p, 720/50p
640 x 480/60 Hz * 1 , 800 x 600/60 Hz * 1 , 1024 x 768/60 Hz *
1280 x 768/60 Hz * 1 , 1280 x 1024/60 Hz * 1 , 1600 x 1200/60 Hz,
Supported
1920 x 1200/60 Hz * 2
RGB
Formats
* Conforms to VESA DMT Version 1.0 Revision 10
* 1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz
* 2 Reduced blanking
Windows Bitmap File (.bmp)
STILL
* Maximum 1900 x 1200 pixels, 24-bit per pixels, uncompressed
Input/Output Level and Impedance
Composite 1.0 Vp-p, 75 ohms
Luminance Signal : 1.0 Vp-p, 75 ohms
Chrominance Signal : 0.286 Vp-p, 75 ohms (NTSC)
S-Video
0.3 Vp-p, 75 ohms (PAL)
Analog HD/RGB 0.7 Vp-p, 75 ohms (H, V : 5VTTL)
Input Connectors
* Loop thru connectors are equipped for all inputs
S-Video (4 pin mini DIN type) x 1
Analog SD Composite (BNC type) x 1
* Select one from menu
Y/Pb/Pr (BNC type) x 2
Analog HD
D-Sub 15 pin type x 2
(Component)
* Combined use with analog RGB
R/G/B/H/V (BNC type) x 2
Analog RGB
D-Sub 15 pin type x 2
* Combined use with analog HD (Component)
DVI-D Single Link Type x 2
BNC type x 8
HD/SD-SDI
* Conforms to SMPTE 259M-C, SMPTE 292M
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference at his own expense.
This product is intended for use in the following Electromagnetic environments:
E1:residential, E2:commercial and light industrial, E3:urban outdoors, E4:controlled EMC environment, ex. recording studio (broadcasting studio) which are specified in EN55103-1 and EN55103-2.
Output Connectors
S-Video (4 pin mini DIN type) x 1
Analog SD
Composite (BNC type) x 1
Y/Pb/Pr (BNC type) x 1
Analog HD
D-Sub 15 pin type x 1
(Component)
1 ,
* D-Sub 15 pin type : combined use with analog RGB
D-Sub 15 pin type x 1
Analog RGB
* Combined use with analog HD (Component)
DVI-D Single Link Type x 2
BNC type x 2
HD/SD-SDI
* Conforms to SMPTE 259M-C, SMPTE 292M
Other Connectors
D-Sub 15 pin type x 3 (200 mA, Open Collector type)
TALLY
MIDI (IN, OUT/THRU)
Remote
RS-422 (D-Sub 9 pin type) x 1
BNC type (IN, THRU)
REFERENCE
*Black Burst (Sync to Frames), Bi-Level, Tri-Level Sync
USB port (host) A type x 1 for USB memory
Effects
Mix, FAM, NAM, Wipe (9 patterns)
Transition
Composition PinP, Chroma Key, Luminance Key, Split, DSK
Others
Output Fade, Edge Blending, Dual Screen, Span Screen
Others
Power Consumption 90
482 (W) x 319.4 (D) x 206.2 (H) mm
Dimensions
19 (W) x 12-5/8 (D) x 8-1/8 (H) inches
8.1kg
Weight
17 lbs 14 oz
Power Cord,
Accessories
Owner's Manual
432
482
206.2
465
HD-SDI SD-SDI
Unit: mm
