Roland V-1HD Manual

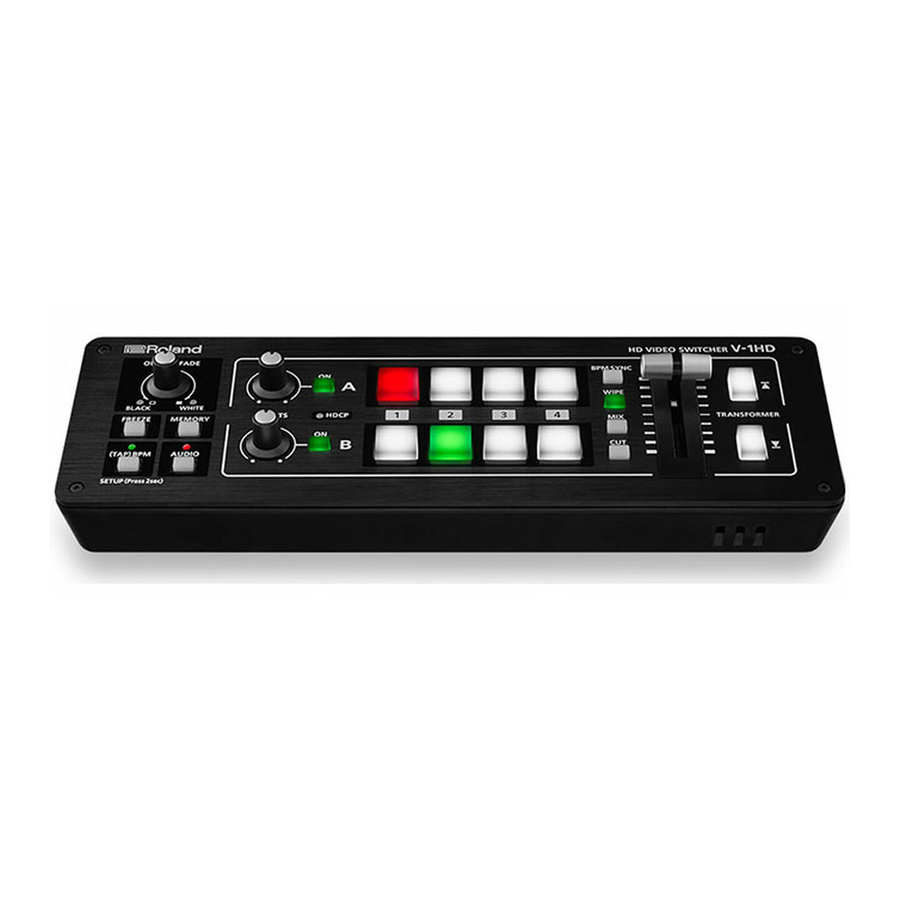

Hd video switcher, remote control
Hide thumbs Also See for V-1HD:

Advertisement

Quick Links

This manual describes the settings used when remotely operating the
V-1HD via MIDI.
Contents
MIDI Control Modes of the V-1HD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Remote Control Guide
SETUP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Receiving the Remote Control Messages . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Sending the Messages to an External MIDI Device . . . . . . . . . . . . . . . . . 4
MIDI Implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Copyright © 2015 ROLAND CORPORATION

Advertisement

loading

Related Manuals for Roland V-1HD

Summary of Contents for Roland V-1HD

  • Page 1: Table Of Contents

    MIDI Control Modes of the V-1HD . . . . . . . . . . . . . . . . .

  • Page 2: Midi Control Modes Of The V-1Hd

    MIDI Visual Control (MVC) is a new world-wide standard of MIDI. It aims to link music and video during live performances. By connecting the two devices via MIDI, you can remotely control the V-1HD with an electronic musical instrument in time to the music or audio. The V-1HD switches to MVC mode when it receives an MVC “On”...

  • Page 3: Receiving The Remote Control Messages

    Set this value according to the master device channel. You can remote control the following functions from a device supporting MVC after sending MVC ON message to the V-1HD. * For corresponding MIDI messages, refer to “1-2. MIDI Visual Control Mode” (p. 6) in “MIDI Implementations. ”...

  • Page 4: Sending The Messages To An External Midi Device

    Sending the Messages to an External MIDI Device If you are sending MIDI messages to an external MIDI device from the V-1HD, set parameters as below. MIDI OUT Set this to “OUT. ” MIDI Tx CHANNEL Select the Tx channel.

  • Page 5: Midi Implementation

    MIDI Implementation { Effect Control 2 (Controller Number 13) Model: V-1HD „ Date: November 20. 2015 Status 2nd Byte 3rd Byte Version: 1.00 * This controls the value of the AUDIO MIXER’s HDMI 4 audio input level. Symbol Item Setting Range { Undefined (Controller Number 14) „...
  • Page 6 MIDI Implementation 1-2. MIDI Visual Control Mode { Undefined (Controller Number 24) „ Status 2nd Byte 3rd Byte „Channel Voice Messages „ * This controls the state of the [EFFECTS B] knob. When this is set to “00H, ” the effect z Note On „...
  • Page 7 MIDI Implementation 1-3. V-LINK Mode z Channel Pressure „ Status 2nd Byte 3rd Byte „Channel Voice Messages „ * The receiving channel of effect control and output fade control is specified by z Note On „ Effect Control Ch. of MVC. The receiving channel for all the other controls is specified by Clip Control Ch.
  • Page 8 ID number: This is to specify the manufacturer of the product that generates the message. The manufacture ID of Roland is 41H. The ID numbers of 7EH and 7EF are the expansion of MIDI standard and used as universal non-realtime message (7EH) and universal realtime message (7FH).
  • Page 9 Manufacturer ID (Roland) Model ID lower byte (V-LINK) Device ID (dev: 00H–1FH,10H is default) Command ID (DT1) 1st byte of model ID (V-1HD) Upper byte of the address 2nd byte of model ID (V-1HD) Address 3rd byte of model ID (V-1HD)
  • Page 10 * This transmits the value when the AUDIO MIXER’s MASTER audio output level has been changed. Messages that the V-1HD generates are always transmitted to USB MIDI. When “MIDI OUT” (p. 2) is set to “OUT, ” messages are also transmitted from MIDI OUT.
  • Page 11 ID number: This is the ID to recognize manufacturer of the exclusive message (manufacturer ID). The manufacturer ID of Roland is 41H. The ID numbers of 7EH and 7FH are expansion of MID standards and used as universal non-realtime message (7EH) of universal realtime message (7FH).
  • Page 12 MIDI Implementation 3. Parameter Address Map 3-1. Standard (original for the V-1HD) * Transmission and reception are always possible regardless of whether MVC or V-LINK is on or off. * At addresses with “#” appended, the specified data is transmitted divided into the upper 2 bytes and lower 2 bytes. The data is ignored if the 2-byte sets are not received in succession.
  • Page 13 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 70H 01H 19H DEINTERLACE MODE 00H–01H WEAVE, BOB 70H 01H 1aH COLOR BAR OUTPUT 00H–01H OFF, ON 70H 01H 1bH TEST TONE OUTPUT 00H–01H OFF, ON 70H 01H 1cH MIDI Rx SOURCE 00H–01H USB, MIDI IN 70H 01H 1dH...
  • Page 14 MIDI Implementation { Video Parameter „ Address Parameter Name Sys.Ex.Value Meaning of Value #71H 00H 00H A/B fader 00 00H–07 7FH 0–1023 #71H 00H 02H effects A pod 00 00H–01 7FH 1–255 #71H 00H 04H effects B pod 00 00H–01 7FH 1–255 #71H 00H 06H outfader...
  • Page 15 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 71H 01H 19H Reserved #71H 01H 10H HDMI IN 2 DELAY 00 00H–27 08 H 0.0–500.0msec 71H 01H 1cH HDMI IN 3 EQ Hi 00H–1EH -15–15dB 71H 01H 1dH HDMI IN 3 EQ Hi FREQ 00H–08H 700Hz–11.0KHz 71H 01H 1eH...
  • Page 16 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 71H 02H 1fH MAIN EQ Mid 00H–1EH -15–15dB 71H 02H 20H MAIN EQ Mid FREQ 00H–1BH 20.0Hz–10.0KHz 71H 02H 21H MAIN EQ Mid Q 00H–05H 0.5–16.0 71H 02H 22H MAIN EQ Lo 00H–1EH -15–15dB 71H 02H 23H...
  • Page 17 MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 73H 03H 06H Audio Level HDMI 3 00H–7fH input level (Read Only) 73H 03H 08H Audio Level HDMI 4 00H–7fH input level (Read Only) 73H 03H 0aH Audio Level Line 00H–7fH input level (Read Only) 73H 03H 0cH Audio Level MIC...
  • Page 18 MIDI Implementation 3-2. MIDI Visual Control Start Address Description 10H 00H 00H System Preference Area (See 3-2-1) 10H 10H 00H Clip Control Assignment Area (See 3-2-2) 10H 30H 00H Clip Control Preference Area (See 3-2-3) * MVC messages are ignored if received while MVC is turned OFF. * MVC messages (except MVC ON messages) are ignored if received while MVC is set to OFF (when in standard mode or V-LINK mode).
  • Page 19 MIDI Implementation 3.3 V-LINK Start Description 10H 00H 00H System Preference Area (See 3-3-1) 10H 10H 00H Clip Control Assignment Area (See 3-3-2) 10H 20H 00H Color Control Assignment Area (See 3-3-3) 10H 30H 00H Clip Control Preference Area (See 3-3-4) * V-LINK messages are ignored if received while V-LINK is turned OFF.
  • Page 20 7 | 07H || 39 | 27H || 71 | 47H || 103 | 67H | Roland Exclusive messages are transmitted with a checksum at the end (before F7) 8 | 08H || 40 | 28H || 72 | 48H || 104 | 68H | to make sure that the message was correctly received.
  • Page 21 MIDI Implementation Chart HD Video Switcher Date: Nov. 20, 2015 Model V-1HD Version: 1.00 Function... Transmitted Recognized Remarks Basic Default Saved when power off Channel Changed 1–16 1–16 Default Mode Messages Altered ************ ************** Note True Voice Number : Note On...
  • Page 22 * Roland is either registered trademark or trademark of Roland Corporation in the United States and/or other countries.
