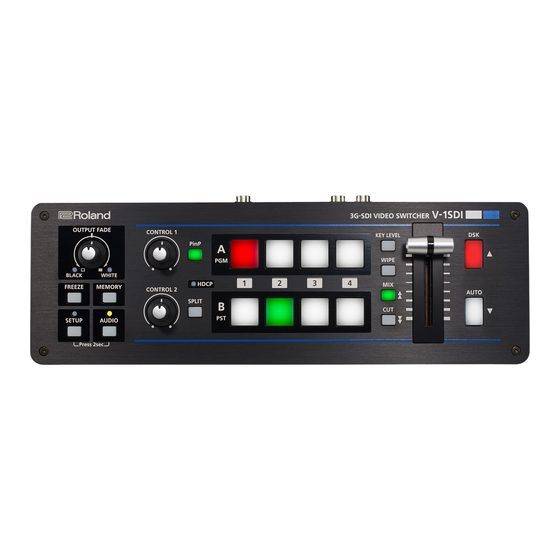

Menu List * Menus are shown only on the monitor connected to the MULTI-VIEW connector (HDMI). * The default value is printed in bold characters. SETUP Menu (Pressing and holding the [SETUP] button for 2 seconds or longer) Setting item Value Explanation VIDEO INPUT (page 1/16)
Page 3
Menu List Setting item Value Explanation TRANSITION/PinP (page 6/16) PinP BORDER WIDTH 0–3–15 This adjusts the width of the border added to the PinP inset screen. COLOR BLACK, WHITE, GRAY, RED, GREEN, BLUE, YELLOW This specifies the color of the border added to the PinP inset screen. DSK (page 7/16) OFF, ON This sets DSK composition on or off.
Page 4
This sets the Auto Off function on or off. AUTO OFF OFF, ON When set to “ON, ” the power to the V-1SDI is automatically turned off if 240 minutes elapse with no operation performed on the unit. This specifies the function of the [OUTPUT FADE] knob.
Menu List AUDIO Menu (Pressing and holding the [AUDIO] button for 2 seconds or longer) Setting item Value Explanation AUDIO LEVEL (page 1/15) SDI1 SDI3 HDMI3 INPUT LEVEL -INF–0.0–+6.0 dB This adjusts the volume level of the respective input audio streams. HDMI4 AUDIO MASTER OUTPUT LEVEL...
Page 6
Menu List Setting item Value Explanation AUDIO OUTPUT (page 12/15) EQ Hi -15–0–15 dB This boosts or attenuates the high band. EQ Hi FREQ 1.00–10.0–20.0 kHz This adjusts the center frequency when changing the sound quality in the high band. EQ Mid -15–0–15 dB This boosts or attenuates the middle band.
* The codes of stx (02H), ACK (06H), and Xon (11H)/ Xoff (13H) are the control codes. * When successively sending commands to the V-1SDI from an external device, after each command, be sure that “ACK” is returned before sending the...
RS-232 Command Reference List of Commands Video-related Operations Sent Response Item Parameter Commands Command Select bus A channel number stxPGM:a; a: 0 (CH 1)–3 (CH 4) Select bus B channel number stxPST:a; a: 0 (CH 1)–3 (CH 4) Specify transition effect stxTRS:a;...
Page 9
RS-232 Command Reference Audio-related Operations Sent Response Item Parameter Commands Command Adjust level of input audio stxIAL:a,b; a: 0 (SDI 1), 1 (SDI 2), 2 (SDI 3), 3 (HDMI 3), 4 (HDMI 4), 5 (AUDIO IN), 6 (MIC IN) b: 0–127 * For details, refer to the “Input/Output Level Correspondence Chart” below. Adjust level of output audio stxOAL:a;...
Page 10
Acquire status of V-1SDI stxACS; Version information stxVER; stxVER:V-1SDI,a; a: Version * The version info is ASCII text strings. Flow control Flow control XOFF Commands Spontaneously Sent from the V-1SDI Sent Response Item Parameter Commands Command Announce status of operation-panel buttons stxQPL:b;...
MIDI Implementation { Undefined (Controller Number 14) Model: V-1SDI Date: October 14. 2016 Status 2nd Byte 3rd Byte Version: 1.00 * This controls the value of the AUDIO MIXER’s HDMI 4 audio input level. Symbol Item Setting Range { Undefined (Controller Number 15) ...
Page 12
This is the ID to recognize manufacturer of the exclusive 3rd byte of model ID (V-1SDI) message (manufacturer ID). The manufacturer ID of Roland 4th byte of model ID (V-1SDI) is 41H. The ID numbers of 7EH and 7FH are expansion of MID...
Page 13
MIDI Implementation { General Purpose Controllers 2 (Controller Number 17) 2. MIDI Messages Transmitted from Status 2nd Byte 3rd Byte MIDI OUT * This transmits the value when the AUDIO MIXER’s MASTER audio output level has been changed. Channel Voice Messages ...
Page 14
ID number: This is the ID to recognize manufacturer of the exclusive message (manufacturer ID). The manufacturer ID of Roland is 41H. The ID numbers of 7EH and 7FH are expansion of MID standards and used as universal non-realtime message (7EH) of universal realtime message (7FH).
Page 15
MIDI Implementation 3. Parameter Address Map * At addresses with “#” appended, the specified data is transmitted divided into the upper 2 bytes and lower 2 bytes. The data is ignored if the 2-byte sets are not received in succession. Start Address Description 00H 00H 00H...
Page 16
MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value 70H 01H 1EH FREEZE MODE 00H–01H ALL, SELECT 70H 01H 1FH DEINTERLACE MODE 00H–01H WEAVE, BOB 70H 01H 20H AUTO OFF 00H–01H OFF, ON 70H 01H 21H OUTPUT FADER ASSIGN 00H–03H VIDEO, V &...
Page 18
MIDI Implementation Address Parameter Name Sys.Ex.Value Meaning of Value #71H 01H 12H DELAY SDI2 00H 00H–27H 08H 0.0–500.0 ms #71H 01H 14H DELAY SDI3 00H 00H–27H 08H 0.0–500.0 ms #71H 01H 16H DELAY HDMI3 00H 00H–27H 08H 0.0–500.0 ms #71H 01H 18H DELAY HDMI4 00H 00H–27H 08H 0.0–500.0 ms...
Page 19
MIDI Implementation { Audio Parameter-2 Address Parameter Name Sys.Ex.Value Meaning of Value 71H 02H 00H AUDIO IN EQ Hi 00H–1EH -15–15 dB 71H 02H 01H AUDIO IN EQ Hi FREQ 44H–78H 1.00–20.0 kHz 71H 02H 02H AUDIO IN EQ Mid 00H–1EH -15–15 dB 71H 02H 03H...
Page 20
MIDI Implementation { Panel Parameter Address Parameter Name Sys.Ex.Value Meaning of Value #71H 03H 00H A/B FADER 00H 00H–07H 7F 0–1023 #71H 03H 02H CONTROL 1 VOL 00H 00H–01H 7FH 0–255 #71H 03H 04H CONTROL 2 VOL 00H 00H–01H 7FH 0–255 #71H 03H 06H OUTPUT FADER...
Page 21
MIDI Implementation z Other Parameter Area { MEMORY Address Parameter Name Sys.Ex.Value Meaning of Value 73H 01H 00H MEMORY SELECT 00H–07H MEMORY 1–8 MEMORY SAVE 10H–17H MEMORY 1–8 MEMORY INIT 20H–28H This returns MEMORY 1–8 (20H–27H) and Current (28H) to default values. * Sending 1nH or 2nH changes the memory selection to the specified memory.
