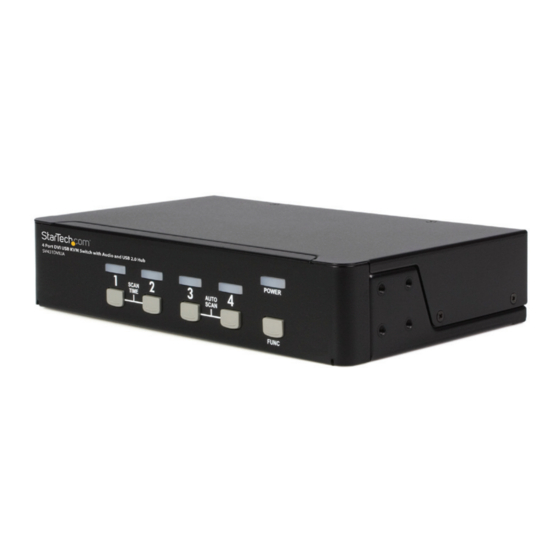

4 Port DVI USB KVM Switch with Audio
and USB 2.0 Hub
SV431DVIUA
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 10/01/2012
*actual product may vary from photos

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV431DVIUA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StarTech.com SV431DVIUA

  • Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 10/01/2012...
  • Page 2: Fcc Compliance Statement

    StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 3: Table Of Contents

    Table of Contents Introduction ...................1 Features ................................ 1 Before You Begin ............................1 Package Contents ............................. 1 Installation ....................2 Console Connections ..........................2 Connecting Slave Computers ....................... 3 Operation ....................4 Rack Mount Kit (Optional) ..............6 Troubleshooting ..................7 Specifications ..................8 Technical Support ..................9 Warranty Information ................9 Instruction Manual...
  • Page 4: Introduction

    Introduction Thank you for purchasing a StarTech.com 4 Port StarView DVI USB KVM Switch. This product offers a cost-effective way to operate up to four computers or servers from a single keyboard, monitor and mouse peripheral set, while saving valuable deskspace.
  • Page 5: Installation

    KVM Switch have been turned off. 1. Connect the monitor that will be used to the Console DVI port on the rear panel of SV431DVIUA 2. Connect a USB keyboard and a USB mouse to any two of the Console USB ports as...
  • Page 6: Connecting Slave Computers

    One USB patch cable for both keyboard and mouse Repeat steps 1a and 1b or and 2 to connect the remaining computers to the available ports. Devices and computers that are connected to SV431DVIUA can now be turned on. Instruction Manual...
  • Page 7: Operation

    SV431DVIUA loses power. To change the Scan Time interval, press both front panel buttons 1 and 2 simultaneously. SV431DVIUA will beep 1, 2, 3 or 4 times for scan time of 3, 8, 15 or 30 seconds respectively.
  • Page 8 SV431DVIUA will beep once (normal) or twice (enhanced) respectively. To adjust the output emphasis of the selected port, press button 4 once, twice, three or four times; SV431DVIUA will beep once (no pre-emphasis), twice (low preemphasis), three times (medium pre-emphasis), or four times (high pre- emphasis), respectively.
  • Page 9: Rack Mount Kit (Optional)

    Rack Mount Kit (Optional) The figure below shows how to attach optional mounting brackets and cable support (SV431RACK) to SV431DVIUA for use with a standard 19” rack cabinet: To Rack Cabinet Back Post To Rack Cabinet Back Post USB to monitor cables to...
  • Page 10: Troubleshooting

    All PCs are off or only Auto Scan does not switch one PC is turned on. PC automatically and Scan mode works for Turn computers on. SV431DVIUA beeps power-on computers only. To adjust the optimal video signal strength corresponding to the...
  • Page 11: Specifications

    Specifications No. of computer supported Front Panel Push Button Hot Plug-and-Play support Automatic Scan Interval 3, 8, 15, 30 seconds Cable Length (Max) 4.6m(15’) for USB Computer ON-LINE LED Computer selected LED Monitor Type USB Type B x 4 Computer peripheral connector Monitor DVI female x 4 USB Type A x 4...
  • Page 12: Technical Support
