Summary of Contents for SecurityMan SM-GSMdialer

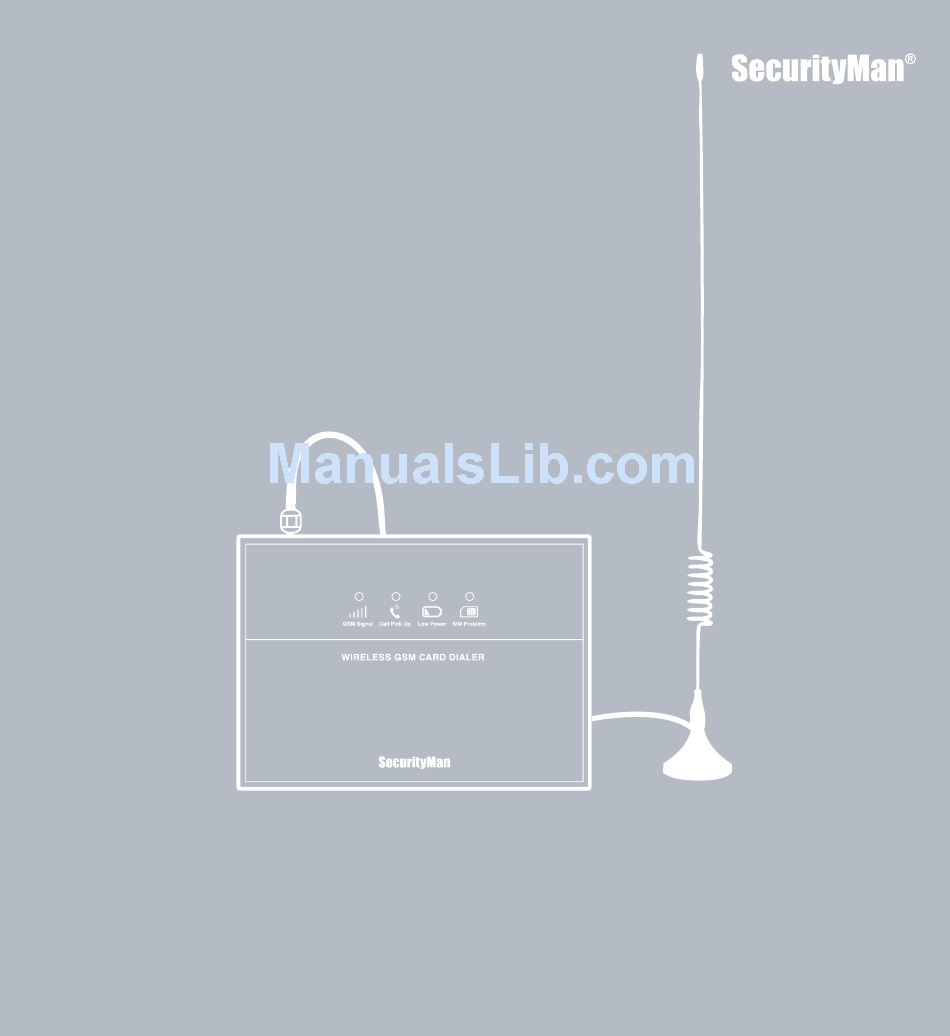

- Page 1 SM-GSMdialer User’s Manual Quad-Band GSM Dialer (850/900/1800/1900MHz) with LED for Air-Alarm Series...
- Page 2 Warranty SecurityMan Inc warrants that this product will be free from defects in title, materials and manufacturing workmanship for a period of one year or otherwise specified on the product packaging. This limited warranty shall commence from the date of purchase.
- Page 3 The liability of SecurityMan Inc, arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall SecurityMan be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale.
-
Page 4: Table Of Contents
Table of Contents Introduction Features Important Restrictions Conditions Package Contents Product Basics Front Panel Back Panel Installation Programming Operation Specifications... -
Page 5: Introduction
SecurityMan Air-Alarm (wireless alarm system) users who do not have a land line and still want to be alerted for any alarm event. The SM-GSMdialer is compatible with “Pay as you go” and Contract SIM cards (not included) from all the major mobile service providers. -
Page 6: Important
Important This guide provides important information on the use and operation of your SM-GSMdialer. Please read all the information carefully prior to using the product for the best performance and to prevent any damage/injuries or misuse of the device(s). Customers are entitled to have read through this complete user’s manual before using the SM-GSMdialer. -
Page 7: Conditions
Young children can choke on these items if they put them into their mouths. • DO NOT plug the AC adapter into the outlet in improper situations. • Plugging in an AC adapter with wet hands might cause electric shock. •... -
Page 8: Package Contents
Package Contents SM-GSMdialer Antenna 1 x AC Adapter 1 x Phone Cable Anchor Guidance 4x Dry Wall Screws Antenna Bracket User’s Manual... -
Page 9: Product Basics
Slow Flash: Normal working status. Call Pick Up • Outgoing Calls: The SM-GSMdialer will beep once and the ”Call Pick Up” LED will stay on solid red whenever an outgoing call is being made, giving an audible and visual notification to anyone who walks... -
Page 10: Back Panel
SIM Problem The SIM Problem red LED stays ON only if there is no SIM card inserted into the SM-GSMdialer, inserted card is not active, or an error occurs during normal operation. If an error should occur during normal operation, please power cycle the unit by switching it to the off position and disconnecting it from the power outlet. - Page 11 SIM card facing the metal contacts of your SM-GSMdialer. GSM Antenna The treaded insert located at the top of the SM-GSMdialer is where the supplied antenna must be screwed on to. NOTE: Please extend the 9.5ft antenna cable when necessary to guarantee the best reception.
-
Page 12: Installation
Installation Prepare the location where you will be mounting the SM-GSMdialer by using the GSM anchor guidance card to pre-drill the mounting holes as shown below (use the green dry wall inserts when applicable). - Page 13 Connect your phone cables from the “TEL OUT” port to “TEL IN” port of your existing SecurtiyMan Air-Alarm Host (SM-8088E/T). The second “TEL OUT” port is for another Air-Alarm Host or phone handset as shown below. SM-GSMdialer Back Panel Air-Alarm Back Panel TEL OUT TEL IN...
- Page 14 GSM dialer for reception. NOTE: Please extend the 9.5ft antenna cable when necessary to guarantee the best reception. Match the SM-GSMdialer mounting holes over the two secured screws (page 11) and then push in to overlap and down to secure.
-
Page 15: Programming
Pick up the phone and press the “TALK” button on the hand set, at this time the SM-GSMdialer will beep once and the ”Call Pick Up” LED will stay on giving an audible and visual notification to anyone who walks by that the phone is in use. -
Page 16: Specifications
NOTE: Remotely arming/disarming the host will require you to disable your SIM cards voice mail (if applicable). Please contact your carrier for information on how and if this can be done. **Please refer to your Air-Alarm user’s manual for instructions on how to add phone numbers to the host or you can visit our website to download a digital copy of your Air-Alarm user’s manual by visiting our website at: http://www.securitymaninc.com/?page_id=625...
