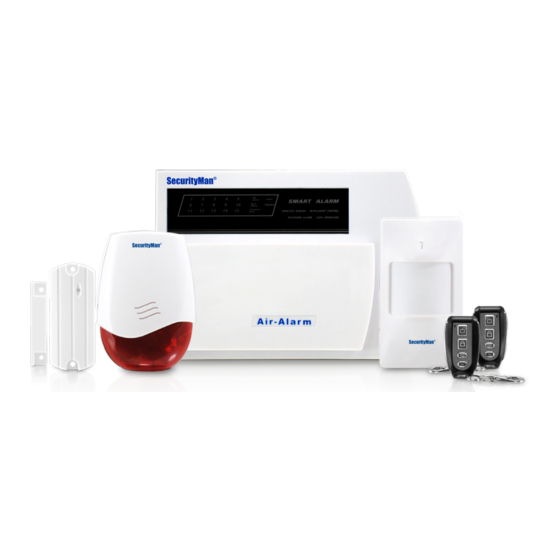

- Page 1 Air-AlArm1 D.i.Y. Wireless Home AlArm sYstem Kit User’s mANUAl...
- Page 2 The liability of SecurityMan arising from this warranty and sale shall be limited to a refund of the purchase price. In no event shall SecurityMan be liable for costs of procurement of substitute products or services, or for any lost profits, or for any consequential, incidental, direct or indirect damages, however caused and on any theory of liability, arising from this warranty and sale.
-
Page 3: Table Of Contents
tAble of CoNteNts introduction Package Contents main features Alarm Host (sm-8088e) Alarm Host Specifications (SM-8088E) Three types of Defense Line Programming the Alarm Host (SM-8088E) To Setup User Code (For Ademco Managemant Center) How to change the programming password Operation Understand and setup Wireless Accessories Wireless Remote Controllers (SM-88X) Wireless Door/Window Sensor (SM-87B) -
Page 4: Introduction
The owner can then dial into the host to arm or disarm the alarm by using the phone’s numeric keypad. The Air-Alarm1 system can be upgraded by adding up to 60 wireless sensors, sirens, and up to 8 remote controllers. -
Page 5: Alarm Host (Sm-8088E)
• Programmable silent alarm or audible alarm. • Recordable alarm voice message (up to 9 seconds record time). • Telephone line disconnection alarm sound every 5 seconds. • Smart 3 defense lines configuration-1st defense line is the perimeter, 2nd defense line for in-room, & 24-hour defense line. •... -
Page 6: Alarm Host Specifications (Sm-8088E)
Alarm Host specifications (sm-8088e) • Operating power: 9-15VDC • Static current: ≤ 60mA • Alarm current: ≤ 380mA • Operating environment: Temperature: -10° ~ 50°C Humidity: <80% • Maximum available quantity of remote controllers: 8 PCS • Maximum available quantity of wireless sensors: 60 PCS •... -
Page 7: Programming The Alarm Host (Sm-8088E)
Programming the Alarm Host (sm-8088e) _function_:_operation__Operation Explanation Notes: 1. The alarm host will automatically exit from the programming status if inactive for 20 seconds. 2. Programming is effective after _SET+Password+ENT_, use ESC button to go to previous step. 3. The alarm host will beep in series to indicate the operation is successful and beep once to indicate operation failure. _:_set + Password + eNt__ This command applies throughout whenever programming the alarm host, before attempting to change other programming features, such as Delay Time to Arm, Delay Time to Alarm, Emergency Alarm Voice, Adding and Cancelling wireless devices, etc . -
Page 8: To Setup User Code (For Ademco Managemant Center)
_Alarm sound for 1st and 2nd defense line_: _XX + eNt__ Enter 40 for XX to disable alarm sound for 1st & 2nd defense line, enter 41 to enable Audible alarm, the default is 41. When the Alarm Sound is disabled or set to 40; the alarm host will operate normal and will continues to dial the enlisted phone numbers upon alarm trigger. -
Page 9: Operation
operation to record a voice message greeting: Slide the switch on the left side of the alarm host to the RECORD ON position, press and hold the microphone button, speak close (6”) into the rear speaker of the host, and then release the microphone button when finished with your voice message greeting. - Page 10 C) Press the star “*” button, the host will end/drop the call and stop to dial the next enlisted alarm telephone numbers. After the “*“ is pressed; the alarm host will resume to be armed Note: the is required in order to stop the alarm host from continuing to dial the next enlisted telephone numbers. D) Hang up the telephone without any command input, the host will end the call and automatically continues to dial the next enlisted alarm telephone numbers.
-
Page 11: Understand And Setup Wireless Accessories
Understand and setup Wireless Accessories Please note that all the devices included with the Air-Alarm1 kit is paired to the Alarm Host (panel) by default. If sensing devices does not trigger the Alarm Host, please reference to the “To Add:” instructions in the user’s manual to add the wireless devices accordingly. All newly add-on sensing devices is required to be pair with the Alarm Host. -
Page 12: Wireless Door/Window Sensor (Sm-87B)
• Press the “HOME” button to part arm or 1st defense line enable to protect the perimeters of your home at night time before going to sleep. • Please replace the battery within 2 years of usage or any time when it becomes less sensitive or has a shorter controlling distance. Adding &... - Page 13 functions/features: • Mainly detect open/close states of doors and windows, generally set as a 1st Defense Line or perimeters. • If any doors or windows are opened, it will transmit the alarm signal to notify the alarm host. specifications: • Operating power: 23A or 27A 12V Battery (Recommend: alkaline battery) •...
-
Page 14: Wireless Wide-Angle Pir Motion Sensor (Sm-80)
Wireless Wide-Angle Pir motion sensor (sm-80) Please use screw (e) to install the bracket (see page22) functions/features: • Mainly monitor and control indoor stereoscopic spaces, generally set as a 2nd Defense Line. • When human body enters the detection areas, the motion sensor will transmit the alarm signal to the alarm host. •... - Page 15 installation and Usage • Mount the bracket to a desired wall surface, location, or corner at a height of about 6ft to 7ft above the ground. • Open the sensor cover and connect a 9VDC battery. Next, refers to the diagrams above to adjust and select the Jumper Line timer between 5S or 5MIN for the motion sensor to detect once every 5 seconds or the sensor to detect once every 5 minutes.
-
Page 16: Wireless Indoor Siren (Sm-103W)
Wireless indoor siren (sm-103W) functions/ features: • Wireless receiving indoor alarm siren, spot alarm sound and flashes • Plugs into wall outlets, for indoor use only. specifications: • Operating Power: 100—240VAC • Wireless Receiving distance:≥300 ft (In open area ) •... -
Page 17: Wireless Smoke Alarm (Sm-93, Optional)
keypad by pressing _esC/Disarm + programming password + eNt_, the alarm host will beep twice to indicate the indoor siren has been successfully disarmed. • The light on the siren will flash 5 times to indicate the indoor siren has been successfully added. To Cancel: •... -
Page 18: Wireless Outdoor Siren (Sm-103, Optional)
specifications: • Operating power: 9V Battery (Recommend: alkaline battery • Wireless Transmitting distance: ≥300ft (in open area) • Service life: ≤2 years • Monitor volume: 480ft3 Adding and Cancelling smoke Alarm To Add: set + Password + eNt_then. • Press_ • 70 + eNt+ XX + eNt The “Learn”... - Page 19 functions/features: • Nice, exquisite and weatherproof. • Micro-computer controller, steady performance and quality. • Study up to 10 pieces to a host. • Built - in rechargeable battery for backup, automatic switches between AC powers to DC power in cases of emergency outage. •...
-
Page 20: Wireless Panic Button (Sm-89, Optional)
• Alarm Host: Press “ ” emergency button on the alarm host to sound off the alarm and then disarm the alarm by using the _esC/Disarm + programming password + eNt_, the alarm host will beep twice to indicate the outdoor siren has been successfully disarmed •... - Page 21 installation and usage • Installed in living rooms, bedsides, carry along, etc. • For emergency use, scared away intruders; sends out emergency signal to alarm host to sound off the siren(s). This is a 24 hour standby zone for panic or emergency use only. •...
-
Page 22: Air-Alarm Defense Zone Code Chart
Air-Alarm1 Defense Zone Code Chart: Defense Zone Code Defense Zone Type Bypass Zone Delay Time to Alarm Compatible Accessories Remark Wireless Remote Controller —— & Wireless Remote Control Up to 8 RC Keypad Wireless Smoke Alarm, 1 to 5 24-hour Defense Line Wireless Gas Alarm, &... -
Page 23: Common Problems And Solutions
Common Problems and solutions Problems Possible Cause solutions The telephone incoming line has not Double check, test and secure the incoming telephone line The alarm host sounded off immediately been connected, poor connection or or use a standard phone to test the line to ensure working after connecting the power short circuit. - Page 24 When the ambient temperature in the detecting area ex- The detecting distance of PIR motion The ambient temperature in the detect- ceeds the human body temperature, the detecting distance sensor gets shorter ing area is too high. will get shorter, it’s normal. Failed to follow the operation instruction The alarm host does not alarm after the Follow the operation instruction of “Adding and Cancel-...
-
Page 25: Daily Maintenance And Care
Daily maintenance and Care This alarm system is hi-tech with outstanding design functionality and sophisticated product features which should be used carefully. To make the alarm system operable long term and prolong the service life; the following are strongly recommended: 1. -
Page 26: Air Alarm Frequently Asked Questions
A1: No, please be sure to turn off the answering machine on the telephone for the alarm host to be able to receive incoming calls. The fact that most answering machines will answer within 6 or 7 rings and our Air-Alarm1 system requires about 15 seconds in order to receive incoming signals and allow arm/disarm, the answering machine will pick up the signal before Air-Alarm1 host if the answering machine is not turned off while away from home. - Page 27 Q10: How can i clear the enlisted telephone numbers from the list? A10: To clear the enlisted telephone numbers press; SET+password+ENT+01 (01~05 group no.)+ENT+ENT Or simply add the enlisted telephone num- bers to the same group to override the old. Q11: my Alarm Host keeps on triggering during in coming and out going calls? A11: Please disable the “Telephone Disconnection Alarm”...
- Page 28 www.securitymaninc.com...
