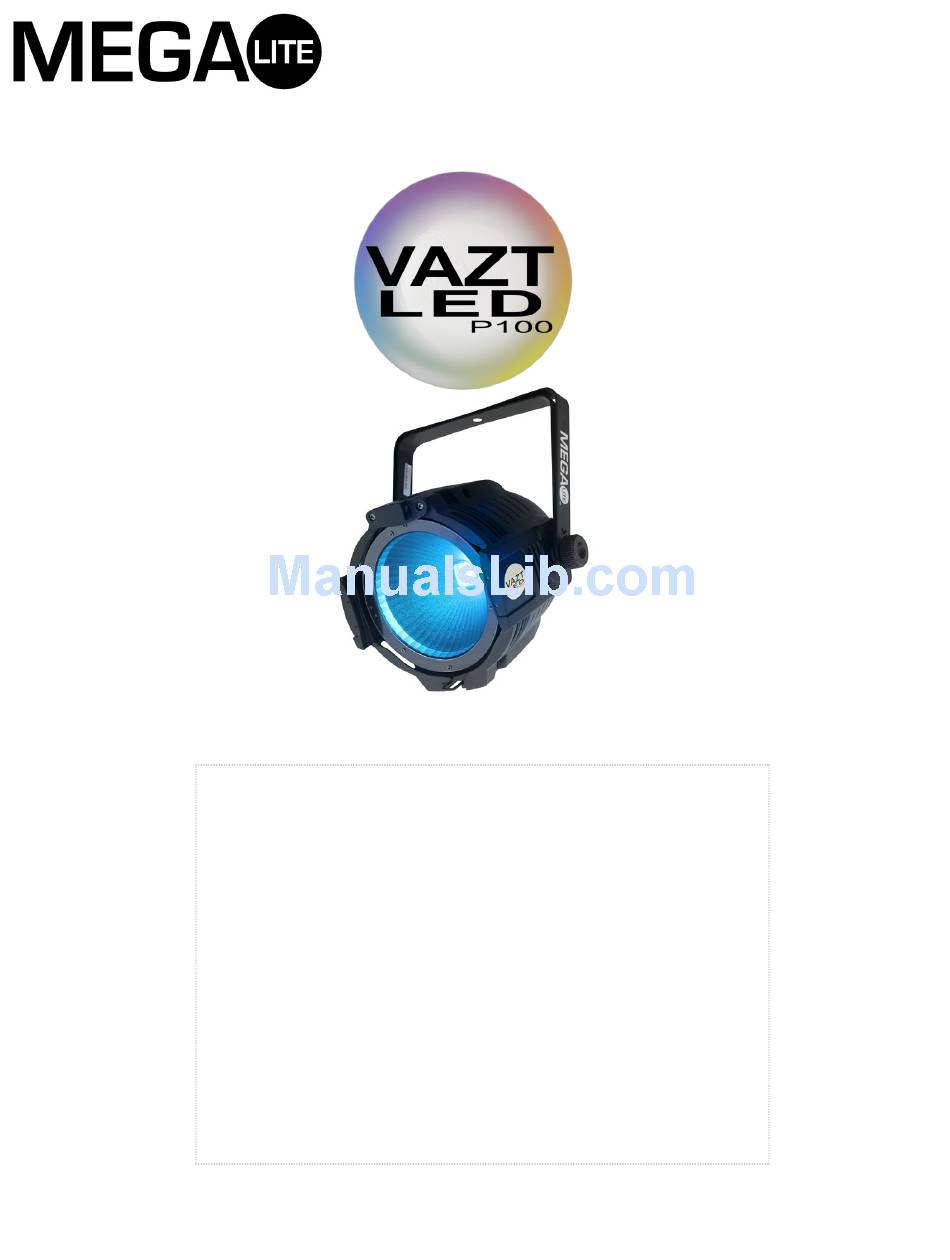

USER MANUAL
Safety Information.......................................................................................................... 3
Specifications.................................................................................................................... 4
Main Power Connection...............................................................................................5
DMX-512 Connection................................................................................................... 5
Main Control Menu.......................................................................................................... 6
DMX Profile......................................................................................................................... 8
Rigging the Fixture..........................................................................................................9
Cleaning & Maintenance................................................................................................9
Parts List...............................................................................................................................9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mega Lite VAZT LED P100
Summary of Contents for Mega Lite VAZT LED P100
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………………………………………………………………. 3 Specifications…………………………………………………………………………………………………….. 4 Main Power Connection…………………………………………………………………………………..5 DMX-512 Connection…………………………………………………………………...……………..5 Main Control Menu......................6 DMX Profile......................... 8 Rigging the Fixture…………………………………………………………………………………………….9 Cleaning & Maintenance....................9 Parts List..........................9... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Technical Information
Technical Information Part Numbers 4400– Vazt P100 Mechanical Specifications 11” 10.75” DMX Connectors: 3 pin XLR connectors in and out Thermal: Maximum ambient temperature 104° Maximum surface temperature 140° Fastening System: Double Mounting Yoke 8.68” Display: Digital Power connection: Cable Mounted nema 5-15 Fixture Packaging Size: 11”... -
Page 5: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz Cable (USA) -
Page 6: Main Control Menu
Display Menu The control board on the fixture base is your interface to access and control all the functions on the unit. Its digital display gives you a code view of the options and functions. The following will explain each function and its options. Press Enter to access the menu. -
Page 7: Dmx Address
DMX Address Press Enter to select the DMX start address channel. The first display will let you know what operation mode you are in. Use the up/down keys to select the desired mode. Press Enter to confirm. (first Letter will also change depending on what mode you are in) Use the up/down keys to select the desired start address press Enter to confirm Set Color Menu Press Enter to set a color via display control. -
Page 8: Dmx Profile
DMX Profile Vazt P100Mode A DMX Chanel Function Description Value LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 Vazt P100 Mode P DMX Chanel Function Description Value LED Color Red LED intensity 0-255 LED Color Green LED Intensity... -
Page 9: Rigging The Fixture
Rigging the fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4. -
Page 10: Warranty Information
Warranty Information Warranty Conditions • Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. • LEDs are not guaranteed to match in color temperature or output. • It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
