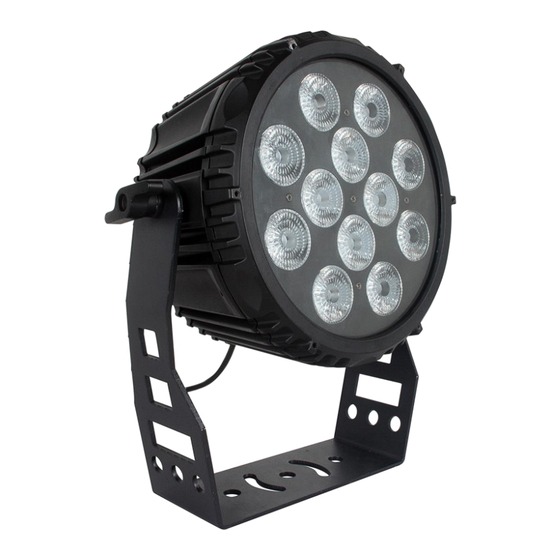

USER MANUAL
Safety Information.............................................................................................3
Specifications...................................................................................................4
Main Power Connection.....................................................................................5
DMX-512 Connection.........................................................................................5
Main Control Menu..............................................................................................................6
DMX Profile.........................................................................................................................8
Rigging the Fixture............................................................................................9
Cleaning & Maintenance.....................................................................................................9
Parts List.............................................................................................................................9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mega Lite Indi PAR RW300
Summary of Contents for Mega Lite Indi PAR RW300
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information…………………………………………………………..…………………….3 Specifications……………………………………………………………………………………...4 Main Power Connection………………………………………………………………………….5 DMX-512 Connection…………………………………………………………………...………..5 Main Control Menu......................6 DMX Profile.........................8 Rigging the Fixture………………………………………………………………………………..9 Cleaning & Maintenance.....................9 Parts List..........................9... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Technical Information Part Numbers 7300– Indi Par RW300 Mechanical Specifications 7” DMX Connectors: Neutrik 3 pin XLR NC3FXX-HD-D and NC3MXX-HD-D 12” IP 67 connectors in and out Power connection: Weather Sealed Neutrik True Power NAC3FX-W Connections to Nema 5-15 adapter (included) -
Page 5: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (electronically grounded) The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz Cable (USA) Cable (EU) -
Page 6: Main Control Menu
Display Menu —Mega Lite— Indi Par To Set the DMX Start Channel press and hold the Mode Use the ▲ or ▼ to se- lect the desired DMX Start Channel and press Mode to confirm your setting. To set the desired operational channel mode press and hold Mode Use the ▲ or Chan Mod ▼... - Page 7 Wireless To Set the Wireless DMX press and hold the Mode Use the ▲ or ▼ to select the wireless DMX on or off. Press the Function button from your Mega Air wireless transmitter. Set the display on your fixture to the DMX screen and set the DMX start channel to the desired channel.
-
Page 8: Dmx Profile
Indi Par RW300 DMX Profile DMX Chanel Function Description Value LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 DMX Chanel Function Description Value Dimmer Dimmer Off to Full 0-255 LED Color... -
Page 9: Rigging The Fixture
Rigging the fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4. - Page 10 Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LEDs are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
