USER MANUAL
Safety Information.......................................................................................................... 3
Specifications.................................................................................................................... 4
Main Power Connection...............................................................................................5
DMX-512 Connection................................................................................................... 5
Main Control Menu.......................................................................................................... 6
DMX Profile......................................................................................................................... 9
Rigging the Fixture.......................................................................................................10
Parts List............................................................................................................................10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mega Lite 4035 Baby Color Q70
Summary of Contents for Mega Lite 4035 Baby Color Q70
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information……………………………………………………………………………………………. 3 Specifications…………………………………………………………………………………………………….. 4 Main Power Connection…………………………………………………………………………………..5 DMX-512 Connection…………………………………………………………………...……………..5 Main Control Menu......................6 DMX Profile......................... 9 Rigging the Fixture………………………………………………………………………………………….10 Cleaning & Maintenance.....................10 Parts List..........................10... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Technical Information

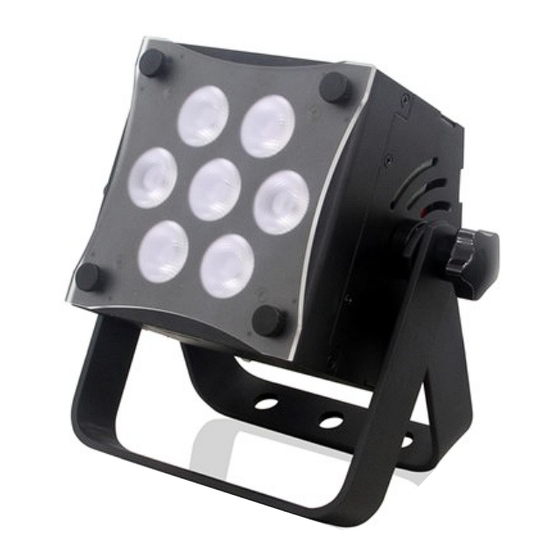

Technical Information Part Numbers 4035– Baby Color Q70 Mechanical Specifications 8.25” 4.25” DMX Connectors: 3 pin XLR connectors in and out Thermal: Maximum ambient temperature 104° Maximum surface temperature 140° Fastening System: Double Mounting Yoke 4.8” Display: Digital 7.25” Power connection: Power Con in &... -
Page 5: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 90V to 240V from 50Hz to 60Hz Cable (USA) -
Page 6: Main Control Menu
Display Menu CONTROL BOARD The control board on the fixture base is your interface to access and control all the functions on the unit. Its digital display gives you a code view of the options and functions. The following will explain each function and its options. Press Up or Down to access the menu. -
Page 7: Sound Mode
Color Chase This function allows you to chase the colors from one to another with out fading. Press Enter use the up/down keys to select desired fade speed settings from 0 to 15. Press Enter to confirm the settings. Fade Scroll This function allows you to fade the LED’s from one color to another. -
Page 8: Software Version
LED Display This function allows you to set the display to automatically turn off after it has not been used for 1 minute. Press Enter use the up/down keys to select desired setting ON for the display to stay on at all time or OFF for the display to automatically turn off. Press Enter to confirm the settings. -
Page 9: Dmx Profile
DMX Profile Baby Color Q70 3 Channel Mode DMX Chanel Function Description Value LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 Baby Color Q70 4 Channel Mode DMX Chanel Function Description Value LED Color... -
Page 10: Rigging The Fixture
Rigging the fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4. -
Page 11: Warranty Information
Warranty Information Limited Warranty Unless otherwise stated, your product is covered by a one year parts and labor limited warranty. Dichroic filters and glass gobos are not guaranteed against breakage or scratches to coating. It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and dealer or distributor.
