USER MANUAL
Safety Information.......................................................................................................... 3
Specifications.................................................................................................................... 4
Main Power Connection...............................................................................................5
DMX-512 Connection................................................................................................... 5
DMX Profile......................................................................................................................... 6
Main Control Menu.......................................................................................................... 8
Rigging the Fixture.......................................................................................................10
Cleaning & Maintenance.............................................................................................10
Parts List............................................................................................................................10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Target Q190 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

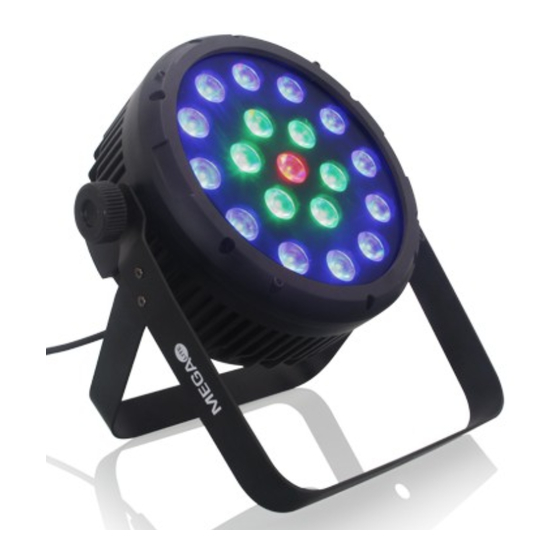

Summary of Contents for Mega Lite Target Q190

  • Page 1: Table Of Contents

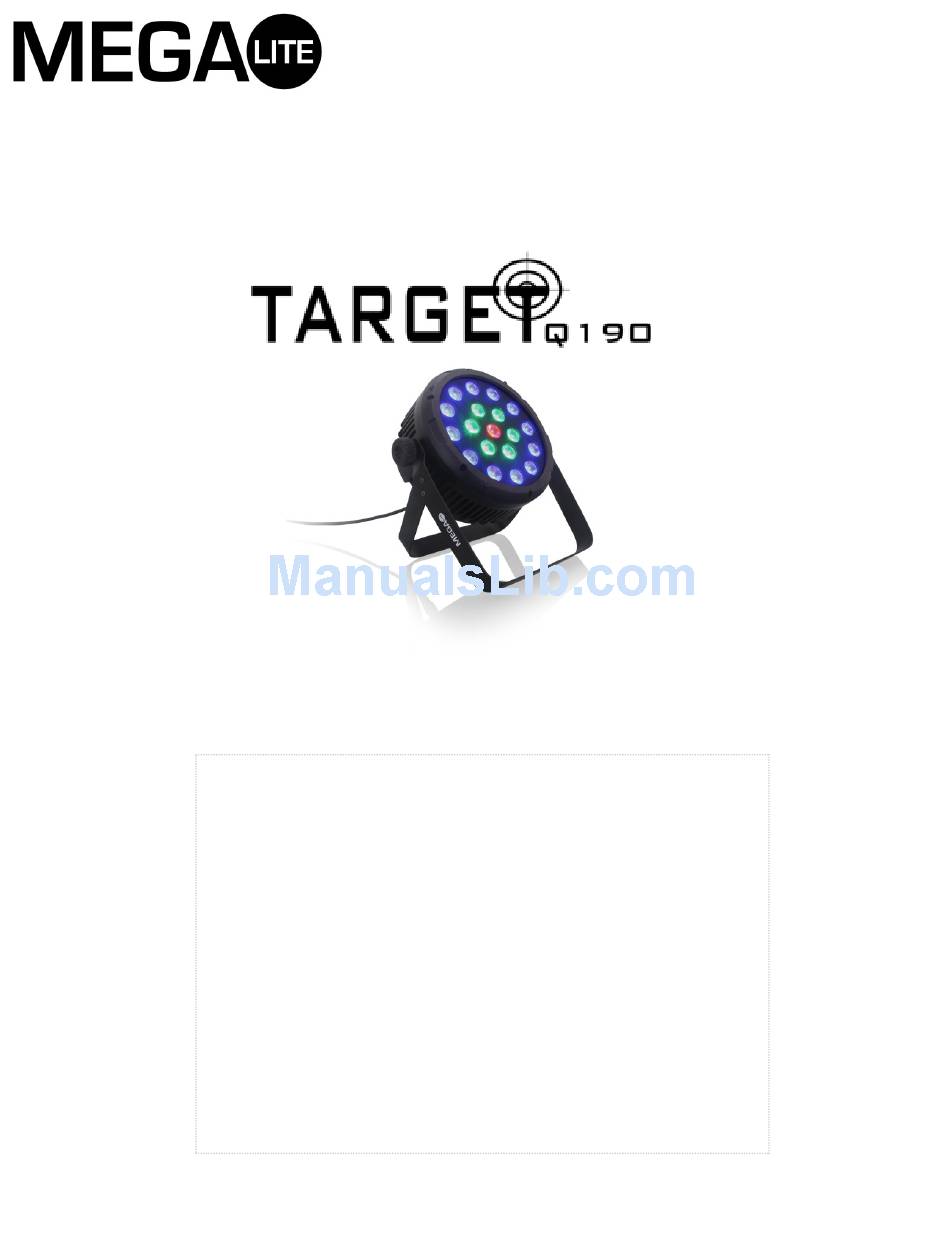

    USER MANUAL Table of Contents Safety Information……………………………………………………………………………………………. 3 Specifications…………………………………………………………………………………………………….. 4 Main Power Connection…………………………………………………………………………………..5 DMX-512 Connection…………………………………………………………………...……………..5 DMX Profile......................... 6 Main Control Menu......................8 Rigging the Fixture………………………………………………………………………………………….10 Cleaning & Maintenance.....................10 Parts List..........................10...
  • Page 3: Table Of Contents Safety Information

    Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5.
  • Page 4: Specifications

    Technical Information Part Numbers Fixture 4085-N-E Color Target Mechanical Specifications 11.80” DMX Connectors: 3 and 5 pin XLR connectors in/out Power Connections: Power Conn in/out Thermal: Maximum ambient temperature 40° C Maximum surface temperature 60° C 9.5” Display: Digital Fastening System: Mounting Yoke 13.5”...
  • Page 5: Main Power Connection

    Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 90V to 240V from 50Hz to 60Hz Cable (USA)
  • Page 6: Dmx Profile

    DMX Profile Target Mode A (3 Channel) DMX Chanel Function Description Value LED Color Red LED intensity 0-255 LED Color Green LED Intensity 0-255 LED Color Blue LED Intensity 0-255 Target Mode P (4 Channel) DMX Chanel Function Description Value LED Color Red LED intensity 0-255...
  • Page 7 Target Mode L (9 Channel) DMX Chanel Function Description Value LED Color Red LED intensity (Inner Circle) 0-255 LED Color Green LED Intensity (Inner Circle) 0-255 LED Color Blue LED Intensity (Inner Circle) 0-255 LED Color Red LED intensity (Middle Circle) 0-255 LED Color Green LED Intensity (Middle Circle)
  • Page 8: Main Control Menu

    Main Control Menu CONTROL BOARD The control board on the fixture base is your interface to access and control all the functions on the unit. Its digital display gives you a code view of the options and functions. The following will explain each function and its options. Menu Down Enter...
  • Page 9: Dmx Mode

    Flash This function allows you to strobe the LED’s on the whole module in White color. Press Enter use the up/down keys to select desired flash settings. Press Enter to confirm the settings. Fade Scroll This function allows you to fade the LED’s on the whole module from one color to another. Press Enter use the up/down keys to select desired fade speed settings.
  • Page 10: Rigging The Fixture

    Rigging the fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4.
  • Page 11: Warranty Information

    Warranty Information Limited Warranty Unless otherwise stated, your product is covered by a one year parts and labor limited warranty. Dichroic filters and glass gobos are not guaranteed against breakage or scratches to coating. It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and dealer or distributor.
