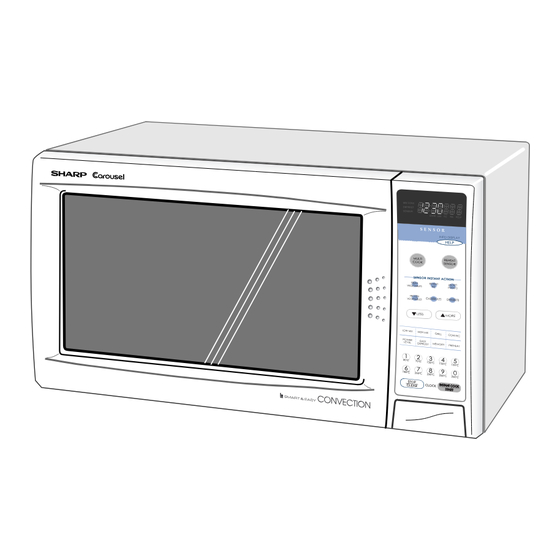

Sharp R-980J Service Manual

Convection microwave oven
Hide thumbs

Advertisement

CAUTION, MICROWAVE RADIATION .............................................................................................................. 1
WARNING ........................................................................................................................................................... 1
PRODUCT SPECIFICATIONS .......................................................................................................................... 2
GENERAL INFORMATION ................................................................................................................................. 2
APPEARANCE VIEW ........................................................................................................................................ 3
OPERATION SEQUENCE ................................................................................................................................. 4
FUNCTION OF IMPORTANT COMPONENTS ................................................................................................. 7
SERVICING ..................................................................................................................................................... 10
TEST PROCEDURE ......................................................................................................................................... 12
TOUCH CONTROL PANEL ASSEMBLY ......................................................................................................... 20
COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE ............................................................ 26
MICROWAVE MEASUREMENT ..................................................................................................................... 31
WIRING DIAGRAM .......................................................................................................................................... 32
PICTORIAL DIAGRAM .................................................................................................................................... 34
CONTROL PANEL CIRCUIT ............................................................................................................................ 35
PRINTED WIRING BOARD .............................................................................................................................. 36
PARTS LIST .................................................................................................................................................... 37
SERVICE MANUAL
MIX CONV
DEFROST
SENSOR
COOK LBS
OZ
KG
HELP
MODEL
INSTAN T COOK
INST
ANT COOK
ST STAR
ART
In interests of user-safety the oven should be restored to its original
condition and only parts identical to those specified should be used.

TABLE OF CONTENTS

SHARP CORPORATION
CONVECTION
MICROWAVE OVEN
R-980J
R-980J
