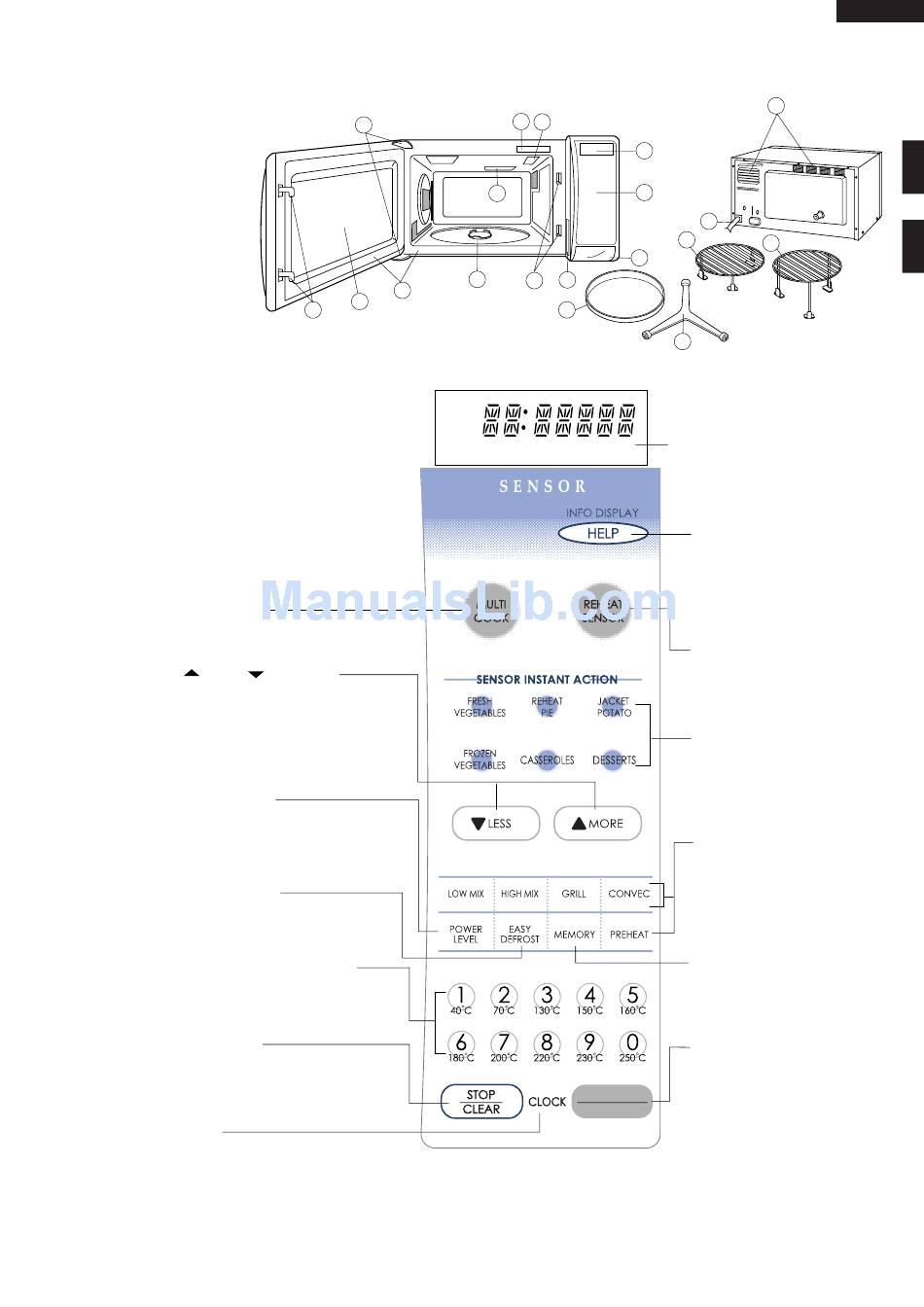

Appearance View - Sharp R-980J Service Manual

1. Ventilation opening
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seal and sealing
surfaces
7. Door open button
8. Touch control panel
9. Digital readout
10. Wave guide cover
11. Coupling
12. Menu label
13. Rating label
14. low rack
15. High rack
16. Power supply cord
17. Turntable
18. Roller stay
MULTI COOK PAD
Press to select Multi Cook mode.
MORE ( ), LESS (
Press to increase/decrease the time in
one minute increments during cooking or
to alter the doneness for the Sensor In-
stant Action, Reheat Sensor, Multi Cook
or Easy Defrost modes.
POWER LEVEL PAD
Press to select microwave power setting.
If not pressed, HIGH is automatically se-
lected.
EASY DEFROST PAD
Press to defrost meat by entering weight
only.
NUMBER AND TEMPERATURE PADS
Press to enter cooking times, clock time, con-
vection temperature or to select the Multi
Cook menus.
STOP/CLEAR PAD
Press to clear during programming.
Press once to stop operation of oven dur-
ing cooking; press twice to cancel cook-
ing program.
CLOCK PAD
Press to set Clock
NOTE:
Some one-touch cooking features such as "INSTANT COOK" are disabled after one minute when the oven is
not in use. These features are automatically enabled when the door is opened and closed or the STOP/ CLEAR
pad is pressed.

APPEARANCE VIEW

3
6
5
4
) PADS
12
2
10
11 13
4
17
TOUCH CONTROL PANEL
MIX CONV
DEFROST
SENSOR
COOK KG
INSTANT COOK INST ANT COOK
START
3
1
9
8
16
14
15
7
18
Indicator
HELP
HELP PAD
Press to select auto start, in-
formation guide on/off, child
lock, demonstration modes or
info on pad.
Press to get cooking informa-
tion.
REHEAT SENSOR PAD
Press to select 3 popular Reheat
menu.
SENSOR INSTANT ACTION
PADS
Press once to cook or reheat 6
popular menus. (See NOTE)
CONVECTION
FUNCTION PADS
Press to cook for each func-
tion.
MEMORY PAD
Press to enter the frequently
used cooking program.
Press to recall the memorized
program.
INSTANT COOK/START PAD
Press once to cook for 1 minute
at HIGH or increase by 1 mi-
nute multiples each time this
pad is pressed during Micro-
wave, Convection, Grill or Mix
cooking. (See NOTE)
R-980J
COOKING
