Summary of Contents for EdgeStar CWF340DZ

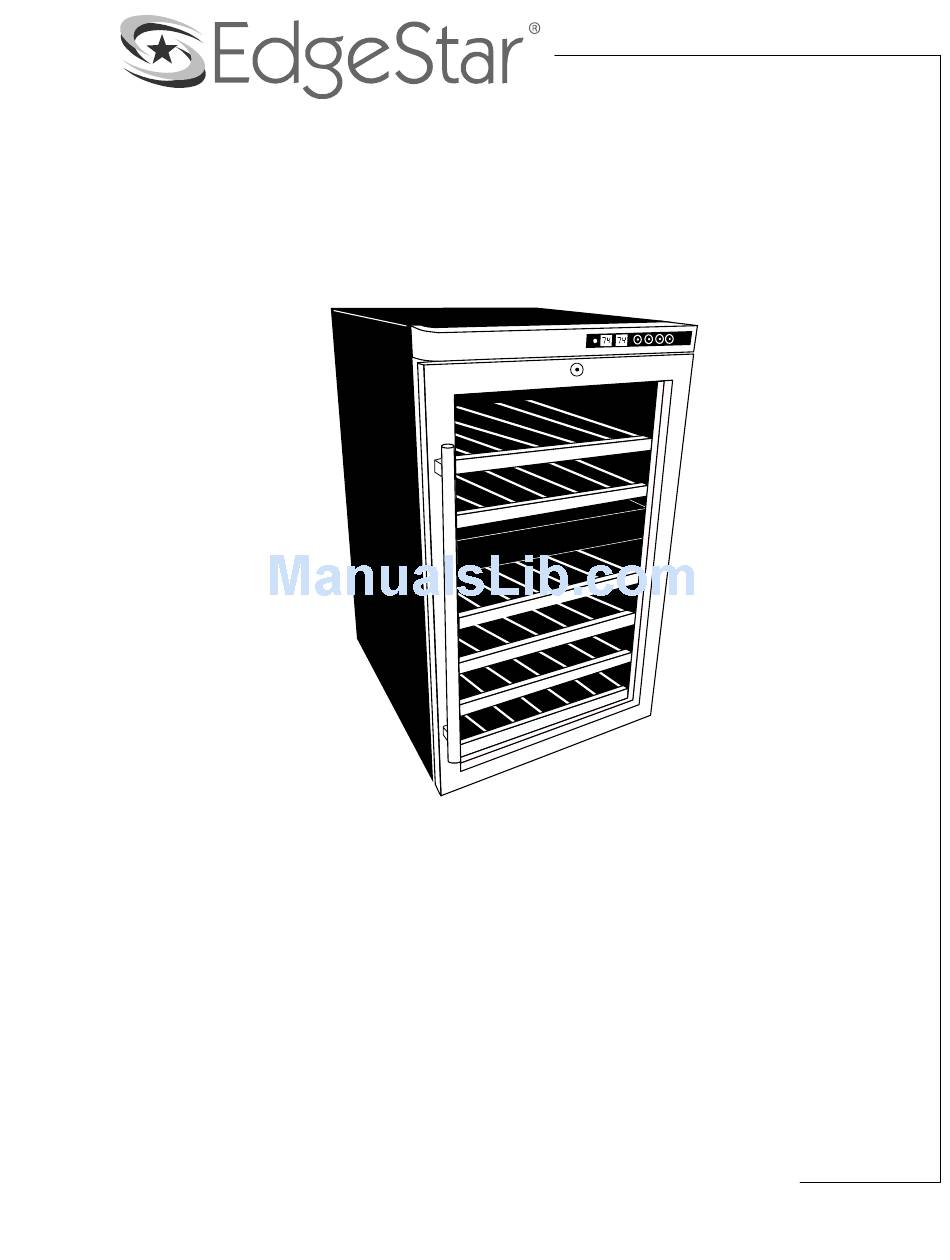

- Page 1 Freestanding Wine Refrigerator CWF340DZ Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar wine refrigerator and/or injury to the user. This wine refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. -
Page 3: Table Of Contents
................. 12 ROUBLESHOOTING CONTINUED SPECIFICATIONS ....................13 EDGESTAR LIMITED WARRANTY ..............14 First Time Operating Instructions Before use, make sure all packaging labels and materials are all removed from the unit. Be sure to keep track of all included parts and pieces before discarding packaging materials. -
Page 4: Introduction
Introduction Thank you for purchasing this EdgeStar wine refrigerator. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
Lower Zone Stainless Steel Door Frame Handle Back View Product Label Tip: Gather the model and serial number from the product label and write them down before installing the wine refrigerator. Power Cord Power Plug Cabinet EdgeStar Wine Refrigerator... -
Page 6: Installing The Wine Refrigerator
Installing the Wine refrigerator The wine refrigerator should be installed in accordance with local electrical code requirements. The wine refrigerator should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. -
Page 7: Electrical Requirements
Turn the leveling feet to the left to raise that side of the refrigerator. IMPORTANT: Once you are ready to install it in a cabinet or directly on the floor, you must adjust the feet to level the wine refrigerator. EdgeStar Wine Refrigerator... -
Page 8: Installing The Door Handle
Installing the Door Handle To install the door handle: 1. Open the door and carefully pull the door gasket around the area where the handle is to be installed. 2. Carefully remove the two pre-installed decorative plugs from the front of the door. -
Page 9: Reversing The Door Swing
5. Screw the door shaft at the opposite designated holes of the upper hinge. Place the spring washer and screw the hexagonal-nut. Turn over to install the stainless steel top insert. EdgeStar Wine Refrigerator... -
Page 10: Reversing The Door Swing Continued
Reversing the Door Swing Continued 6. Remove the front leveling leg from the left bottom corner of the cabinet then install and tighten it in the right side of the cabinet. 7. Turn the glass door 180°. Locate the glass door to the designated position making sure that the door shaft enters the door hole at the left upper corner of the glass door. -
Page 11: Operation
The Celsius or Fahrenheit light will be lit depending on what scale temperature is being displayed. To switch between C and F, press and hold the buttons at the same time for approximately 5 seconds until the temperature scale changes. EdgeStar Wine Refrigerator... -
Page 12: Bottle Positioning
Bottle Positioning Full shelf – 6 bottles Note: The upper zone contains two full shelves. The lower zone contains two full shelves and two half shelves Half shelf – 5 bottles... -
Page 13: Normal Sounds
• Never unplug the unit by removing the door to prevent a child from being trapped inside the pulling on the plug. cooler! EdgeStar Wine Refrigerator... -
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. Exterior Cleaning The door and cabinet may be cleaned with a mild detergent and lukewarm water solution such as 2 tablespoons of baking soda to 1 quart of water. -
Page 15: Troubleshooting Continued
The door gasket is dirty. Clean the door gasket. The door will not shut properly. The door gasket is not Make sure the door gasket is properly installed. installed correctly. The shelves are incorrectly Correctly install the shelves. installed. EdgeStar Wine Refrigerator... -
Page 16: Specifications
Specifications Description of product Freestanding Wine Refrigerator Model CWF340DZ Voltage/Frequency AC 115V~60Hz Amperage 1.8A Input Power 130W Color Black Cabinet; Stainless Steel Door Storage Capacity 34 Bottles* Refrigerant R134a, 1.8 oz. Temperature Range 40 - 65ºF 33 1/8” x 19 7/16” x 23 1/16”... -
Page 17: Edgestar Limited Warranty
EdgeStar authorized repair facility. PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. - Page 18 Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2011 Living Direct, Inc. All rights reserved.
