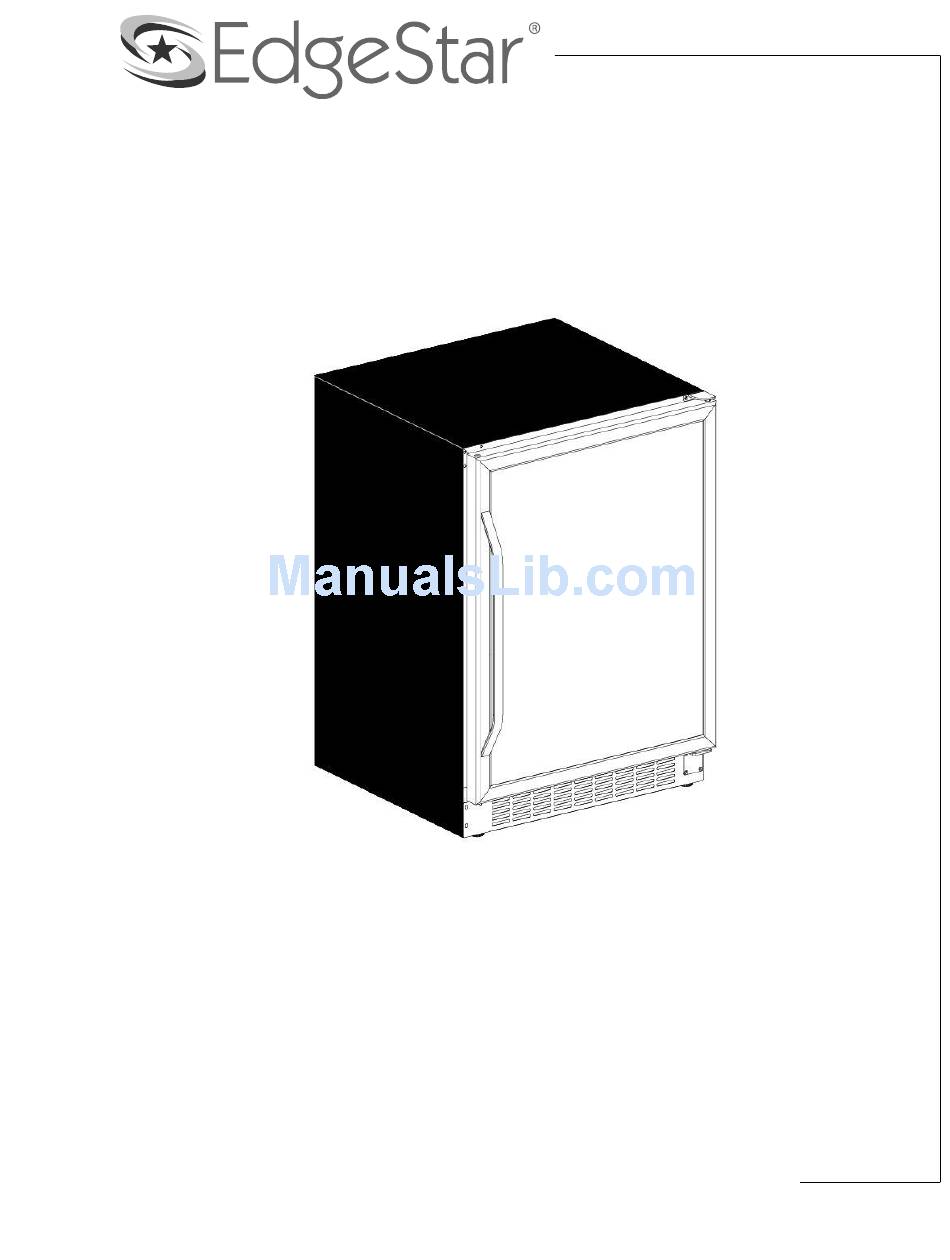

- Page 1 Wine Refrigerator CWR531SZ Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar wine refrigerator and/or injury to the user. This wine refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. -
Page 3: Table Of Contents
The instruction manual should be read before use. This owner’s manual is provided for reference use only. Specifications may change without prior notice. Refer to the product label on the back of your wine refrigerator for the latest technical information. EdgeStar Wine Refrigerator... -
Page 4: Introduction
Introduction Thank you for purchasing this EdgeStar wine refrigerator. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
Front Vent regular replacement every 3 months is ideal. Leveling foot Back View Product Label Tip: Gather the model and serial number from the product label and write them down before installing the wine refrigerator. Power Plug Cabinet EdgeStar Wine Refrigerator... -
Page 6: Installing The Wine Refrigerator
Installing the Wine refrigerator The wine refrigerator should be installed in accordance with local electrical code requirements. The wine refrigerator should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. -
Page 7: Installation Clearance Requirements
See the “Leveling the Wine refrigerator” section. • A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with National Electrical Code and local codes and ordinances is required. EdgeStar Wine Refrigerator... -
Page 8: Electrical Requirements
Electrical Requirements ELECTRIC SHOCK HAZARD! Plug into a grounded 3-prong outlet. Never remove the grounding prong from the plug. Never use an adapter to bypass the grounding prong. DO NOT use an extension cord. Failure to follow these instructions can result in fire, electrical shock, or death. -
Page 9: Installing The Door Handle
3. Pull the shelf forward until the notch aligns with the plastic post on each side of the shelf track. 4. Lift the shelf until both notches pass through the posts. 5. Continue to pull the shelf forward until it is completely removed from the inner compartment. EdgeStar Wine Refrigerator... -
Page 10: Reversing The Door Swing
Reversing the Door Swing Follow the instructions below to reverse the door swing. IMPORTANT: Before you begin, unplug the refrigerator. To reverse the door from right swing to left swing: 1. Open the door and using a Phillips screwdriver, remove the bottom screws from the lower hinge. -
Page 11: Removing And Installing Decorative Plugs
4. Remove the decorative plastic cap from the top left corner of the door and insert it onto the right top corner. 5. After the cap is inserted carefully press the door gasket into its original position. EdgeStar Wine Refrigerator... -
Page 12: Operation
OPERATION Installation Check List before Operation 1. Have all packing materials and tape been removed from the interior and exterior of the wine refrigerator? 2. Have the installation instructions been followed, including connecting the machine to electricity? And has proper grounding been installed for the wine refrigerator? 3. -
Page 13: Normal Sounds
• Never unplug the unit by removing the door to prevent a child from being trapped inside the pulling on the plug. cooler! EdgeStar Wine Refrigerator... -
Page 14: Cleaning And Maintenance
CLEANING AND MAINTENANCE Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. Exterior Cleaning The door and cabinet may be cleaned with a mild detergent and lukewarm water solution such as 2 tablespoons of baking soda to 1 quart of water. -
Page 15: Troubleshooting Continued
The door gasket is dirty. Clean the door gasket. The door will not shut properly. The door gasket is not Make sure the door gasket is properly installed. installed correctly. The shelves are incorrectly Correctly install the shelves. installed. EdgeStar Wine Refrigerator... -
Page 16: Specifications
Specifications Description of product Built-in Wine refrigerator Model CWR531SZ Voltage/Frequency AC 115V~60Hz Amperage 1.8A Input Power 130W Color Black Cabinet; Stainless Steel Door Storage Capacity 53 Bottles* Refrigerant R134a, 1.84 oz. Temperature Range 40 - 65ºF 33 1/2” x 23 1/2” x 22 1/2”... - Page 17 Once an EdgeStar authorized representative has confirmed that your product is defective and eligible for warranty service, the product must be returned to an EdgeStar authorized repair facility. EdgeStar is not responsible for damage resulting from shipper mishandling or improper packaging. Do not return a defective product to the place of purchase.
- Page 18 Web: http://www.edgestar.com E-mail: service@edgestar.com Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2013 Living Direct, Inc. All rights reserved.
