Summary of Contents for EdgeStar CWR361FD

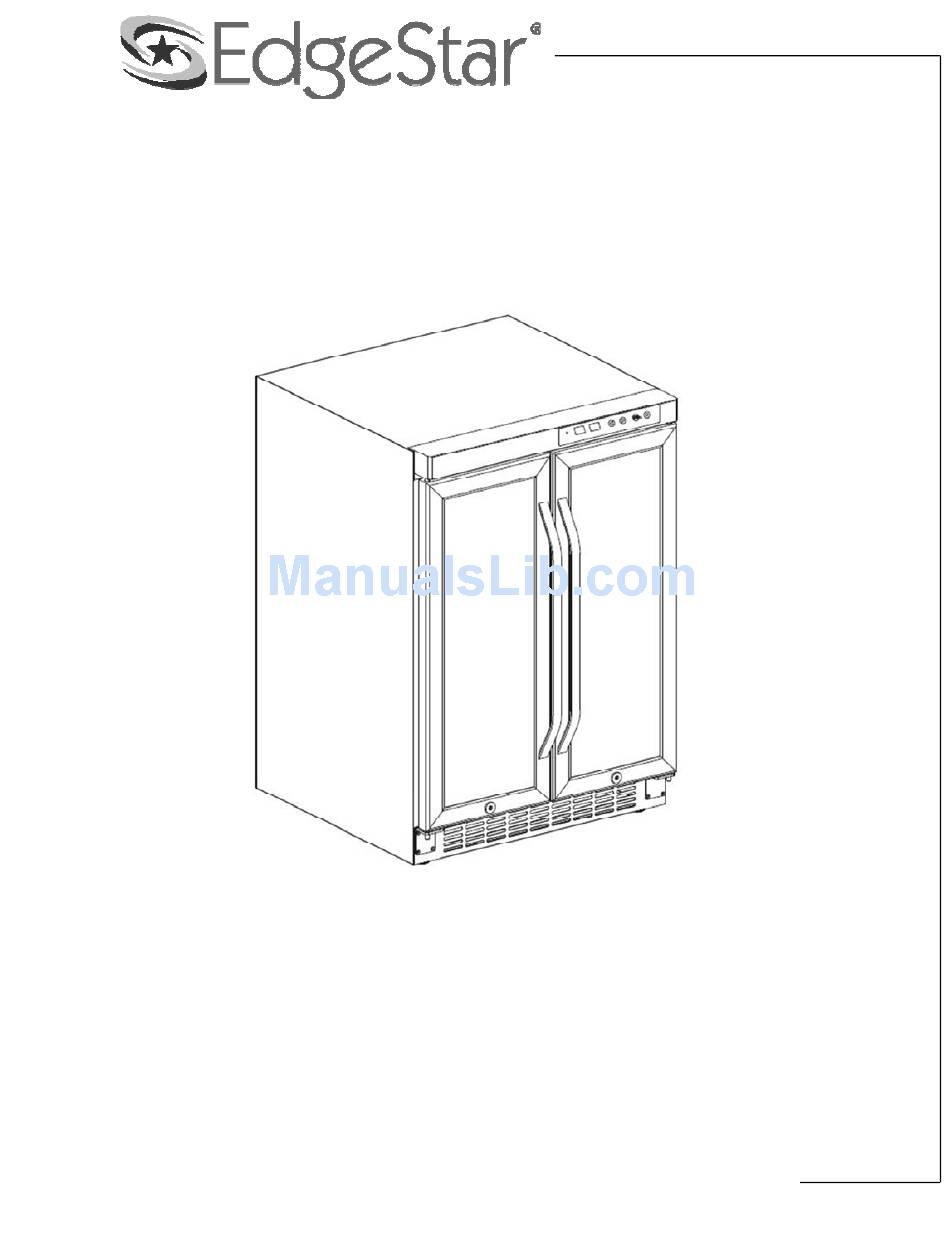

- Page 1 Built-in Wine Refrigerator CWR361FD Owner’s Manual For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
Important Safety Information Improper handling can cause serious damage to the EdgeStar wine refrigerator and/or injury to the user. This wine refrigerator is designed for domestic indoor use only. Do not use the unit for industrial or commercial use. Any other use may invalidate the warranty. -
Page 3: Table Of Contents
SPECIFICATIONS ....................11 EDGESTAR LIMITED WARRANTY ..ERROR! BOOKMARK NOT DEFINED. First Time Operating Instructions Before use, make sure all packaging labels and materials are all removed from the unit. Be sure to keep track of all included parts and pieces before discarding packaging materials. -
Page 4: Introduction
Introduction Thank you for purchasing this EdgeStar wine refrigerator. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
3 months is Front vent ideal. Leveling foot Back View Product Label Tip: Gather the model and serial number from the product label and write them down before installing the wine refrigerator. Power Plug Cabinet EdgeStar Wine Refrigerator... -
Page 6: Installing The Wine Refrigerator
Installing the Wine Refrigerator The wine refrigerator should be installed in accordance with local electrical code requirements. The wine refrigerator should also be placed in a location that is strong enough to support its total weight, keeping in mind that it will weigh substantially more when fully loaded than when empty. -
Page 7: Installation Clearance Requirements
See the “Leveling the Wine refrigerator” section. • A standard electrical supply (115 VAC only, 60 Hz), properly grounded in accordance with National Electrical Code and local codes and ordinances is required. EdgeStar Wine Refrigerator... -
Page 8: Electrical Requirements
Electrical Requirements ELECTRIC SHOCK HAZARD! Plug into a grounded 3-prong outlet. Never remove the grounding prong from the plug. Never use an adapter to bypass the grounding prong. DO NOT use an extension cord. Failure to follow these instructions can result in fire, electrical shock, or death. -
Page 9: Installing The Door Handle
3. Pull the shelf forward until the notch aligns with the plastic post on each side of the shelf track. 4. Lift the shelf until both notches pass through the posts. 5. Continue to pull the shelf forward until it is completely removed from the inner compartment. EdgeStar Wine Refrigerator... -
Page 10: Operation
OPERATION Using the Temperature Control Panel Use the left button to adjust the left zone’s temperature, and use the right button to adjust the right zone’s temperature. The temperature displayed can be in Fahrenheit or Celsius. This wine cooler has a temperature range from 40°F to 65°F for the both zones This wine cooler has two displays, an Left Zone Display that shows the temperature in the left section, and a Right Zone Display that shows the... -
Page 11: Normal Sounds
• Never unplug the unit by removing the door to prevent a child from being trapped inside the pulling on the plug. cooler! EdgeStar Wine Refrigerator... -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE Periodic cleaning and proper maintenance will ensure efficiency, top performance, and long life. Exterior Cleaning The door and cabinet may be cleaned with a mild detergent and lukewarm water solution such as 2 tablespoons of baking soda to 1 quart of water. -
Page 13: Troubleshooting Continued
The door gasket is dirty. Clean the door gasket. The door will not shut properly. The door gasket is not Make sure the door gasket is properly installed. installed correctly. The shelves are incorrectly Correctly install the shelves. installed. EdgeStar Wine Refrigerator... -
Page 14: Specifications
Specifications Description of product Built-in Wine Refrigerator Model CWR361FD Voltage/Frequency AC 115V~60Hz Amperage 1.2A Input Power 120W Color Black Cabinet; Stainless Steel Doors Storage Capacity 36 Bottles* Refrigerant R134a, 2.12 oz. Temperature Range 40 - 65ºF (Both Zones) Dimensions 34 1/8” x 23 1/2” x 24 3/8”... - Page 15 Once an EdgeStar authorized representative has confirmed that your product is defective and eligible for warranty service, the product must be returned to an EdgeStar authorized repair facility. EdgeStar is not responsible for damage resulting from shipper mishandling or improper packaging. Do not return a defective product to the place of purchase.
- Page 16 Register your product, download owner’s manuals, access additional troubleshooting resources, and obtain more information on other great EdgeStar products on the web at: http://www.edgestar.com Product contents and specifications may change without notice. Copyright © 2011 Living Direct, Inc. All rights reserved.
