Bell View Video Entry System 1 Way

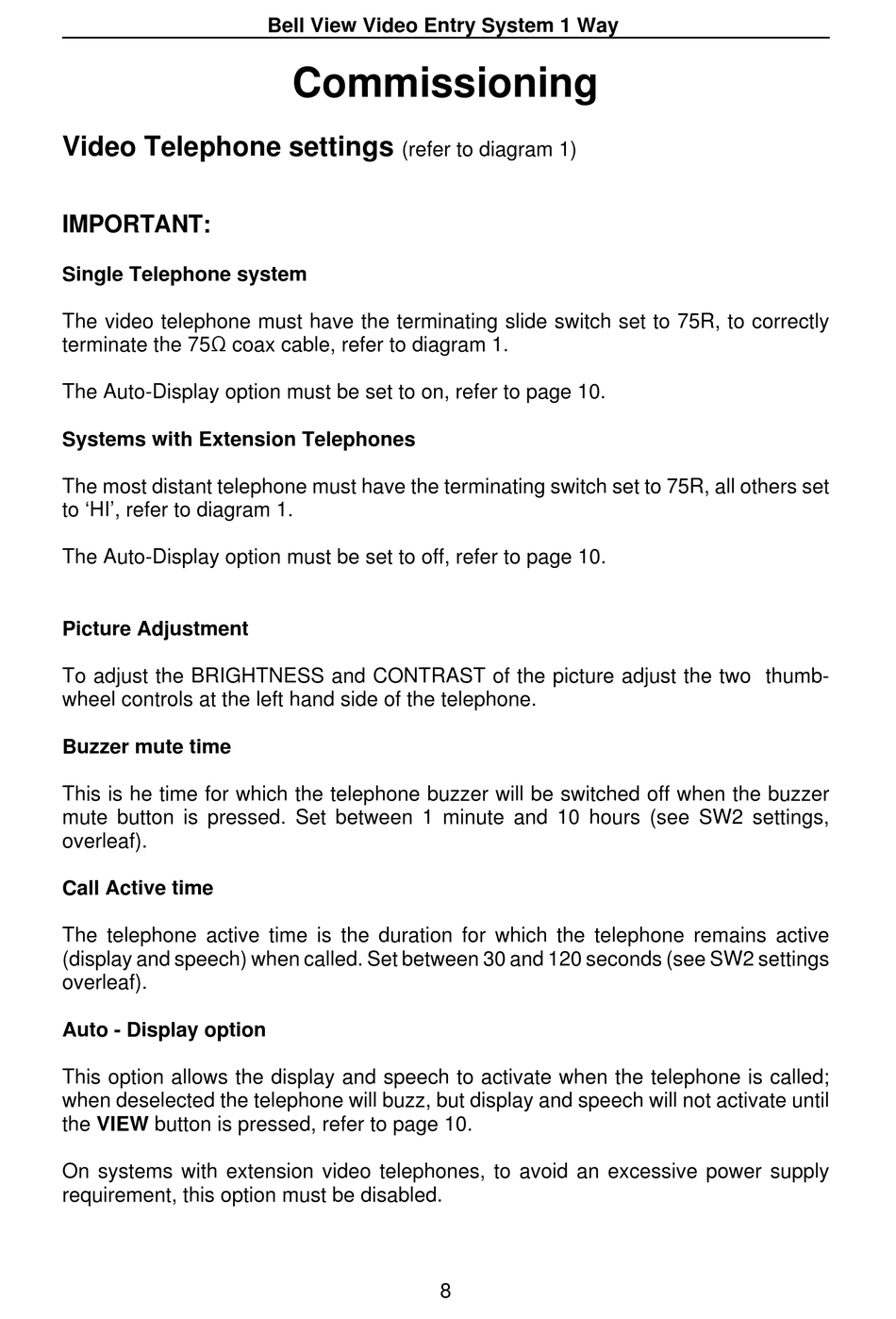

Commissioning

Video Telephone settings

(refer to diagram 1)
IMPORTANT:
Single Telephone system
The video telephone must have the terminating slide switch set to 75R, to correctly
terminate the 75S coax cable, refer to diagram 1.
The Auto-Display option must be set to on, refer to page 10.
Systems with Extension Telephones
The most distant telephone must have the terminating switch set to 75R, all others set
to 'HI', refer to diagram 1.
The Auto-Display option must be set to off, refer to page 10.

Picture Adjustment

To adjust the BRIGHTNESS and CONTRAST of the picture adjust the two thumb-
wheel controls at the left hand side of the telephone.

Buzzer mute time

This is he time for which the telephone buzzer will be switched off when the buzzer
mute button is pressed. Set between 1 minute and 10 hours (see SW2 settings,
overleaf).

Call Active time

The telephone active time is the duration for which the telephone remains active
(display and speech) when called. Set between 30 and 120 seconds (see SW2 settings
overleaf).
Auto - Display option
This option allows the display and speech to activate when the telephone is called;
when deselected the telephone will buzz, but display and speech will not activate until
the VIEW button is pressed, refer to page 10.
On systems with extension video telephones, to avoid an excessive power supply
requirement, this option must be disabled.
8
