- Page 1 ELECTRIC TILE CUTTER ELECTRIC TILE CUTTER Model No. ETC180 Part Nos. 3400740 OPERATING & MAINTENANCE INSTRUCTIONS 0601...

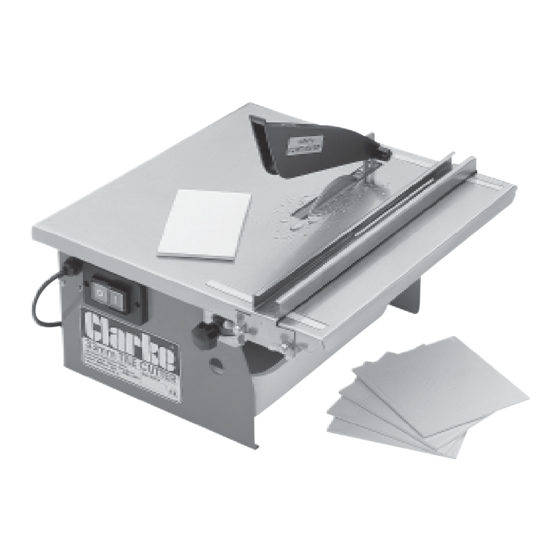

- Page 2 Thank you for purchasing this Clarke Tile Cutting Machine. The ETC180 tile cutter incorporates a 180mm sintered diamond cutting disk and will make straight cuts on tiles with a maximum cutting depth of 33mm. The table may be tilted so that tiles may be cut to any angle up to 45 degrees.
- Page 3 ALWAYS use a Clarke face mask to prevent inhalation of any dust which may be present. ALWAYS turn off the power supply before making any adjustments to the machine.
- Page 4 ELECTRICAL CONNECTIONS. WARNING! If the power cable is worn or cut, or damaged in any way, have it replaced immediately to avoid shock or fire hazard. Connect the mains lead to a 230 volt (50Hz) domestic electrical supply via a standard 13 amp BS 1363 plug fitted with a 13 amp fuse, or a suitably fused isolator switch.
- Page 5 INSTALLATION Provision is made so that the Tile Cutter may be semi-permanently fixed to a workbench or table, using suitable bolts in the two slotted holes in the base of the machine. If a permanent location is not feasible or desirable, always ensure its temporary location is flat and even and at a convenient height with adequate light.
-
Page 6: Declaration Of Conformity
CHANGING THE CUTTING DISK Ensure that the machine is switched off and disconnected from the mains. First remove the water trough, then remove the two screws securing the cutting disk cover, beneath the table, and withdraw the cover. Retain the plastic Splash Guard, which is secured by the same screws. - Page 7 PARTS LIST AND DIAGRAM No. Description Part No. Description Part No. Cabinet TMCETC716 Parallel Fence TMCETC701 Switch Box Cover TMCETC717 Clamp TMCETC702 Switch Assembly TMCETC718 Lock Knob TMCETC703 Terminal Block TMCETC733 Cutting Disk Cover TMCETC704 Cable Clamp TMCETC734 Screw TMCETC705 Terminal Base TMCETC735 Lock Washer...
