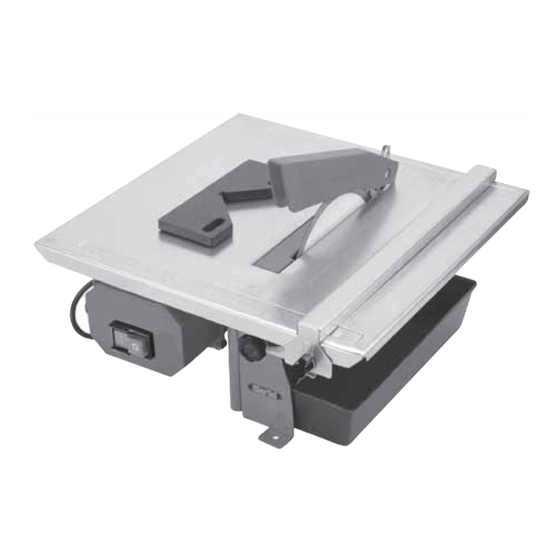

- Page 1 ELECTRIC TILE CUTTER ELECTRIC TILE CUTTER Model No. ETC6 Part No. 3400500 OPERATING & MAINTENANCE INSTRUCTIONS 0305...
- Page 2 Thank you for purchasing this Clarke Tile Cutting Machine. The ETC6 tile cutter incorporates a 180mm sintered diamond cutting disk and will make straight cuts on tiles with a maximum cutting depth of 38mm. The table may be tilted so that tiles may be cut to any angle up to 45 degrees.
- Page 3 ALWAYS use a Clarke face mask to prevent inhalation of any dust which may be produced. ALWAYS disconnect from the power supply before making any adjustments to the machine.
- Page 4 ELECTRICAL CONNECTIONS. WARNING! If the power cable is worn or cut, or damaged in any way, have it replaced immediately to avoid shock or fire hazard. Connect the mains lead to a 230 volt (50Hz) domestic electrical supply via a standard 13 amp BS 1363 plug fitted with a 13 amp fuse, or a suitably fused isolator switch.
- Page 5 INSTALLATION Provision is made so that the Tile Cutter may be semi-permanently fixed to a workbench or table, using suitable bolts in the two holes in the base of the machine. If a permanent location is not feasible or desirable, always ensure its temporary location is flat and even and at a convenient height with adequate light.
-
Page 6: Declaration Of Conformity
CHANGING THE CUTTING DISK Ensure that the machine is switched off and disconnected from the mains. First remove the water trough, then remove the two screws securing the cutting disk cover, beneath the table, and withdraw the cover. The drive shaft has two flats milled on its end, allowing a spanner (supplied) to be used to hold the shaft whilst undoing the disk securing nut, again using the spanner supplied. - Page 7 PARTS LIST AND DIAGRAM No. Description Part No. Description Part No. Motor Complete RWETC601 Switch Box (Inner) RWETC616 Tubular Frame RWETC602 Gasket RWETC617 Table RWETC603 Capacitor RWETC618 Tile Guide Knob RWETC604 Cable loom RWETC619 Table Adjuster Knob RWETC605 Switch RWETC620 Blade Guard Support RWETC606 Switch Box (Outer)
