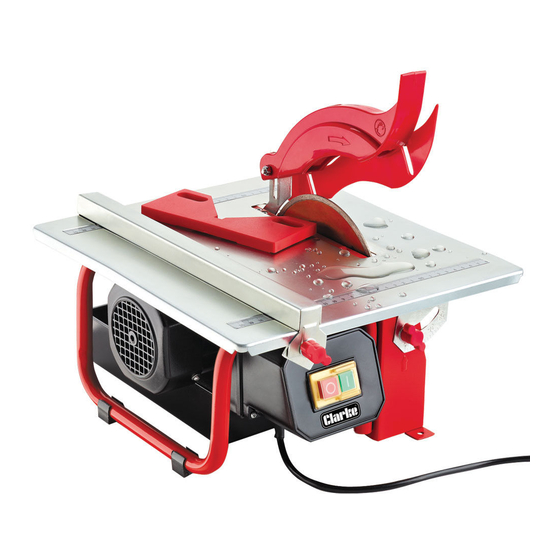

- Page 1 ELECTRIC TILE CUTTER MODEL NO: ETC8 PART NO: 3400515 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC1020 - REV 1...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Electric tile cutter. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING: READ ALL INSTRUCTIONS. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND/ OR SERIOUS INJURY. THE TERM “POWER TOOL” IN THE WARNINGS REFERS TO YOUR SAW. 1) WORK AREA SAFETY 1. - Page 4 under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. 2. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, gloves, non-skid safety shoes, hard hat, protective apron and hearing protection used for appropriate conditions will reduce personal injuries.
- Page 5 15. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. 5) SERVICING 1.
-
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE HEATER TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 7: Fitting The Blade Guard
ASSEMBLY WARNING: BEFORE USING YOUR TILE CUTTER BE SURE TO READ THE INSTRUCTION MANUAL CAREFULLY. FITTING THE BLADE GUARD 1. Loosen the two table securing knobs (Front and rear of the unit). 2. Tilt the table. 3. Slide the blade guard into position as shown and secure using the blade guard locking screws. -
Page 8: Operation
OPERATION WARNING: BEFORE USING YOUR TILE CUTTER BE SURE TO READ THE INSTRUCTION MANUAL CAREFULLY. THE WATER Position the tray as shown and fill 3/4 full with water. • Do not add chemicals or detergents to the water. • Always maintain this level (3/4 full) to ensure that there is sufficient water in the tray for dust suppression and cooling. -
Page 9: Starting And Stopping
STARTING AND STOPPING Press the ON Button (marked “I“) to start the tile cutter. • Allow the tile cutter to reach full speed before cutting any tiles. Press the OFF Button (marked “O“) to stop the tile cutter. NOTE: The disc will continue to rotate for some time after switching off. -
Page 10: Changing The Cutting Disc
WARNING: BEFORE STARTING ANY CLEANING OR MAINTENANCE PROCEDURES, DISCONNECT THE PLUG FROM MAINS SUPPLY. • Replacement discs are available from your Clarke dealer. • Only use discs with a diameter of 180 mm. • The replacement discs speed rating must meet or exceed the RPM rating of the tile cutter. -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
