4.
Securely plug each cable end into each connector and then fasten with the built-in clamps
or screws.
5.
The order of the SCSI devices to be connected can be changed. Be sure to assign a
unique SCSI ID address to each device on your SCSI chain. The last device in the SCSI
chain must be terminated. Proceed to the next two sections "SCSI Addressing" and "SCSI
Termination" for more information.

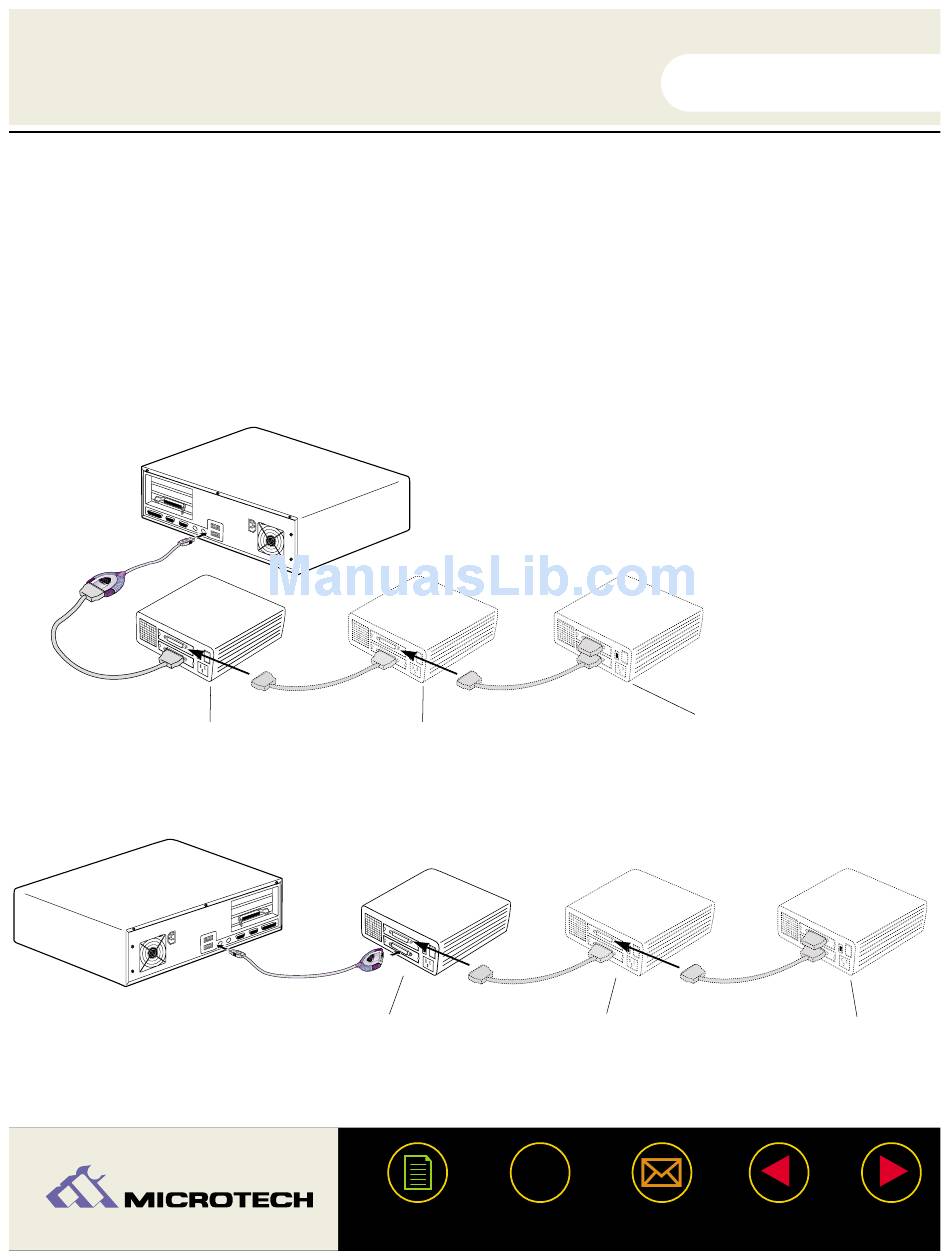

USB-SCSI-DB25 Example Connection
First SCSI device
connected to USB-SCSI-DB25
via an additional SCSI cable.
USB-SCSI-HD50 Example Connection
22
Additional SCSI device
connected via an additional
SCSI cable.
USB-SCSI-HD50
connects directly to the
first SCSI device.
CONTENTS
Additional SCSI device
connected via an additional
SCSI cable.
?
HELP
CONTACT
USB XpressSCSI
Additional SCSI device
connected via an additional SCSI
cable. The last device in a SCSI
chain must be terminated.
Additional SCSI device connected via
an additional SCSI cable. The last device
in a SCSI chain must be terminated.
