Installation Overview
The USB XpressSCSI is relatively easy to install and operate. To avoid complications during the
installation process, please follow the steps in order as described in this chapter.
Connecting a SCSI Device
Microtech includes accessories to help make setup as convenient and hassle free as possible.
The SCSI connector on your USB XpressSCSI model may or may not be the appropriate SCSI
connector to use in your system configuration (depending on the type of connectors on your
SCSI device(s) and the type of USB XpressSCSI you purchased). You may need to obtain an
adapter to properly connect the USB XpressSCSI to your SCSI device.
USB-SCSI-HD50 model
1.
Plug the male HD50 SCSI-2 connector of the USB XpressSCSI directly to the female
HD50 SCSI-2 connector at the rear of your SCSI device.
2.
Be sure the cable is securely attached to your SCSI device and then fasten with the built-
in locking clamps.

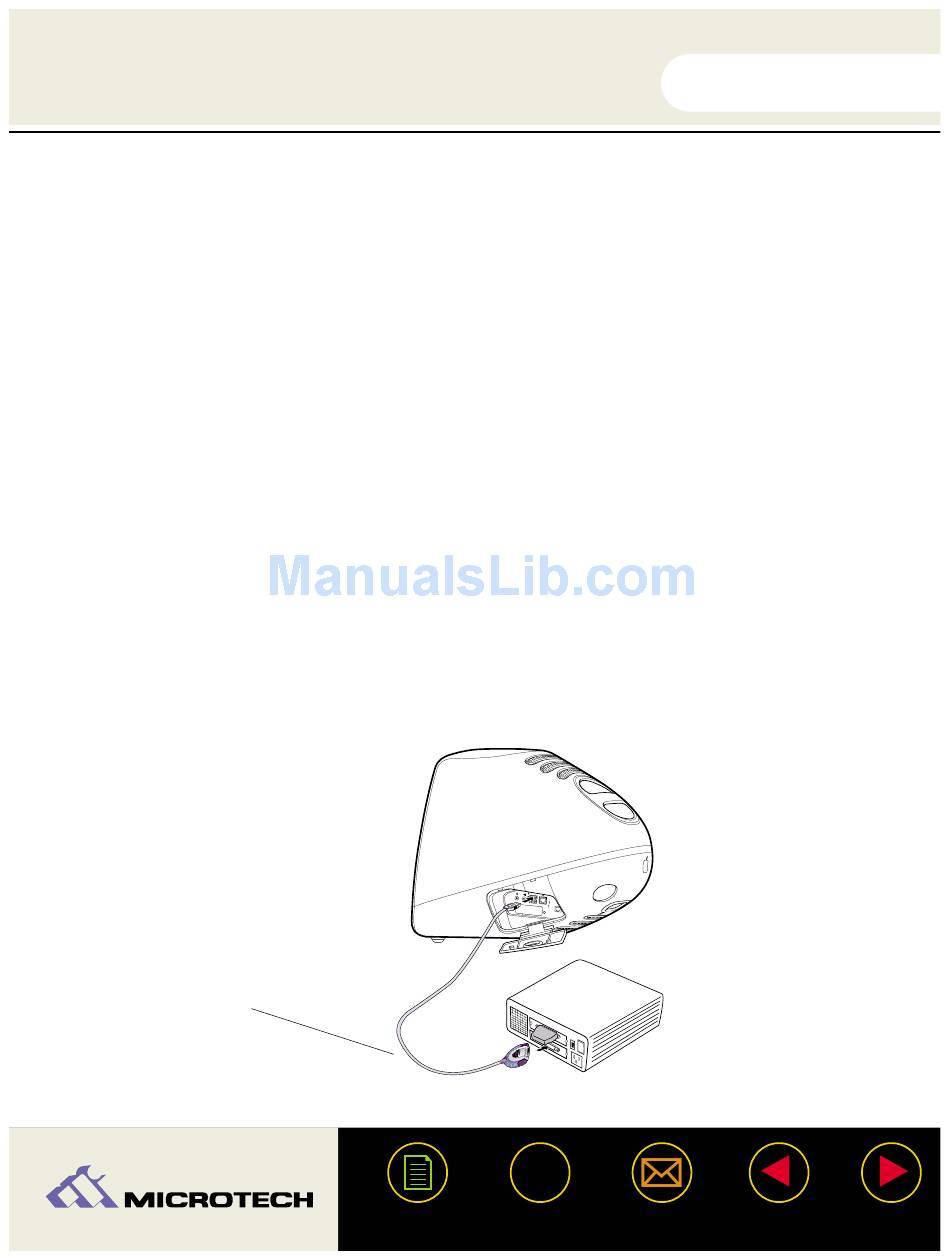

Plug the male HD50 connector of the
USB-SCSI-HD50 model directly to the
female HD50 connector on your SCSI
device.
