SPT SF-616 Instruction Manual

Evaporative swamp cooler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

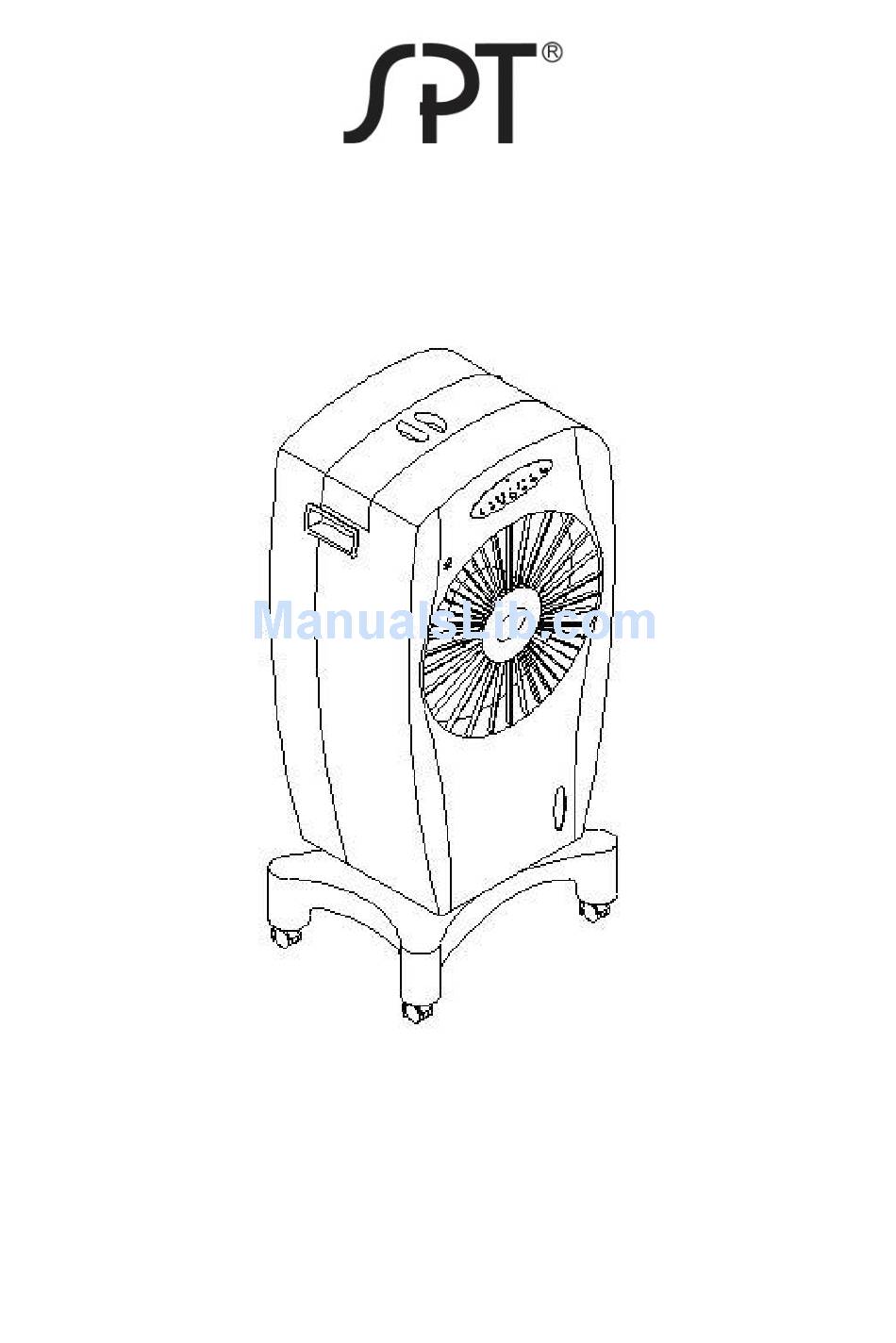

Instruction Manual
Evaporative Swamp Cooler
It is important that you read these
Model No. SF-616
instructions thoroughly before using
your new air cooler and we strongly
recommend that you keep them in a
safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-616 and is the answer not in the manual?

Questions and answers

Related Manuals for SPT SF-616

Summary of Contents for SPT SF-616

  • Page 1 Instruction Manual Evaporative Swamp Cooler It is important that you read these Model No. SF-616 instructions thoroughly before using your new air cooler and we strongly recommend that you keep them in a safe place for future reference.

  • Page 2: Table Of Contents

    CONTENTS TABLE OF CONTENTS ---------------------------------------------------- 1 A. PRODUCT INTRODUCTION --------------------------------------- 2 B. TECHNICAL PARAMETER ----------------------------------------- 2 C. CONTROL PANEL & CONSTRUCTION DIAGRAM ---------- 3 D. SELECTION OF FUNCTIONS -------------------------------- 4 ~ 5 E. CARE AND MAINTENANCE ----------------------------------- 5 ~ 6 F.

  • Page 3: Product Introduction

    A. PRODUCT INTRODUCTION SF-616 Air cooler is our latest design with microcomputer control system. It has device for storing water and ice. It can lower surrounding temperature, freshen the air with equipped Ionizer, humidify the air through the principle of water evaporation and melting ice.
  • Page 4 C. CONTROL PANEL, LCD DISPLAY AND CONSTRUCTION DIAGRAM 1. Control panel and functions (Same as remote controller) 2. Construction diagram.

  • Page 5: Selection Of Functions

    D. SELECTION OF FUNCTIONS 1. ON/OFF: Turns unit ON or OFF Press once to turn ON. Unit operates in default Low fan speed. Press again to turn OFF. 2. OSC (FLOW): Oscillation of louvers. Press once for louver oscillation. Green indicator light will illuminate. Press again for fixed air direction.

  • Page 6: Care And Maintenance

    6. MODE: Three types of computer-controlled airflow Unit powers on to default - Normal mode (no indicator lights on). Press once to operate in Natural mode (Natural indicator light on). Press again to operate in Sleep mode (Sleep indicator light on). Press again to return to Normal mode (no indicator lights on).

  • Page 7: Cautions

    Cleaning the Cooling Pad 1. After removing the filter, pull out cooling pad 2. Rinse under running water and place under sun to dry completely. 3. DO NOT use any detergents. Cleaning the Water Tank 1. Remove dust filter and cooling pad. 2.
  • Page 8 5. Keep a minimum space of 6 inches around the unit. 6. Suitable ambient temperature range is 68~104°F. The body of this Air Cooler should not be placed in area with extremely high or low temperature. When ambient temperature is high, change water frequently to prevent mildew and mold growth.

  • Page 9: Packing List

    G. PACKING LIST NAME QUANTITY Air Cooler Remote Controller Instructions Manual DEFECTIVE NOTICE If this product is defective or not working properly Please DO NOT return to your retail store Please contact us directly with any Service or Technical Assistance. Contact us toll free at: 1-800-330-0388...

  • Page 10: Warranty

    Your Guarantee If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms: Sunpentown must be notified of the fault.
