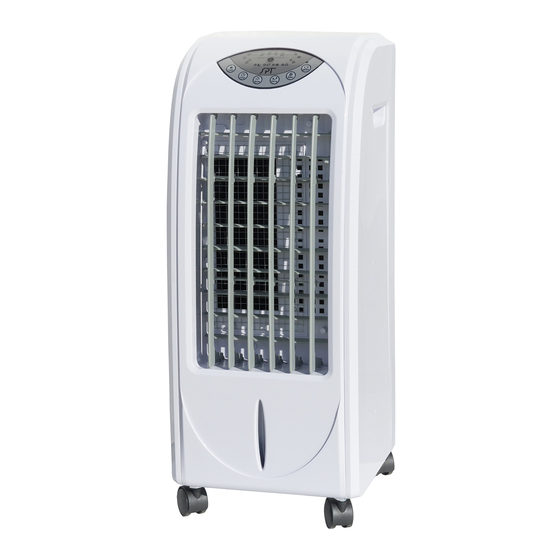

- Page 1 EVAPORATIVE AIR COOLER WITH HUMIDIFIER Model: SF-615H Instruction Manual Please read this manual thoroughly before using this product. Keep in a safe place for future reference.
-
Page 2: Table Of Contents
CONTENTS A. PRODUCT INTRODUCTION ………………………2 B. TECHNICAL PARAMETER ………………………2 C. CONSTRUCTION DIAGRAM ……………………..3 D. CONTROL PANEL & OPERATION …………….4-5 MODE SCHEMATICS …………………………..…6 E. MAINTENANCE AND STORAGE ………………..7 F. CAUTION ……………………………………………8 G. WARRANTY …………………………………………9... -
Page 3: Product Introduction
A. PRODUCT INTRODUCTION Equipped with water and ice storage locations, using the principle of water evaporation and melting ice, this Evaporative Air Cooler with Humidifier is an economical way to cool and humidity the surrounding air. Features LED display, remote control as well as dual-layer air filter: nylon filter and 3D Honeycomb cooling pad. -
Page 4: Construction Diagram
C. CONSTRUCTION DIAGRAM Control Handle Mist nozzle Air outlet Water level indicator Wheel Back Power cord Honeycomb Dust filter pad (behind filter) Water tank Drain outlet Remote Control The functions on the remote are the same as the control panel. -
Page 5: Control Panel & Operation
D. CONTROL PANEL & OPERATION ON/OFF button: Turns the unit on or off Indicator light illuminates when unit is plugged in. Unit operates in default High fan speed. SPEED button: Selects fan speed: Low – Medium – High. Corresponding indicator light will illuminate. SWING button: Starts/stops horizontal swing of vertical louvers Swing indicator light will illuminate. - Page 6 COOL button: Selects the cooling mode, corresponding indicator light(s) illuminates. If no indicator, unit is running fan only. = Evaporative cooling function = Evaporative cooling + humidifier function Note: Make sure water is added before turning on Cooling function. Unit cycles the water to blow cool, humidified air.
-
Page 7: Mode Schematics
Natural Mode Schematics High speed ： 2.5S 7.5S t=80sec Medium speed: 2.5S 2.5S 7.5S t=80sec Low speed ： 2.5S 2.5S 2.5S 7.5S 7.5S t=80sec Sleep Mode Schematics High speed ： 2.5S 7.5S t=80sec Medium speed ： 2.5S 2.5S 7.5S t=80sec Low speed ：... -
Page 8: Maintenance And Storage
E. MAINTENANCE AND STORAGE With use, the filter and honeycomb pad will become clogged with dust, which will greatly affect the unit’s performance. Sometimes mold and mildew may also occur, due to lack of water changes. It is recommended to clean the filter and honeycomb pad once every two weeks. 1. -
Page 9: Caution
F. CAUTIONS • Use correct power supply 120V / 60Hz. Plug into dedicated socket with minimum rating current of 3A. • After filling with water, do not tilt unit and avoid moving unit. Do not cover the unit. • Do not place any heavy objects on top of the air cooler. •... -
Page 10: Warranty
Your Guarantee If this product is found to be faulty as a result of faulty materials or workmanship within one year from date of purchase, it will be repaired free of charge. This guarantee is subject to the following terms: •...
