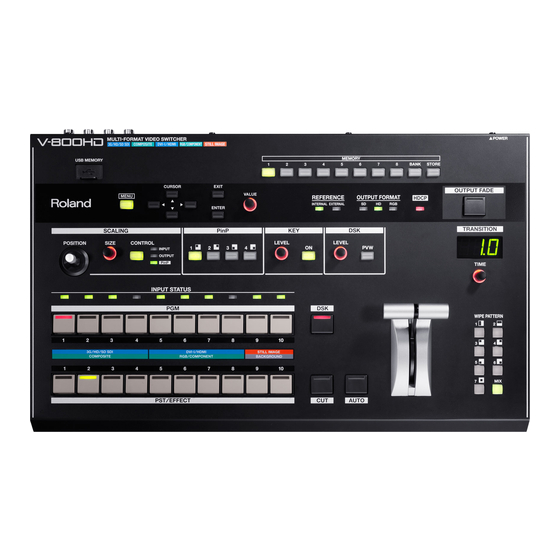

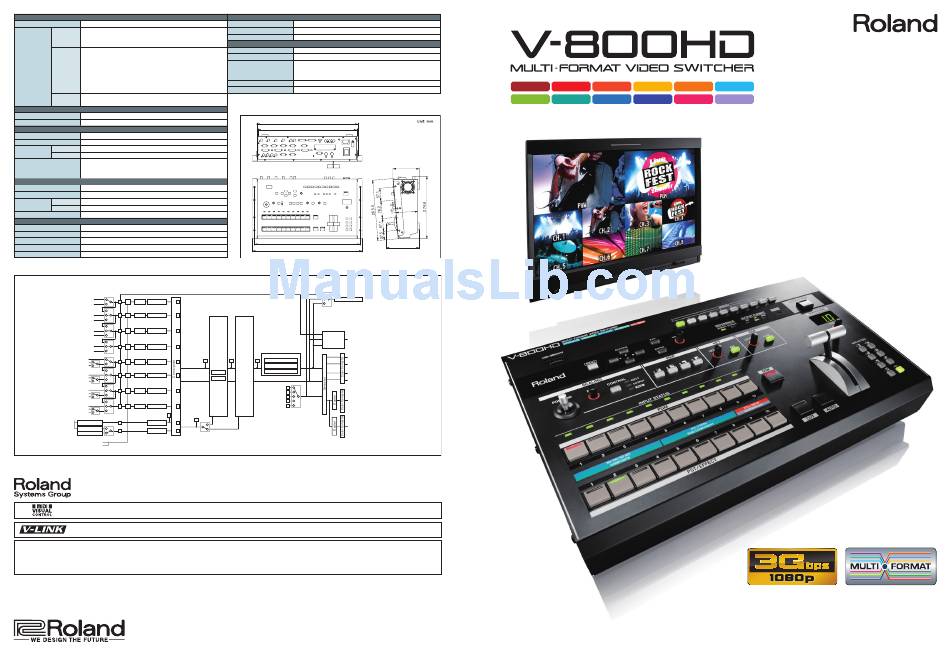

Roland V-800HD Specifications

I Specifications
Video Processing
Processing 4:4:4 (Y/Pb/Pr, RGB), 10-bit
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i,
Video 1080/50i, 1080/59.94p, 1080/50p
* The SDI input can input the same frame rate as a setup menu setting.
640x480/60 Hz *1 , 800x600/60 Hz *1 *3 , 1024x768/60 Hz *1 ,
1280x768/60 Hz *1 , 1280x1024/60 Hz *1 , 1366x768/60 Hz *1 ,
1400x1050/60 Hz *1 , 1600x1200/60 Hz, 1920x1080/60 Hz, 1920x1200/60 Hz
Supported
* Conforms to VESA DMT Version 1.0 Revision 10
Formats
PC
*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz
*2 Reduced blanking
*3 When Reference is set to External, the resolution of 800 x 600 and refresh rate of
60 Hz are no longer compliant with the VESA standard.
This means that display on some devices may not be possible in this situation.
Windows ® Bitmap File (.bmp)
Still Image
* Maximum 1900 x 1200 pixels, 24-bit per pixel, uncompressed
Input/Output Level and Impedance
Composite 1.0 Vp-p, 75 ohms
Analog HD/RGB 0.7 Vp-p, 75 ohms (H, V : 5 VTTL)
Input Connectors
3G/HD/SD-SDI BNC type x 4 * Conforms to SMPTE 424M (Level-A), 292M, 259M-C
DVI-I/HDMI DVI-I type x 4
* Select DVI-A or DVI-D/HDMI using switch per channel
HD Component (Mini D-Sub 15 pin type) x 4 * Combined use with Analog RGB
Analog Video
SD
Composite (BNC type) x 4 * Select Composite or SDI using menu per channel
Mini D-Sub 15 pin type x 4
Analog RGB
* Combined use with Analog Video (HD)
* Select DVI-D/HDMI or Analog RGB using menu per channel
Output Connectors
3G/HD/SD-SDI BNC type x 2
* Conforms to SMPTE 424M (Level-A), 292M, 259M-C
DVI-D/HDMI DVI-D type x 2, HDMI x 1 (for multi-view monitor)
HD
Component (Mini D-Sub 15 pin type) x 1 * Combined use with Analog RGB
Analog Video
SD Composite (BNC type) x 1
Analog RGB Mini D-Sub 15-pin type x 1 * Combined use with Analog Video (HD)
Other Connectors
Tally Mini D-Sub 15 pin type x 2 * Input (max): 12V, 200 mA Open collector Type
Reference BNC type (IN, THRU)
* Black Burst (Sync to frames), Bi-Level, Tri-Level
MIDI 5 pin DIN type (IN, OUT/THRU)
RS-232C
D-Sub 9 pin type x 1
USB port (host) A type x 1 (for USB memory)
I Block Diagram
Input
Input Multi-view
Ch.1 3G/HD/SD-SDI
FS Scaler Color Corrector
1 1
COMPOSITE
Shared Input
Ch.2
3G/HD/SD-SDI 2 FS Scaler Color Corrector 2
COMPOSITE
Shared Input
Ch.3
3G/HD/SD-SDI FS Scaler Color Corrector
3 3
COMPOSITE
Shared Input
Ch.4
3G/HD/SD-SDI FS Scaler Color Corrector
4 4
COMPOSITE
RGB/COMPONENT
Ch.5
FS Scaler Color Corrector
DVI-D 5 5
DVI-I/HDMI
DVI-A PGM
Shared Input
Ch.6
RGB/COMPONENT
6 FS Scaler Color Corrector 6
DVI-D
DVI-I/HDMI
PST/EFFECT
DVI-A
Shared Input
Ch.7
RGB/COMPONENT
FS Scaler Color Corrector
7 7
DVI-D
DVI-I/HDMI
DVI-A
Shared Input
Ch.8
RGB/COMPONENT
8 FS Scaler Color Corrector 8
DVI-D
DVI-I/HDMI
DVI-A
E
DVI-I/HDMI Signal Switch
USB MEMORY
Ch.9
Still Image Color Corrector
9 9
DSK Source
Ch.10 Still Image *1
Color Corrector
10 10
Background
Input Select
IN
REFERENCE
THRU
