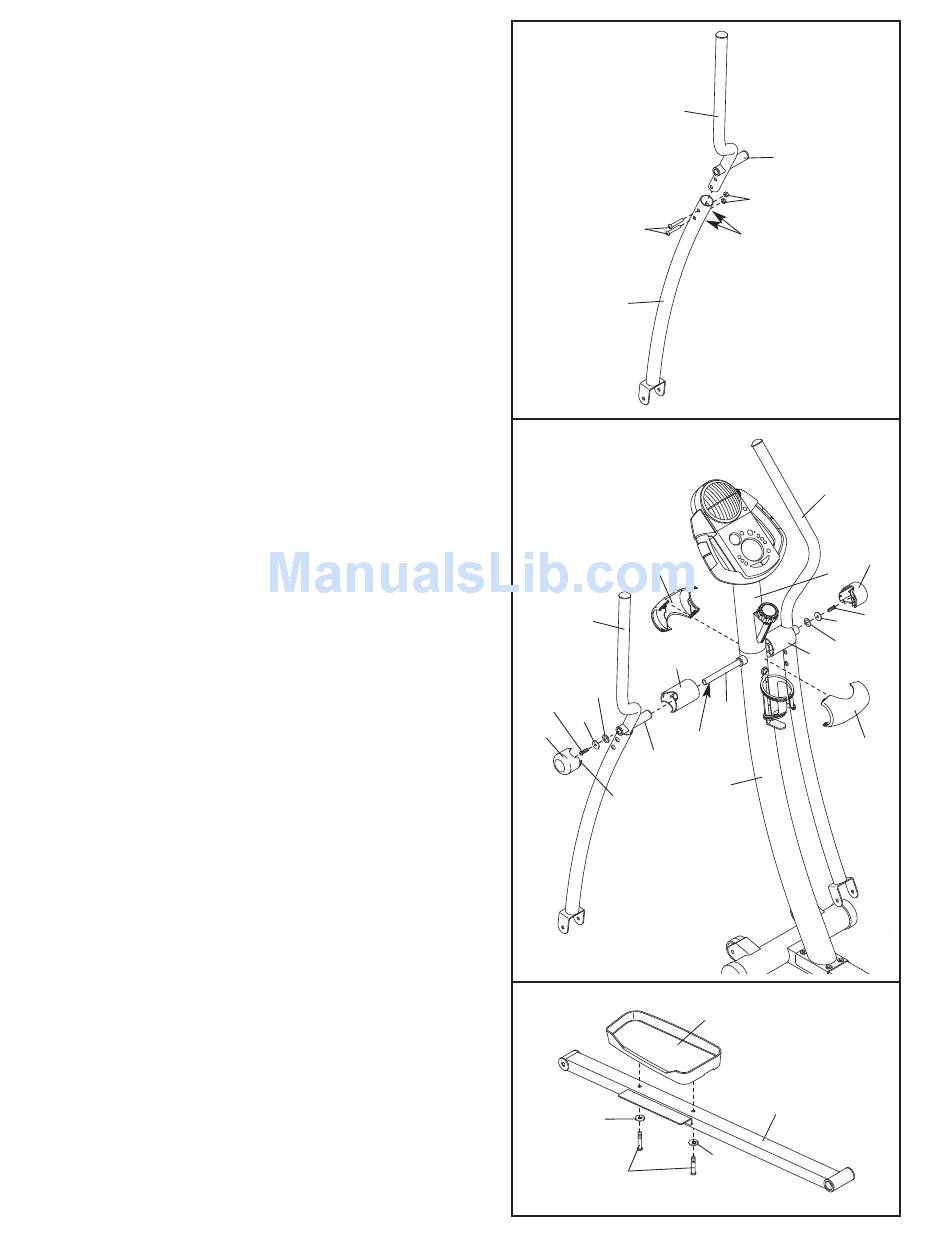

8. Identify the Left Handlebar (9) and the Left Handlebar
Leg (73), which are marked with stickers.
Insert the Left Handlebar (9) into the Left Handlebar
Leg (73). Make sure that the indicated tube on the
Left Handlebar and the hexagonal holes in the
Left Handlebar Leg are on the same side. Attach
the Left Handlebar with two M8 x 42mm Button Bolts
(50) and two M8 Nylon Locknuts (46). Do not tighten
the Button Bolts yet.
Attach the Right Handlebar (not shown) to the Right
Handlebar Leg (not shown) in the same way.
9. Insert the Pivot Axle (38) into the Upright (2). Apply a
generous amount of the included grease to the Pivot
Axle.
Identify the Left and Right Handlebars (9, 10), which
are marked with stickers.
Orient a Handlebar Spacer (25) as shown, with the
small cutout on top, and slide the Handlebar Spacer
onto the indicated tube on the Left Handlebar (9).
Next, slide the Left Handlebar onto the Pivot Axle (38).
Assemble the Right Handlebar (10) in the same way.
Tighten an M8 x 19mm Button Screw (22) with an M8
Large Washer (17) and an M16 Wave Washer (83) into
each end of the Pivot Axle (38). Make sure that the
Wave Washers are on the ends of the Pivot Axle.
Orient the two Handlebar Caps (23) as shown, and
press the small tabs on the Handlebar Caps into the
two Handlebar Spacers (25).
Gently separate the two Upright Covers (82). Hold the
Upright Covers around the Upright (2), and firmly
press the Upright Covers together.
10. Identify the Left Pedal (13), which has an "L" molded
into its bottom surface, and the Left Pedal Arm (14),
which is marked with a sticker.
Attach the Left Pedal (13) to the Left Pedal Arm (14)
with two M8 x 48mm Button Screws (20) and two M8
Split Washers (74).
Attach the Right Pedal (not shown) to the Right Pedal
Arm (not shown) in the same way.
8
50
73
9
82
9
83
22
17
23
Tube
Tab
10
74
20
7
9
Tube
46
Hexagonal
Holes
10
26
17
83
25
25
38
Grease
2
13
14
74
23
22
82
