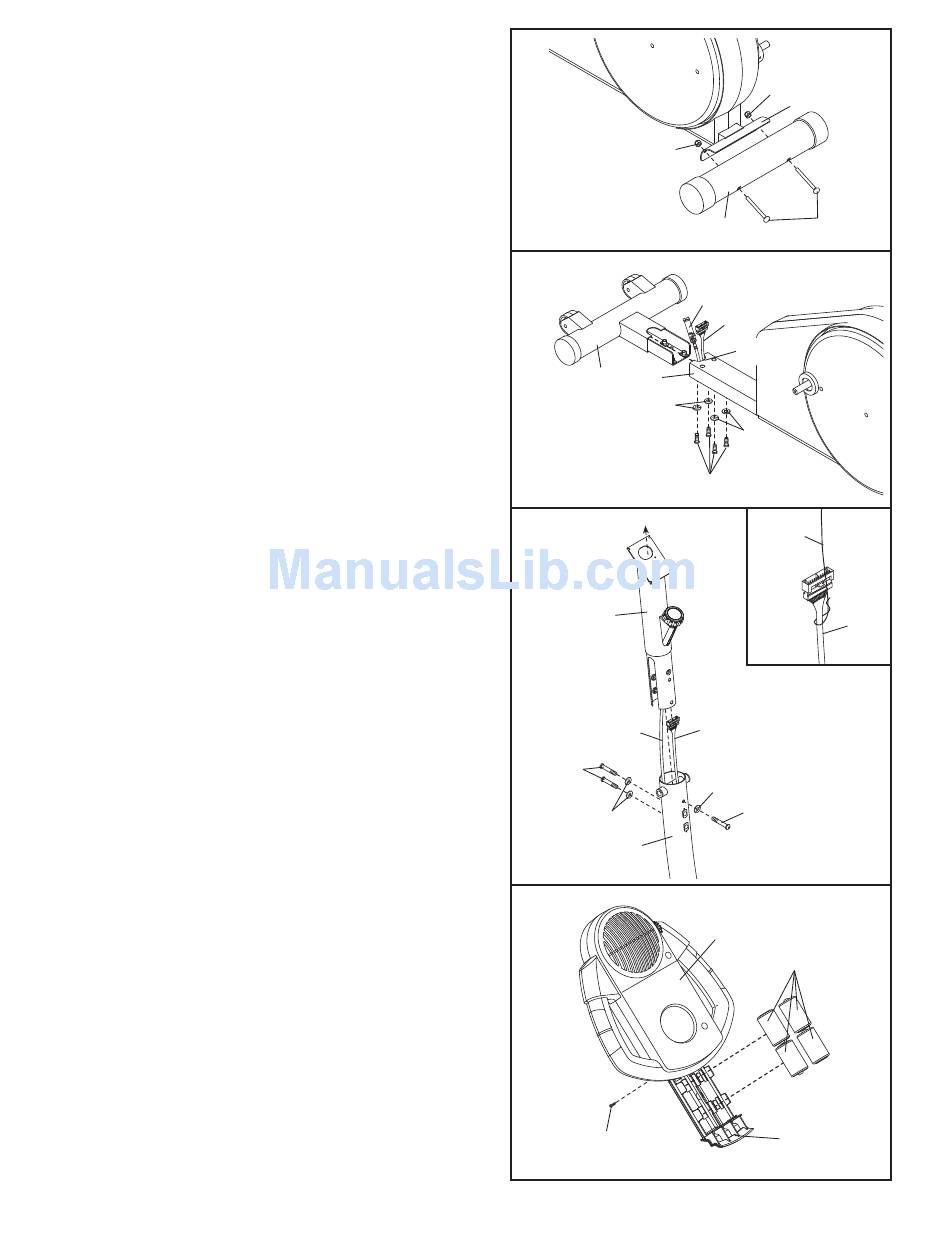

1. Attach the Rear Stabilizer (4) to the Frame (1) with
two M10 x 105mm Carriage Bolts (34) and two M10
Nylon Locknuts (29).
2. Hold the Lower Cable (55) and the Lower Wire
Harness (65) in the indicated slot in the Frame (1),
and insert the Front Stabilizer (3) into the Frame. Make
sure that the Front Stabilizer is oriented as
shown. Be careful to avoid pinching the Lower
Cable and the Lower Wire Harness. Carefully tip
the elliptical exerciser onto one side, and attach the
Front Stabilizer with four M10 x 22mm Button Screws
(21) and four M10 Split Washers (67).
3. Hold the Console Bracket (26) near the Upright (2),
and locate the wire extending from the bottom of the
Console Bracket. Carefully pull the upper end of the
Upper Wire Harness (79) to remove any slack, and tie
the wire around the Upper Wire Harness, as shown in
the inset drawing. Carefully pull the wire up through
the Console Bracket until the Upper Wire Harness is
extending from the top of the Console Bracket. Then,
untie the wire and discard it.
Insert the Console Bracket (26) into the Upright (2).
Be careful to avoid pinching the Upper Wire
Harness (79). Attach the Console Bracket with three
M8 x 25mm Button Screws (57) and three M8 Split
Washers (74).
4. The Console (5) requires four "D" batteries (not
included); alkaline batteries are recommended.
Remove the indicated screw from the battery drawer,
and pull the battery drawer open. Insert four batteries
into the battery drawer; make sure that the batteries
are oriented as shown by the markings inside the
battery drawer. Close the battery drawer and reat-
tach the screw. Note: When the batteries are installed
correctly, the fan will turn on for a moment.
