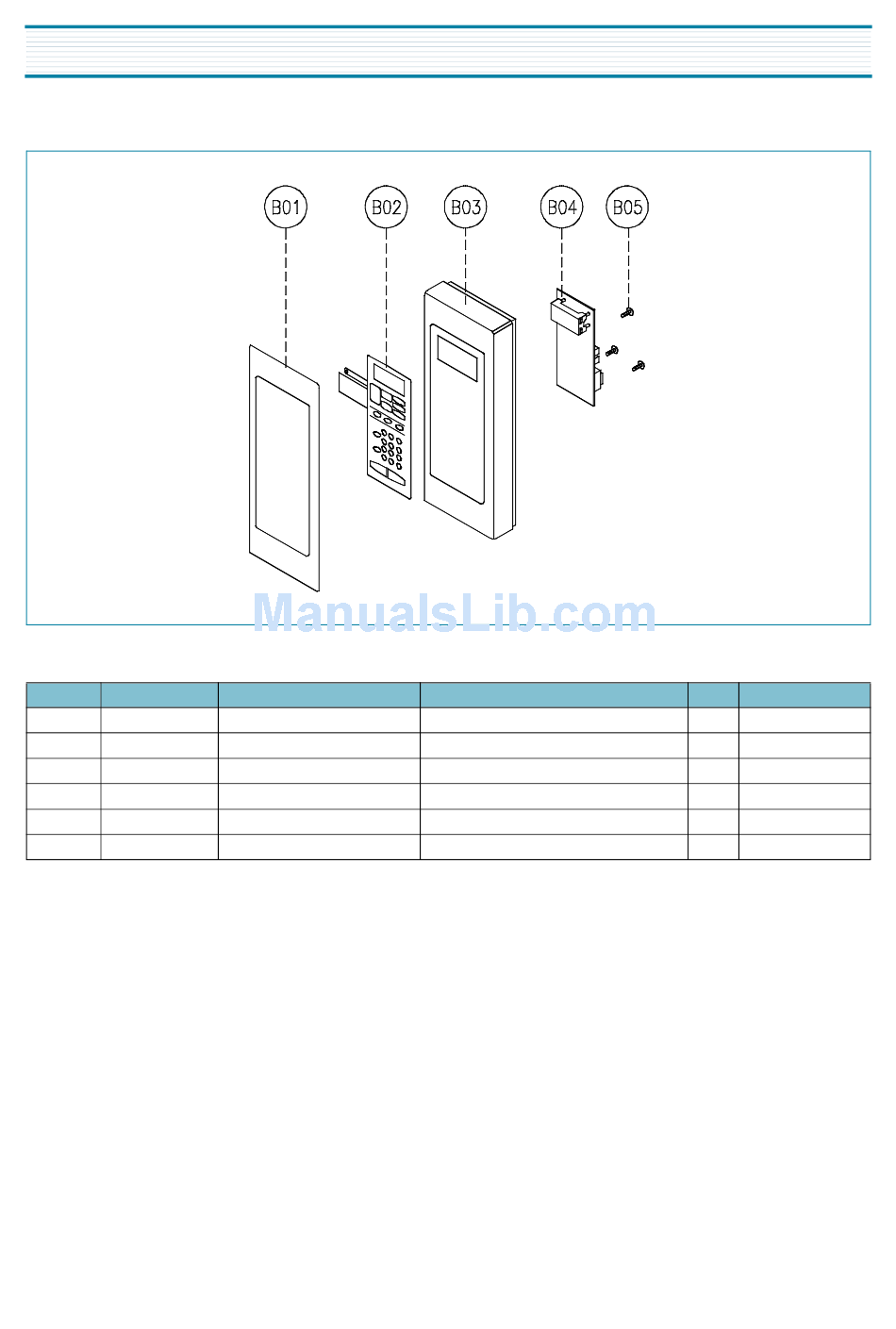

2) KOR-1A4G/H
REF NO.
PART CODE
B01
3511604800
B02
3518522130
3518522140
B03
3516722320
B04
3514321910
B05
7122401211
1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.
2) Remove four screws which secure the PCB assembly to control panel.
3) Disconnect membrane tail from the connector of the PCB assembly.
4) Detach membrane from the control panel.
5) Reverse the above steps for reassembly.
PART NAME
DECORATOR C-PANEL
SWITCH MEMBRANE
SWITCH MEMBRANE
CONTROL-PANEL
PCB AS
SCREW TAPPING
DESCRIPTION
STS304 T0.6
KOR-1A4G0A
KOR-1A4H0A/1A
ABS AF-315/345 HFA-700HT
KOR-1A1G0A
T2S TRS 4* 12 MFZN
17
DISASSEMBLY AND ASSEMBLY
Q'TY
1
1
1
1
1
3
REMARK
