DISASSEMBLY AND ASSEMBLY

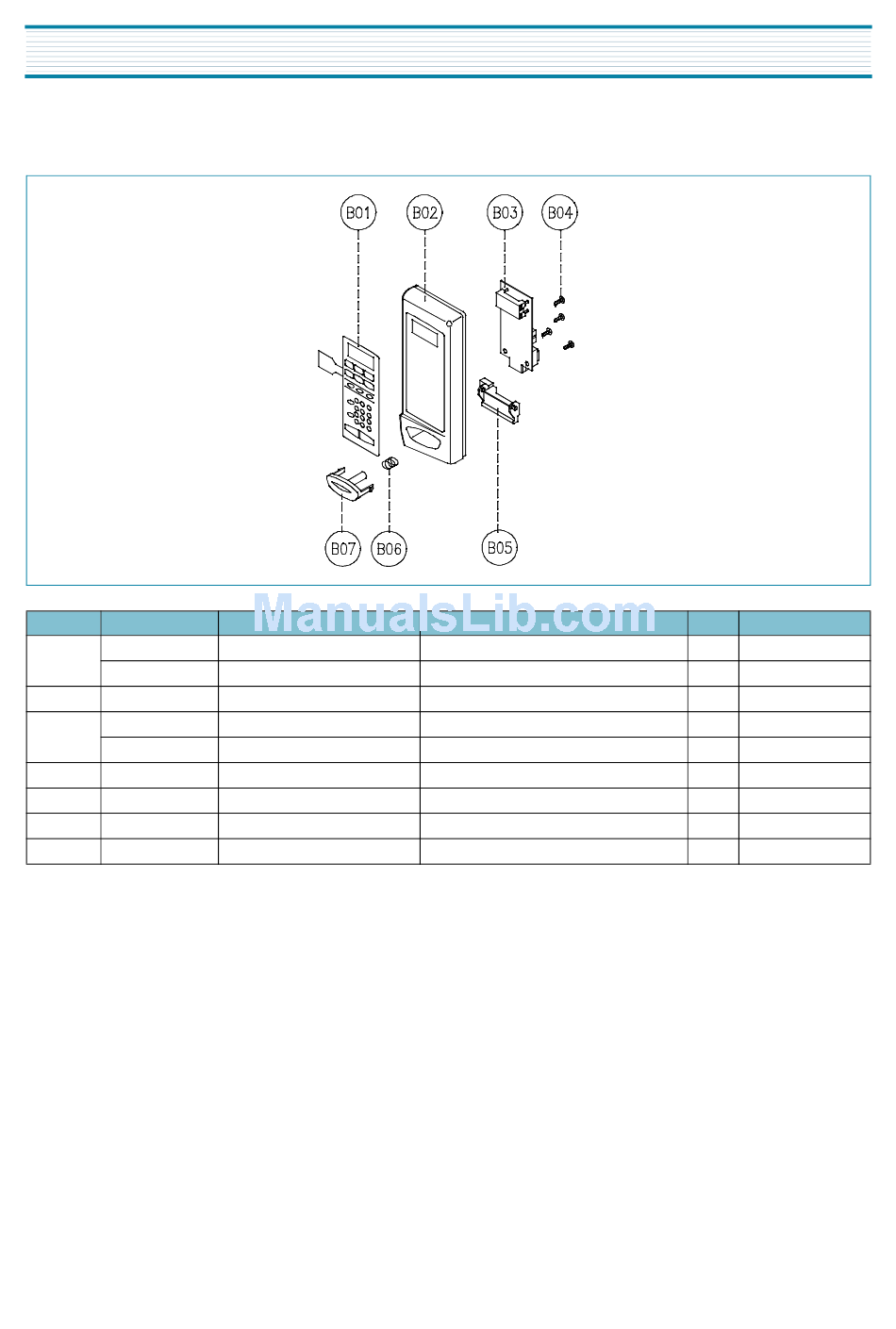

5. To remove control panel parts.
1) KOR-1A1G/H
REF NO. PART CODE
3518522100
B01
3518522110
B02 3516722300
3514321910
B03
PKMPM SXV00 PCB AS
B04 7122401211
B05 3513702800
B06 441G430171 BUTTON SPRING
B07 3516907900
1) Remove the screw which secure the control panel, push up two snap fits and draw forward the control panel assembly.
2) Remove the door open lever from thee control panel.
3) Remove four screws which secure the PCB assembly to control panel.
4) Disconnect membrane tail from theconnector of the PCB assembly.
5) Detach membrane from the control panel.
6) Remove door open button and button spring from the control panel.
7) Reverse the above steps for reassembly.
PART NAME
SWITCH MEMBRANE
SWITCH MEMBRANE
CONTROL-PANEL
PCB AS
SCREW TAPPING
LEVER DOOR OPEN
BUTTON DOOR OPEN
DESCRIPTION
KOR-1A1G0A
KOR-1A1H0A
ABS AF-345, HFA-700HT
KOR-161H0A
KOR-130A0A
T2S TRS 4X12 MFZN
ABS XR-401 H-2938
SWP DIA 0.7
ABS AF-345, HFA-700HT
16
Q'TY REMARK
1
1
1
1 1A1G(H)0A/-1A
1 1A1G(H)2A/-4A
4
1
1
1
