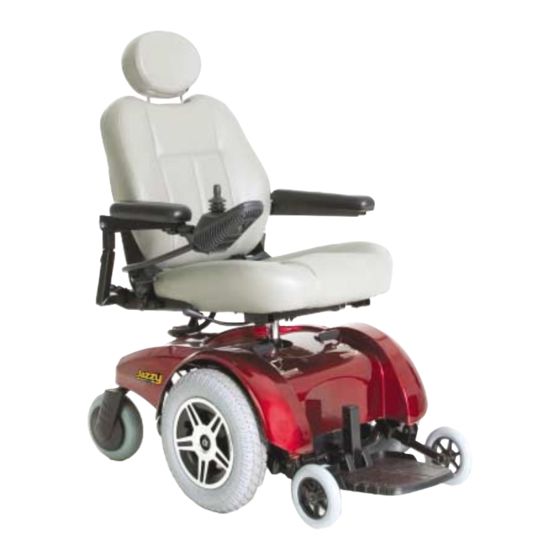

Pride Mobility Jazzy Select 14XL Owner's Manual

Hide thumbs Also See for Jazzy Select 14XL:

Advertisement

Table of Contents

Owner's Manual
Exeter, PA
St. Catharines, ON
1-800-800-8586
www.pridemobility.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Jazzy Select 14XL and is the answer not in the manual?

Questions and answers

Related Manuals for Pride Mobility Jazzy Select 14XL

Summary of Contents for Pride Mobility Jazzy Select 14XL

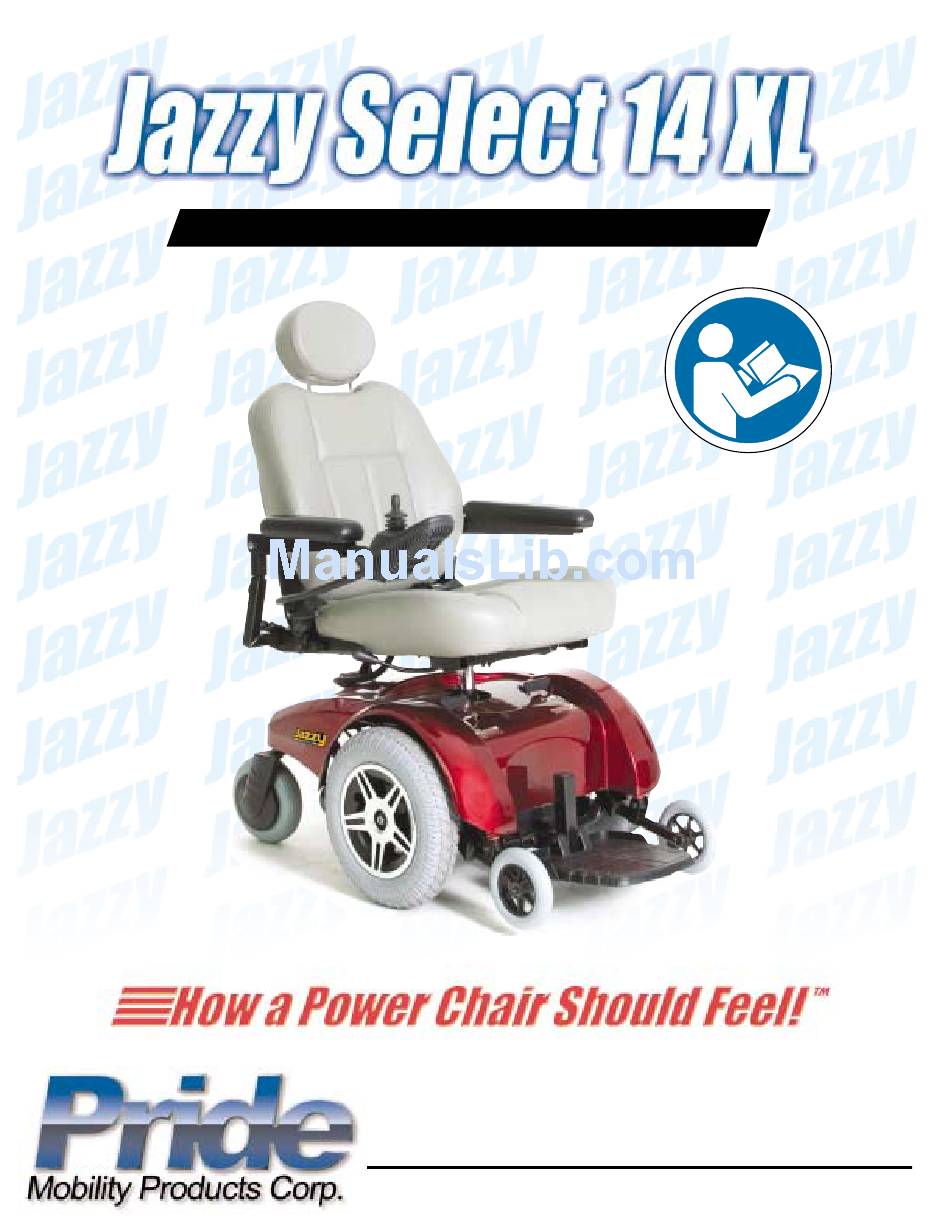

  • Page 1 Owner’s Manual Exeter, PA St. Catharines, ON 1-800-800-8586 www.pridemobility.com...
  • Page 2 Performing a prohibited action can cause injury to personnel and/ or damage to equipment (black symbol with red circle and red slash). Copyright © 2006 Pride Mobility Products Corp. INFMANU3226/Rev A/June 06 www.pridemobility.com Jazzy Select 14XL...

  • Page 3: Table Of Contents

    This owner’s manual is compiled from the latest specifications and product information available at the time of publication. We reserve the right to make changes as they become necessary. Any changes to our products may cause slight variations between the illustrations and explanations in this manual and the product you have purchased. Jazzy Select 14XL www.pridemobility.com...

  • Page 4: Introduction

    I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of- the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities.
  • Page 5 These message boards invite you to communicate with other Pride customers as well as Pride represen- tatives who are available to assist you with any questions or concerns you may have. My authorized Pride Provider: Name:_____________________________________________________________________________________ Address:___________________________________________________________________________________ Phone Number:______________________________________________________________________________ Purchase Date:_______________________________________________________________________________ Jazzy Select 14XL www.pridemobility.com...
  • Page 6 Maximum seating weight. Left freewheel lever operation Place unit on level ground and stand behind or to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode. Right freewheel lever operation www.pridemobility.com Jazzy Select 14XL...
  • Page 7 Disposal and Recycling - Contact your authorized Pride Provider for information on proper disposal and recycling of your Pride product and its packaging. Prevent personal injury! Be aware that loose fitting clothing can become caught in drive tires. Jazzy Select 14XL www.pridemobility.com...

  • Page 8: Safety

    ! Check all controller connections to the electronics tray. Make sure they are secured properly. ! Check the brakes. See VIII. “Care and Maintenance.” ! Check battery charge. See VI. “Batteries and Charging.” NOTE: If you discover a problem, contact your authorized Pride Provider for assistance. www.pridemobility.com Jazzy Select 14XL...
  • Page 9 If your power chair starts to move down the incline faster than you anticipated or desired, allow it to come to a complete stop by releasing the joystick, then push the joystick forward slightly to ensure a safely controlled descent. Jazzy Select 14XL www.pridemobility.com...
  • Page 10 (i.e., lessen the sharpness of the turn) to prevent your power chair from tipping. WARNING! When cornering sharply, reduce your speed. This greatly reduces the possibility of a tip or fall. To avoid personal injury and/or property damage, always exercise common sense when cornering. www.pridemobility.com Jazzy Select 14XL...
  • Page 11 WARNING! Do not attempt to have your power chair proceed backwards down any step, curb, or other obstacle. This may cause the power chair to tip and cause personal injury. Figure 2. Correct Curb Approach Figure 3. Incorrect Curb Approach Jazzy Select 14XL www.pridemobility.com...
  • Page 12 WARNING! Always be sure your power chair and its batteries are properly secured when it is being transported. Failure to do so may result in personal injury and/or damage to your power chair. www.pridemobility.com Jazzy Select 14XL...

  • Page 13: Iii. "Your Power Chair

    WARNING! The positioning belt is not designed for use as a seat belt in a motor vehicle. Nor is your power chair suitable for use as a seat in any vehicle. Anyone traveling in a vehicle should be properly belted into seats approved by the vehicle manufacturer. Jazzy Select 14XL www.pridemobility.com...
  • Page 14 WARNING! Consult your physician if you are taking prescribed or over-the-counter medication or if you have certain physical limitations. Some medications and limitations may impair your ability to operate your power chair in a safe manner. www.pridemobility.com Jazzy Select 14XL...
  • Page 15 NOTE: For further information on EMI/RFI, visit the Resource Center on www.pridemobility.com. If unin- tended motion or brake release occurs, turn your power chair off as soon as it is safe to do so. Call Pride at 800- 424-8205 to report the incident. Jazzy Select 14XL www.pridemobility.com...
  • Page 16 See figures 5 and 6. SEATBACK ARMRESTS CONTROLLER SEAT ASSEMBLY SEAT RELEASE LEVER MANUAL FREEWHEEL LEVER (ONLY ONE SHOWN) BODY SHROUD POWER BASE ASSEMBLY REAR CASTER WHEEL DRIVE WHEEL FOOT PLATFORM ANTI-TIP WHEELS Figure 5. The Jazzy Select 14XL www.pridemobility.com Jazzy Select 14XL...
  • Page 17 I I I . Y O U R P O W E R C H A I R JAZZY SELECT 14XL SPECIFICATIONS Suspension: Limited Drive Wheels: 14 in. solid, center-mounted Caster Wheels: 8 in. solid, rear articulating Anti-tip Wheels: 6 in. solid, front mounted Maximum Speed:¹...
  • Page 18 If the main circuit breaker continues to trip repeatedly, contact your authorized Pride provider. CHARGER POWER CORD RECEPTACLE AMMETER MAIN CIRCUIT BREAKER CHARGER INHIBIT CONNECTOR CONTROLLER CONNECTOR Figure 6. Electronics Tray www.pridemobility.com Jazzy Select 14XL...
  • Page 19 WARNING! It is important to remember that when your power chair is in freewheel mode, the braking system is disengaged. DRIVE DRIVE FREEWHEEL FREEWHEEL MANUAL FREEWHEEL LEVER MANUAL FREEWHEEL LEVER Figure 8. Freewheel Mode (Drive Disengaged) Figure 7. Drive Mode (Drive Engaged) Jazzy Select 14XL www.pridemobility.com...

  • Page 20: Assembly

    Pride Provider. SEAT BACK ANGLE ANDJUSTMENT ARMREST WIDTH ADJUSTMENT SEAT INSTALLATION ARMREST ANGLE ADJUSTMENT SEAT HEIGHT ADJUSTMENT CONTROLLER POSITION FOOT PLATFORM HEIGHT ADJUSTMENT FOOT PLATFORM ANGLE ADJUSTMENT Figure 9. Jazzy Select 14XL Assembly View www.pridemobility.com Jazzy Select 14XL...
  • Page 21 5. Secure the controller cable to the armrest receiver with wire ties. See figure 11. Figure 10. Seat Installation Figure 11. Cable Routing Jazzy Select 14XL www.pridemobility.com...

  • Page 22: Comfort Adjustments

    9. Reinstall the seat. 10. Reconnect the controller to the power base. Seatback Angle Adjustment If your power chair is equipped with an adjustable seatback, you can adjust it to four (4) different angles: 90°, 102°, 105°, or 107°. www.pridemobility.com Jazzy Select 14XL...
  • Page 23 3. Turn the adjusting screw clockwise to lower the front of the armrest, or turn the adjusting screw counterclock- wise to raise the front of the armrest. 4. Tighten the jam nuts to lock the adjusting screw into place. Jazzy Select 14XL www.pridemobility.com...
  • Page 24 9. Route the controller cable to the back of the power base and plug in the controller connector. 10. Use a wire tie to secure the controller cable to the arm- rest. See figure 11. Figure 15. Underside of Armrest www.pridemobility.com Jazzy Select 14XL...
  • Page 25 1. Remove the two adjustment screws from the back of each leg rest extension. Figure 17. Elevating Leg Rests 2. Slide the leg rest up or down to the desired length. 3. Reinstall the two adjustment screws. Jazzy Select 14XL www.pridemobility.com...
  • Page 26 You can compensate for this by making a small adjustment to the pre-programmed deceleration setting in the controller or by moving the seat assembly farther to the rear of your power chair. Failure to do so may result in personal injury. PROHIBITED! Do not remove the anti-tip wheels. www.pridemobility.com Jazzy Select 14XL...

  • Page 27: Batteries And Charging

    BATTERIES AND CHARGING The Jazzy Select 14XL uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level. Deep-cycle batteries are designed to handle a longer and deeper discharge.
  • Page 28 (e.g., an automotive battery charger). NOTE: Your power chair’s charger will not operate after the batteries have been discharged to nearly zero voltage. If this happens, call your authorized Pride Provider for assistance. www.pridemobility.com Jazzy Select 14XL...
  • Page 29 Heat robs the charge from the battery, and cold slows the power available and extends the time needed to recharge the battery (just as with a car battery). Jazzy Select 14XL www.pridemobility.com...
  • Page 30 What about shipping? If you wish to use a freight company to ship your power chair to your final destination, repack your power chair in the original shipping container and ship the batteries in separate boxes. www.pridemobility.com Jazzy Select 14XL...

  • Page 31: Operation

    Figure 19. VSI Controller immediately release the joystick. Unless the joystick is damaged, this action should stop your power chair. Jazzy Select 14XL www.pridemobility.com...
  • Page 32 If your power chair was programmed with a drive profile, contact your authorized Pride Provider for more information. NOTE: We recommend that the first few times you operate your power chair, you use the lowest speed setting until you become familiar with your new power chair. www.pridemobility.com Jazzy Select 14XL...
  • Page 33 NOTE: The socket may also be used for reprogramming the VSI. Contact your authorized Pride Provider for more information. Controller Connector This connects the VSI to the power chair’s batteries, motors, and motor brakes. Actuator Connector This connects the VSI to optional actuators such as power elevating seat. Jazzy Select 14XL www.pridemobility.com...
  • Page 34 The parking brakes have a bad connection. Check the parking brake and motor connections. Make sure the controller connections are secure. An excessive voltage has been applied to the controller. This is usually caused by a poor battery connection. Check the battery connections. www.pridemobility.com Jazzy Select 14XL...

  • Page 35: Care And Maintenance

    M A I N T E N A N C E CARE AND MAINTENANCE Your Jazzy Select 14XL is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks. You can perform some of these checks, but others require assistance from your authorized Pride Provider. Preventive maintenance is very important.
  • Page 36 ! Keep your power chair clean and free of foreign material, such as mud, dirt, hair, food, drink, etc. Yearly Checks Take your power chair to your authorized Pride Provider for yearly maintenance. This helps ensure that your power chair is functioning properly and helps prevent future complications. www.pridemobility.com Jazzy Select 14XL...
  • Page 37 7. Remove the old tube from the pneumatic tire and replace it with a new tube or replace the entire assembly if it is a solid tire. 8. Screw together the two rim halves. 9. Slide the wheel back onto the axle. Make sure that the key is in the axle slot. Jazzy Select 14XL www.pridemobility.com...
  • Page 38 REAR RIM HALF RIM HALF WASHER Figure 22. Jazzy Select 14XL Drive Wheel Figure 21. Jazzy Select 14XL Drive Wheel Battery Replacement A battery wiring diagram is printed on a decal located on the front battery tray. See VI. “Batteries and Charging” for correct battery specifications.
  • Page 39 V I I I . C A R E A N D M A I N T E N A N C E BODY SHROUD REAR BATTERY BATTERY WIRING DIAGRAM LABEL FRONT BATTERY Figure 23. Battery Installation Jazzy Select 14XL www.pridemobility.com...
  • Page 40 Disconnect both batteries before load testing and follow the directions that come with the load tester. If either one of the batteries fails the load test, replace both of them. If your power chair still does not power up, contact your authorized Pride Provider. www.pridemobility.com Jazzy Select 14XL...
  • Page 41 Pride to be defective in material and/or workmanship: ! Bearings and bushings ! Plastic components, except body The battery is covered by a separate six-month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride. Jazzy Select 14XL www.pridemobility.com...
  • Page 42 Circumstances beyond the control of Pride Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically authorized, IN ADVANCE, by Pride Mobility Products Corporation Repairs and/or modifications made to any part without specific consent from Pride...
  • Page 43 Quality Control - Jazzy Select 14XL Thank you for making the Jazzy Select 14XL your choice in power chairs. Q u a l i t y C o n t r o l - M o d e l 1 400 We have thoroughly inspected your power chair.
