Pride Mobility Quantum series Owner's Manual

Quantum series
Hide thumbs Also See for Quantum series:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual

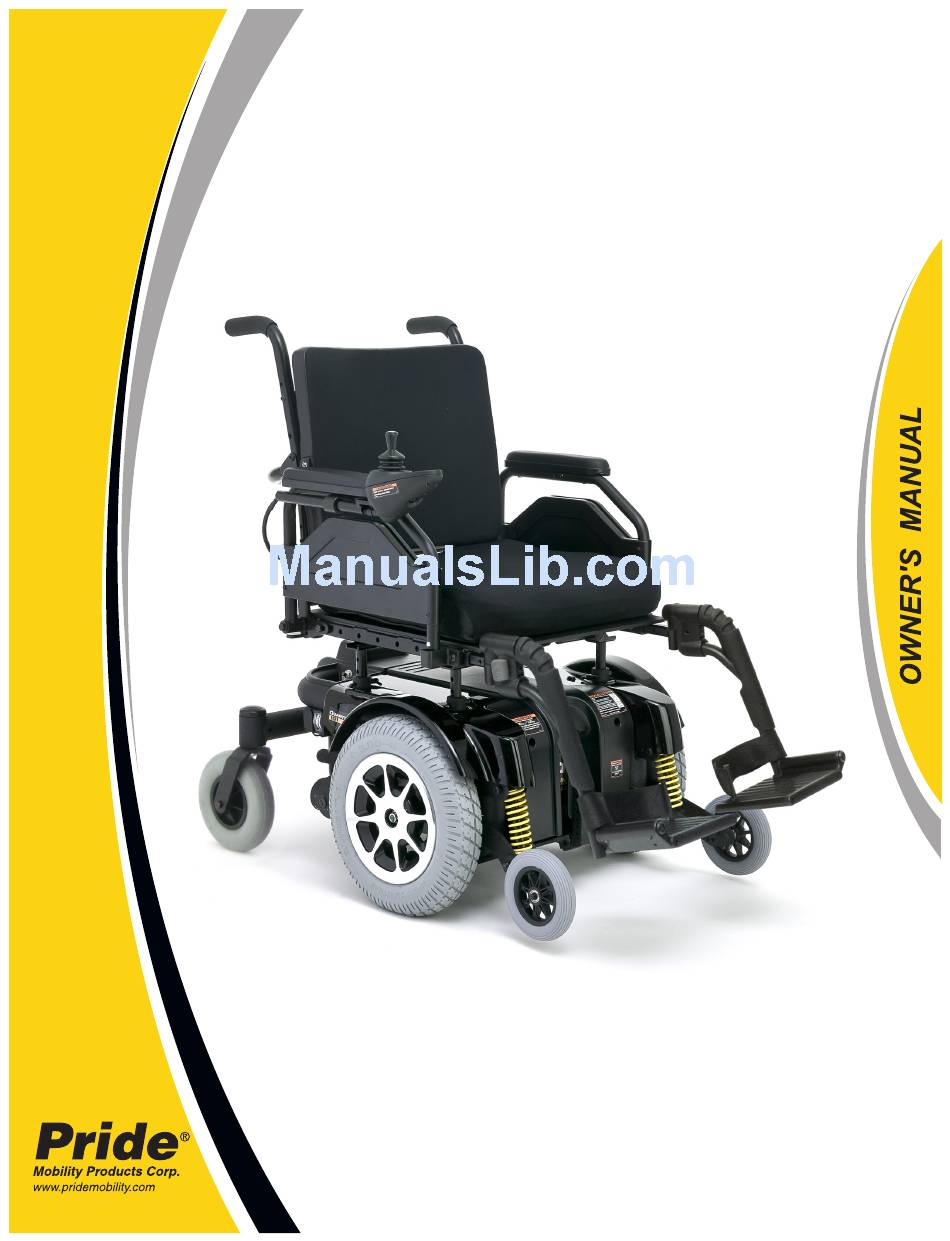

QUANTUM
SERIES
Including Models: Quantum 1121 3SP and Quantum 1121 3MP
1-800-800-8586 (US) 1-888-570-1113 (Canada)

Advertisement

Table of Contents
loading

Related Manuals for Pride Mobility Quantum series

Summary of Contents for Pride Mobility Quantum series

  • Page 1 QUANTUM SERIES Including Models: Quantum 1121 3SP and Quantum 1121 3MP 1-800-800-8586 (US) 1-888-570-1113 (Canada)
  • Page 2 The latest/current version of this manual is available on our website. Copyright © 2011 Pride Mobility Products Corp. INFMANU2884/Rev F/July 2011...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION ........................... 4 SAFETY ..............................5 III. YOUR POWER CHAIR ........................15 IV. ASSEMBLY ............................18 COMFORT ADJUSTMENTS ......................20 VI. BATTERIES AND CHARGING ...................... 26 VII. CARE AND MAINTENANCE ......................30 APPENDIX I –...

  • Page 4: Introduction

    I . I N T R O D U C T I O N SAFETY WELCOME to Quantum Rehab, a division of Pride Mobility Products (Pride). The power chair you have pur- chased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities.
  • Page 5 I I . S A F E T Y PRODUCT SAFETY SYMBOLS The symbols below are used on your power chair to identify warnings, mandatory actions, and prohibited actions. It is very important for you to read and understand them completely. Read and follow the information in the owner’s manual.

  • Page 6: Ii. Safety

    I I . S A F E T Y Explosive conditions exist! Do not expose to heat source such as open flame or sparks. Do not transport batteries with flammable or combustible items. Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions.

  • Page 7: General Guidelines

    I I . S A F E T Y GENERAL GUIDELINES MANDATORY! Do not operate your new power chair for the first time without completely reading and understanding this owner’s manual. Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an extensive variety of products to best fit the individual needs of the power chair user.

  • Page 8: Weight Limitations

    I I . S A F E T Y Weight Limitations Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. Keep in mind that the maximum weight capacity includes the combined weight of the user and any accessories mounted to the power chair.
  • Page 9 I I . S A F E T Y WARNING! If your power chair is equipped with a reclining seatback, do not attempt to negotiate inclines with the seat in a reclined position. Do not attempt to negotiate obstacles with the seat in a reclined position unless an attendant is present to help stabilize the chair.
  • Page 10 I I . S A F E T Y Public Streets and Roadways WARNING! You should not operate your power chair on public streets and roadways. Be aware that it may be difficult for traffic to see you when you are seated on your power chair. Obey all local pedestrian traffic rules.

  • Page 11: Stairs And Escalators

    I I . S A F E T Y Figure 2. Correct Curb Approach Figure 3. Incorrect Curb Approach Stairs and Escalators Power chairs are not designed to travel up or down stairs or escalators. Always use an elevator. WARNING! Never use your power chair to negotiate steps or escalators. Doors Determine if the door opens toward or away from you.

  • Page 12: Positioning Belts

    I I . S A F E T Y Positioning Belts Your Quantum Rehab Provider, therapist(s), and other healthcare professionals are responsible for determining your requirement for a positioning belt in order to operate your power chair safely. WARNING! If you require a positioning belt to safely operate your power chair, make sure it is fastened securely in order to reduce the possibility of a fall from the power chair.
  • Page 13 I I . S A F E T Y Transfers Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or healthcare professional present while learning to prop- erly transfer yourself. To eliminate the possibility of injury, Pride recom- mends that you or a trained attendant perform the fol- lowing tasks before attempting a transfer: Turn off the power to the controller.
  • Page 14 I I . S A F E T Y Alcohol/Smoking The power chair user must exercise care and common sense when operating his/her power chair. This includes awareness of safety issues while under the influence of alcohol or while smoking. WARNING! Do not operate your power chair while you are under the influence of alcohol, as this may impair your ability to operate your power chair in a safe manner.
  • Page 15 I I I . Y O U R P O W E R C H A I R THE QUANTUM 1121 SERIES POWER CHAIR Your power chair has two main assemblies: the seat and the power base. See figures 5 and 6. Typically, the seat assembly includes the armrests, seatback, and seat base.

  • Page 16: Iii. Your Power Chair

    I I I . Y O U R P O W E R C H A I R ELECTRONICS TRAY REAR SEAT TOWERS FRONT SEAT TOWERS POWER MODULE (LOCATED UNDER ELECTRONICS TRAY) FREEWHEEL LEVER MOTOR/BRAKE ASSEMBLY Figure 6. The Quantum 1121 Series Power Base Electronics Tray The electronics tray is located on the back of the power base.
  • Page 17 I I I . Y O U R P O W E R C H A I R Manual Freewheel Lever For your convenience, your power chair is equipped with a manual freewheel system. This system consists of one or more freewheel levers which enable you to disengage the drive motors and maneuver the chair manually. WARNING! Do not use your power chair while the drive motors are disengaged! Do not disengage the drive motors when your power chair is on an incline or decline, as the unit could roll on its own.

  • Page 18: Seat Installation

    I V . A S S E M B L Y INITIAL ASSEMBLY Your power chair may require some assembly either before initial use or after transportation. It may also require disassembly to make some comfort adjustments. NOTE: Any nylon insert lock nut removed during the disassembly or adjustment of the power chair must be replaced with a new nut.

  • Page 19: Iv. Assembly

    I V . A S S E M B L Y To install the seat: 1. Set the seat towers to the desired height. To change the seat height, see V. “Comfort Adjustments.” 2. Tilt the seat back, and slide the rear extrusion onto the rear trapeze bar.

  • Page 20: Comfort Adjustments

    Your Quantum Rehab Provider has evaluated your power chair and made any necessary adjustments to suit your specific requirements. Do not change your seating configuration without first contacting Pride Mobility Products or your Quantum Rehab Provider.

  • Page 21: V. Comfort Adjustments

    V . C O M F O R T A D J U S T M E N T S 9. Reinstall the retaining clip into each seat tower. 10. Reinstall the seat. 11. Plug the controller connector(s) into the electronics tray.

  • Page 22: Armrest Width Adjustment

    V . C O M F O R T A D J U S T M E N T S Seatback Angle Adjustment If your power chair is equipped with an adjustable seat- back, you can adjust it to four (4) different angles: 90°, JAM NUT 102°, 105°, or 107°.

  • Page 23: Controller Position

    V . C O M F O R T A D J U S T M E N T S Controller Position You can move the controller in toward or out away from the armrest, or change the position of the control- ler for either left-hand or right-hand use.
  • Page 24 V . C O M F O R T A D J U S T M E N T S Foot Platform Angle Adjustment You can adjust the angle of the foot platform with a hex key. See figure 19. To adjust the foot platform angle: 1.
  • Page 25 V . C O M F O R T A D J U S T M E N T S Power Elevating Seat (Optional) If your power chair is equipped with a power elevating seat, you can change the seat height either through the controller or through the toggle switch mounted to one of the armrests.

  • Page 26: Batteries And Charging

    V I . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING The power chair uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free.

  • Page 27: Vi. Batteries And Charging

    V I . B A T T E R I E S A N D C H A R G I N G To charge the batteries using the off-board charger: 1. Position the front of your power chair next to a standard electrical outlet.
  • Page 28 V I . B A T T E R I E S A N D C H A R G I N G Daily Use If you use your power chair on a daily basis, charge the batteries as soon as you are finished using your power chair.
  • Page 29 V I . B A T T E R I E S A N D C H A R G I N G How can I ensure maximum battery life? A fully charged deep-cycle battery will provide reliable performance and extended battery life. Keep your power chair’s batteries fully charged whenever possible.

  • Page 30: Care And Maintenance

    V I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Quantum 1121 is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks.

  • Page 31: Vii. Care And Maintenance

    V I I . C A R E A N D M A I N T E N A N C E All wheel bearings are prelubricated and sealed. They require no subsequent lubrication. The body shroud has been sprayed with a clear sealant coating. You can apply a light coat of car wax to help it retain its high-gloss appearance.

  • Page 32: Cleaning Instructions

    V I I . C A R E A N D M A I N T E N A N C E Yearly Checks Take your power chair to a Quantum Rehab Provider for yearly maintenance, especially if you use your power chair on a daily basis.

  • Page 33: Battery Replacement

    V I I . C A R E A N D M A I N T E N A N C E AXLE KEY TIRE TUBE AXLE SLOT FRONT RIM HALF SCREWS REAR RIM HALF DRIVE WHEEL WASHER DRIVE WHEEL NUT Figure 23.

  • Page 34: Corrective Maintenance

    V I I . C A R E A N D M A I N T E N A N C E WARNING! Power chair batteries are heavy. See specifications table. If you are unable to lift that much weight, be sure to get help. Use proper lifting techniques and avoid lifting beyond your capacity.

  • Page 35: Appendix I - Specifications

    A P P E N D I X I – S P E C I F I C A T I O N S SPECIFICATIONS Suspension: Active-Trac Drive Wheels: 14 in. (35.56 cm), pneumatic or solid, center-mounted Caster Wheels: 8 in. (20.32 cm), solid, rear articulating Anti-tip Wheels: 6 in.
  • Page 36 A P P E N D I X I – S P E C I F I C A T I O N S LENGTH (WITH FRONT RIGGINGS) 43.375 in. (110.17 cm) LENGTH (WITHOUT FRONT RIGGINGS) 38.125 in. (96.84 cm) TURNING RADIUS 22.5 in.
  • Page 37 N O T E S Quantum 1121 Series www.pridemobility.com...
  • Page 38 N O T E S www.pridemobility.com Quantum 1121 Series...
  • Page 39 Quality Control – Quantum 1121 Series Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected Inspector *INFMANU2884* Product Serial #...

This manual is also suitable for:

Quantum 1121 3spQuantum 1121 3mp
