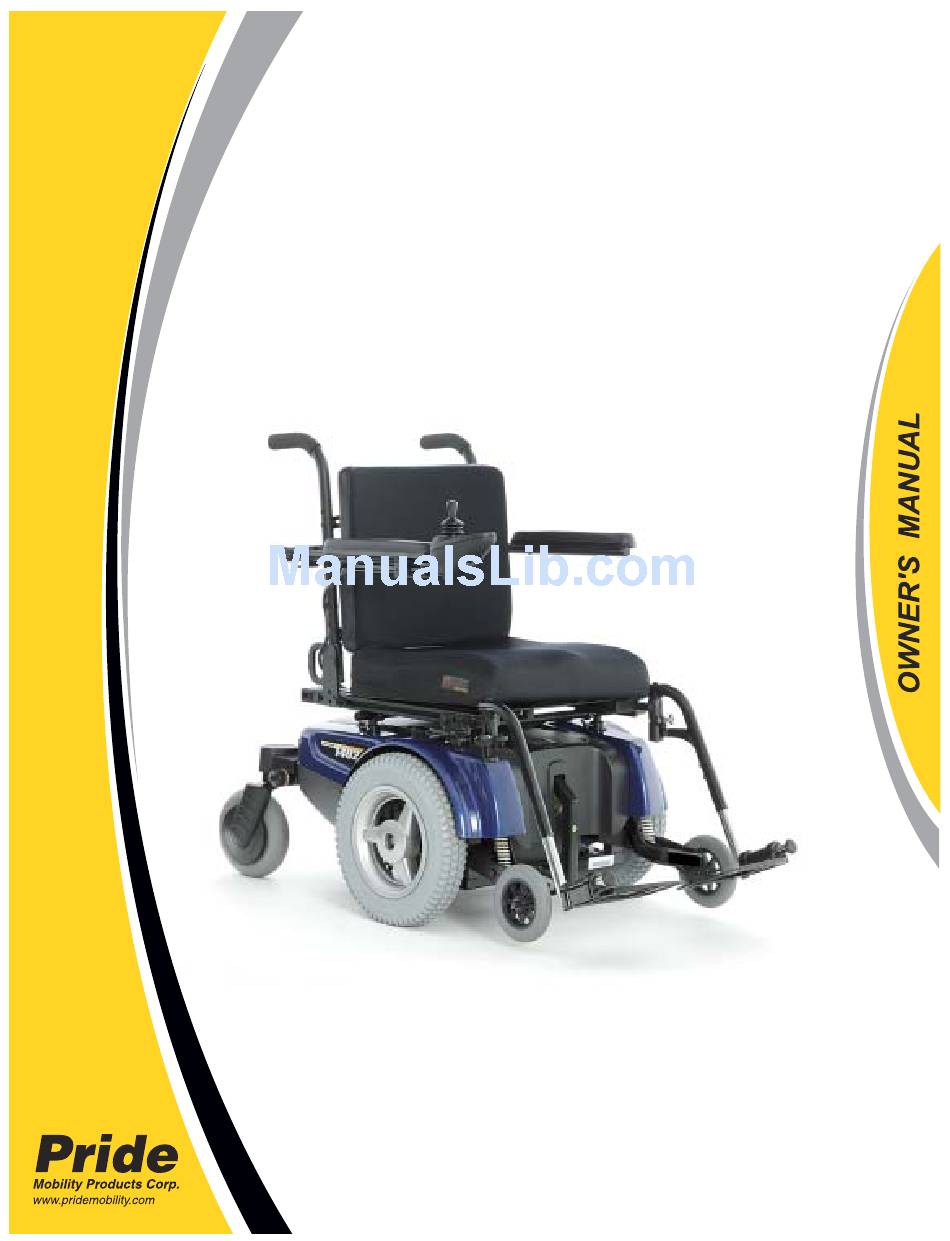

  • Page 1 QUANTUM S E R I E S INNOVATIVE REHAB SOLUTIONS Including Model: Quantum 1402 1-800-800-8586 (US) 1-888-570-1113 (Canada)
  • Page 2 The latest/current version of this manual is available on our website. 088 609 661 Copyright © 2007 Pride Mobility Products Corp. INFMANU2669/Rev B/ October 2007...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION ..........................4 SAFETY ..............................5 III. YOUR POWER CHAIR ........................17 IV. ASSEMBLY ............................21 COMFORT ADJUSTMENTS......................23 VI. DISASSEMBLY ..........................29 VII. BATTERIES AND CHARGING ....................30 VIII.CARE AND MAINTENANCE ....................... 35 IX.

  • Page 4: Introduction

    I N T R O D U C T I O N SAFETY WELCOME to Quantum Rehab, a division of Pride Mobility Products Corporation (Pride). The power chair you have purchased combines state-of-the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities.

  • Page 5: Safety

    I I . S A F E T Y PRODUCT SAFETY SYMBOLS The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions. It is very important for you to read and understand them completely. Read and follow the information in the owner’s manual.
  • Page 6 I I . S A F E T Y Do not lift the mobility vehicle while seated in it. Do not lift the mobility vehicle while seated in it. Do not connect an extension cord to the AC/DC converter or the battery charger. Removal of grounding prong can create electrical hazard.
  • Page 7 I I . S A F E T Y EMI-RFI - This product has been tested and passed at an immunity level of 20 V/m. Explosive conditions exist! Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions.
  • Page 8 I I . S A F E T Y Battery charger for indoor use only. Disposal and recycling - Contact your Quantum Rehab Specialist for information on proper disposal and recycling of your Pride product and its packaging. Locked and in drive mode. Place unit on level ground and stand to one side when changing from drive mode to freewheel mode or freewheel mode to drive mode.

  • Page 9: General Guidelines

    I I . S A F E T Y GENERAL GUIDELINES MANDATORY! Do not operate your new power chair for the first time without completely reading and understanding this owner’s manual. Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an exten- sive variety of products to best fit the individual needs of the power chair user.
  • Page 10 I I . S A F E T Y Weight Limitations Your power chair is rated for a maximum weight capacity. Please refer to the specifications table for this limit. MANDATORY! Stay within the specified weight capacity of your power chair. Exceeding the weight capacity voids your warranty.
  • Page 11 I I . S A F E T Y WARNING! Even though your power chair is capable of climbing slopes greater than those illustrated in figure 1, do not, under any circumstances, exceed the incline guidelines or any other specifications presented in this manual. Doing so could cause instability in your power chair.
  • Page 12 I I . S A F E T Y Public Streets and Roadways WARNING! You should not operate your power chair on public streets and roadways. Be aware that it may be difficult for traffic to see you when you are seated on your power chair. Obey all local pedestrian traffic rules.
  • Page 13 I I . S A F E T Y WARNING! Do not attempt to have your power chair climb or descend an obstacle that is higher than 2 in. (5 cm) unless you have the assistance of an attendant. WARNING! Do not attempt to have your power chair proceed backward down any step, curb, or other obstacle.
  • Page 14 I I . S A F E T Y Batteries In addition to following the warnings below, be sure to comply with all other battery handling information. For more information about your power chair’s batteries, see VII. “Batteries and Charging.” MANDATORY! Battery posts, terminals, and related accessories contain lead and lead compounds.
  • Page 15 I I . S A F E T Y Transfers Transferring onto and off of your power chair requires a good sense of balance. Always have an attendant or health- care professional present while learning to properly trans- fer yourself. To eliminate the possibility of injury, Pride recommends that you or a trained attendant perform the following tasks be- fore attempting a transfer:...
  • Page 16 I I . S A F E T Y WARNING! Pride strongly recommends that you do not smoke cigarettes while seated in your power chair, although the power chair has passed the necessary testing requirements for cigarette smoking. You must adhere to the following safety guidelines if you decide to smoke cigarettes while seated in your power chair.

  • Page 17: Your Power Chair

    I I I . Y O U R P O W E R C H A I R THE QUANTUM 1402 POWER CHAIR Your power chair has two main assemblies: the seat and the power base. Typically, the seating assembly includes the armrests, seatback, and controller.
  • Page 18 I I I . Y O U R P O W E R C H A I R Electronics Tray The electronics tray is located on the rear of your power chair. The electronics tray is located underneath the rear sliding door and consists of the ammeter, the charger power cord receptacle, the main circuit breaker, accessory connector (optional equipment), and the controller connectors(s).
  • Page 19 I I I . Y O U R P O W E R C H A I R Dual Manual Freewheel Levers For your convenience, your power chair is equipped with dual manual freewheel levers. The levers are located on the inside of the anti-tip wheels.
  • Page 20 I I I . Y O U R P O W E R C H A I R Rear Suspension Your power chair is equipped with rear suspension. See figure 9. This suspension system works in conjunction with ATS and is designed to maintain a smooth ride when driving over rough terrain and up and down curbs. This system works by allowing the caster forks to respond to weight transfers and uneven terrain.

  • Page 21: Assembly

    I V . A S S E M B L Y INITIAL ASSEMBLY Your power chair may require some assembly either before initial use or after transportation. NOTE: Any nylon insert lock nut removed during the disassembly or adjustment of the power chair must be replaced with a new nut.
  • Page 22 I V . A S S E M B L Y To install the seat: 1. Set the trapeze bars to the desired height. To change the trapeze bar height, see V. “Comfort Adjustments.” 2. Tilt the seat back and slide the rear extrusion onto the rear trapeze bar. See figure 10. 3.

  • Page 23: Comfort Adjustments

    C O M F O R T A D J U S T M E N T S COMFORT ADJUSTMENTS After becoming familiar with your power chair’s operation, you may find the need to make some adjustments to increase your comfort, such as seat height and angle, armrest angle, foot platform height and angle, and the controller’s position. NOTE: If your power chair is equipped with a Specialty Seat, Synergy Seat, or Synergy TRU-Balance, refer to the information provided in separate manuals.
  • Page 24 C O M F O R T A D J U S T M E N T S 10. Move the seat towers up or down to the desired height. 11. Reinstall the ball detent pin into each seat tower. 12.
  • Page 25 C O M F O R T A D J U S T M E N T S Armrest Width Adjustment You can change each armrest’s width independently of the other. To change the armrest width: 1. Locate the two adjustment knobs on the armrest receiver bracket. See figure 15.
  • Page 26 C O M F O R T A D J U S T M E N T S 7. Place the controller in the other armrest. 8. Tighten the setscrew. 9. Use a wire tie to secure the controller cable to FOOT PLATFORM the armrest.
  • Page 27 C O M F O R T A D J U S T M E N T S Power Elevating Seat Option If your power chair is equipped with a power el- POWER ELEVATING evating seat, you can change the seat height auto- SEAT SWITCH matically.
  • Page 28 C O M F O R T A D J U S T M E N T S Figure 21. Anti-Tip Wheel Adjustment (Cam) Figure 20. Anti-Tip Bracket (Inner Locknut) Anti-tip Wheel Adjustment The anti-tip wheels are designed to give your power chair increased stability on rough surfaces. The anti-tip wheels are preset at the factory for smooth surfaces or indoor use only.

  • Page 29: Disassembly

    V I . D I S A S S E M B L Y Seat Removal You may wish to remove the seat for transportation. NOTE: If your power chair is equipped with a Spe- cialty Seat, Synergy Seat, or TRU-Balance Power Positioning System, refer to the information provided in separate manuals.

  • Page 30: Batteries And Charging

    V I I . B A T T E R I E S A N D C H A R G I N G BATTERIES AND CHARGING Your power chair uses two long-lasting, 12-volt, deep-cycle batteries. These batteries are sealed and maintenance free. Since they are sealed, there is no need to check the electrolyte (fluid) level.
  • Page 31 V I I . B A T T E R I E S A N D C H A R G I N G WARNING! If your battery charger has not been tested and approved for outdoor use, then do not expose it to adverse or extreme weather conditions. If the battery charger is exposed to adverse or extreme weather conditions, then it must be allowed to adjust to the difference in environmental conditions before use indoors.
  • Page 32 V I I . B A T T E R I E S A N D C H A R G I N G Battery Break-In To break in new batteries for maximum efficiency: 1. Fully recharge any new battery prior to its initial use. This brings the battery up to about 90% of its peak performance level.
  • Page 33 V I I . B A T T E R I E S A N D C H A R G I N G How can I get maximum range or distance per charge? Rarely do you have an ideal driving situation such as smooth, flat, hard terrain with no wind, hills, or curves. More often you are presented with hills, sidewalk cracks, uneven and loosely packed surfaces, curves, and wind.
  • Page 34 V I I . B A T T E R I E S A N D C H A R G I N G How should I store my power chair and its batteries? If you do not use your power chair regularly, we recommend maintaining battery vitality by charging the batteries at least once a week.

  • Page 35: Care And Maintenance

    V I I I . C A R E A N D M A I N T E N A N C E CARE AND MAINTENANCE Your Quantum 1402 is a sophisticated power chair. Like any motorized vehicle, it requires routine maintenance checks.
  • Page 36 V I I I . C A R E A N D M A I N T E N A N C E ! All wheel bearings are prelubricated and sealed. They require no subsequent lubrication. ! The body shroud has been sprayed with a clear sealant coating. You can apply a light coat of car wax to help it retain its high-gloss appearance.
  • Page 37 V I I I . C A R E A N D M A I N T E N A N C E Storage Your power chair should be stored in a dry place, free from temperature extremes. When storing, disconnect the batteries from the power chair.
  • Page 38 V I I I . C A R E A N D M A I N T E N A N C E TIRE TUBE FRONT RIM HALF DRIVE WHEEL NUT SCREWS REAR RIM HALF DRIVE WHEEL WASHER Figure 24. Quantum 1402 Drive Wheel Figure 25.
  • Page 39 V I I I . C A R E A N D M A I N T E N A N C E Battery Replacement A diagram is printed on a decal on the power chair frame near the battery tray. To replace the battery: 1.
  • Page 40 V I I I . C A R E A N D M A I N T E N A N C E Corrective Maintenance If the battery condition meter does not light up when you turn on the power: ! Check the harness connections.

  • Page 41: Warranty

    I X . W A R R A N T Y LIFETIME LIMITED WARRANTY For the lifetime of your power chair from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representa- tive of Pride to be defective in material and/or workmanship: Structural frame components, including: ! Main Frame...
  • Page 42 Circumstances beyond the control of Pride Labor, service calls, shipping, and other charges incurred for repair of the product, unless specifically autho- rized, IN ADVANCE, by Pride Mobility Products Corporation Repairs and/or modifications made to any part without specific consent from Pride...

  • Page 43: Appendix I - Specifications

    A P P E N D I X S P E C I F I C A T I O N S SPECIFICATIONS Suspension: Active-Trac system and rear suspension Drive Wheels: 14 in. (35.5 cm), pneumatic or solid, center-mounted Caster Wheels: 8 in.
  • Page 44 A P P E N D I X S P E C I F I C A T I O N S LENGTH 46.25 in. (117.48 cm) 41 in. (104.14 cm) TURNING RADIUS 1 in. (2.54 cm) 23 in. (58.42 cm) WIDTH 25.75 in.
  • Page 45 N O T E S Quantum 1402 www.quantumrehab.com...
  • Page 46 N O T E S www.quantumrehab.com Quantum 1402...
  • Page 47 Quality Control - Quantum 1402 Inclusion of all Parts Joystick Serial Number Controller Serial Number Left Motor Serial Number Right Motor Serial Number Fit and Finish Performance Pride keeps a more detailed report on file at the factory. Date Inspected Inspector *INFMANU2669* Product Serial #...
