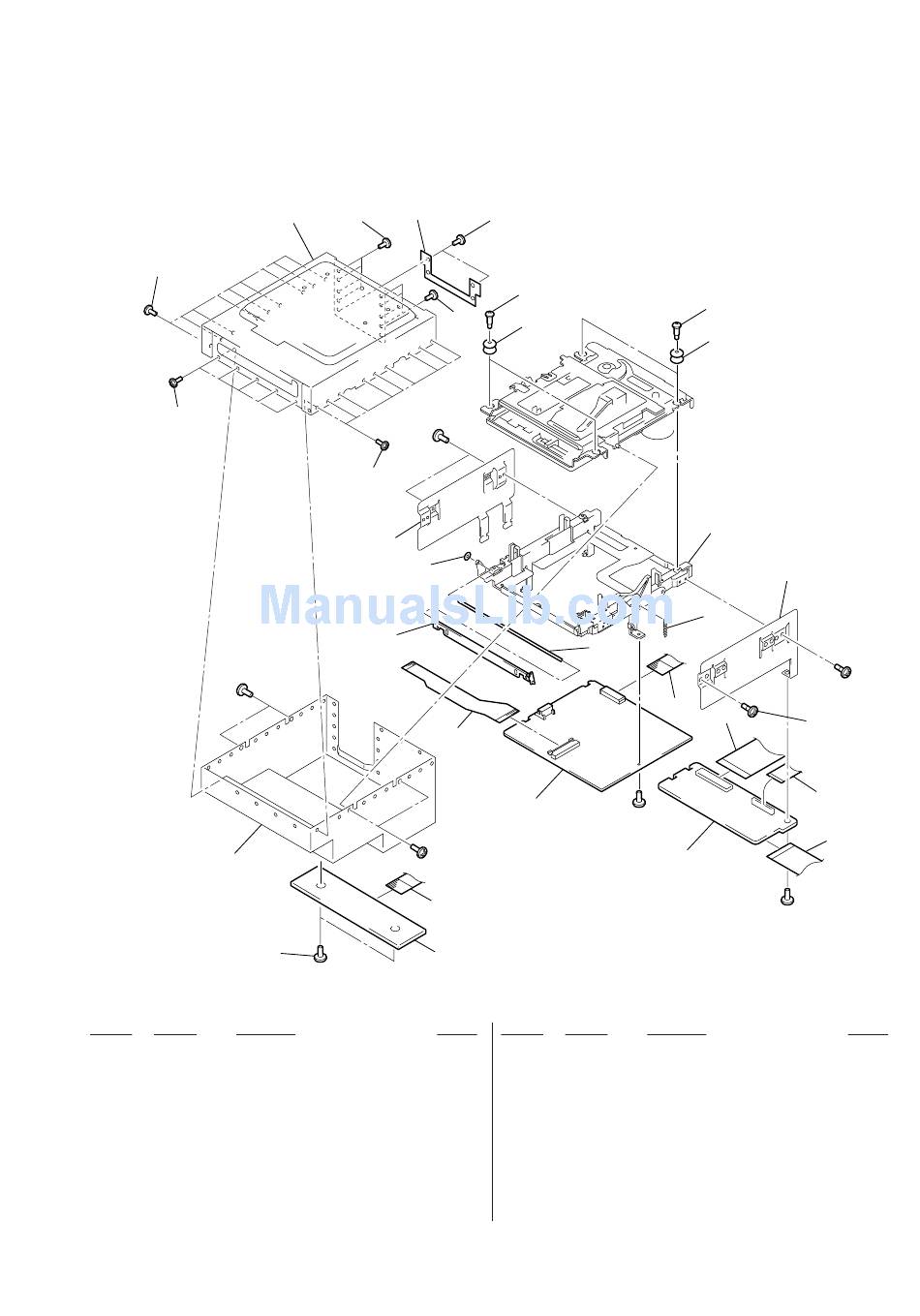

7-4. MD SECTION (1)

(MDM-3EG)
not supplied
154
154
#2
not supplied
167
Ref. No. Part No. Description
* 151 A-3321-571-A DG BOARD, COMPLETE (EXCEPT US)
* 151 A-3321-550-A DG BOARD, COMPLETE (US)
* 152 A-3293-900-A BD BOARD, COMPLETE
153 1-660-966-11 OP RELAY FLEXIBLE BOARD
154 3-028-625-01 SCREW (M1.7X2) (S TITE)
155 X-4947-825-1 SHUTTER ASSY
156 4-987-736-11 SHAFT (SHUTTER)
157 4-628-167-01 SCREW, STEP
158 4-987-327-11 INSULATOR
159 1-783-542-11 WIRE, PARALLEL (FFC) (29 CORE)
154 not supplied
154
154
#2
154
not supplied
164
155
153
#2
165
166
Remark
– 109 –
157
158
156
162
152
#6
151
Ref. No. Part No. Description
160 1-783-540-11 WIRE, PARALLEL (FFC) (19 CORE)
161 1-790-045-11 WIRE, PARALLEL (26 CORE)(60mm)
162 1-777-517-11 WIRE, PARALLEL (15 CORE)
163 4-987-910-01 SPRING (O/C), TENSION
164 4-986-959-01 WASHER
165 1-790-046-11 WIRE, PARALLEL (26 CORE)(172mm)
* 166 1-671-517-11 FILTER BOARD
167 3-029-176-01 SCREW (M1.7X4)
168 7-627-553-27 SCREW,PRECISION +P 2X2.5
157
158
not supplied
not supplied
163
#2
161
168
160
159
#6
Remark
