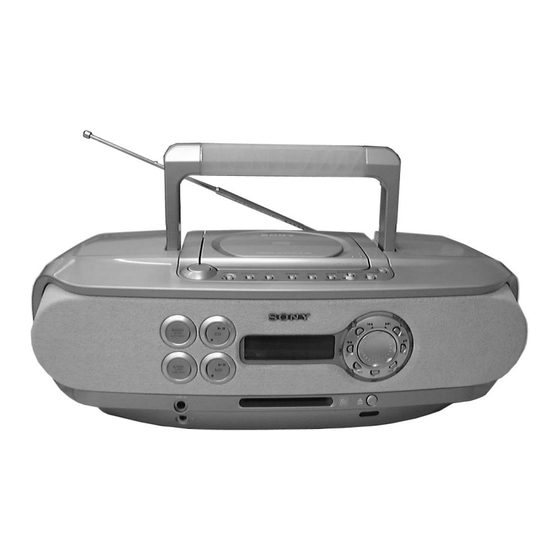

Sony ZS-M30 Service Manual

Personal minidisc system
Hide thumbs Also See for ZS-M30:
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
Ver 1.1 2001.04
US and foreign patents licensed from Dolby
Laboratories Licensing Corporation
CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 785 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance of about 200 mm
from the objective lens surface on the optical pick-up block with 7
mm aperture.)
Spindle speed
200 r/min (rpm) to 500 r/min (rpm) (CLV)
Number of programme positions
2
Frequency response
20 - 20 000 Hz +1/–2 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
FM: 87.5 - 108 MHz
MW:531 - 1,602 kHz (9 kHz step)
530 - 1,610 kHz (10 kHz step)
LW: 153 - 279 kHz
IF FM: 10.7 MHz
MW/LW: 450 kHz
Aerials
FM: Telescopic aerial
MW/LW: External aerial terminals
Sony Corporation
9-873-011-12
2001D0200-1
Personal Audio Company
© 2001.4
Shinagawa Tec Service Manual Production Group
ZS-M30
Model Name Using Similar Mechanism
CD
CD Mechanism Type
Section
Optical Pick-up Name
Model Name Using Similar Mechanism
MD
MD Mechanism Type
Section
Optical Pick-up Name

SPECIFICATIONS

MD player section
System
Minidisc digital audio system
Disc
MiniDisc
Laser diode properties
Material: GaAlAs
Wave length: 785 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance of about 200 mm
from the objective lens surface on the optical pick-up block with 7
mm aperture.)
Recording/playback time
Stereo recording:
Maximum 80 minutes (with MDW-80)
Monaural recording:
Maximum 160 minutes (with MDW-80)
Revolutions
400 rpm to 900 rpm (CLV)
Error correction
Advanced Cross Interleave Reed Solomon Code (ACIRC)
Sampling frequency
44.1 kHz
Coding
Adaptive Transform Acoustic Coding (ATRAC)
PERSONAL MINIDISC SYSTEM
AEP Model
UK Model
Australian Model
NEW
KSM-213CDP
KSS-213C
NEW
MT-ZSM30-168
KMS-260B

Advertisement

Table of Contents
loading

Summary of Contents for Sony ZS-M30

  • Page 1: Specifications

    ZS-M30 SERVICE MANUAL AEP Model UK Model Ver 1.1 2001.04 Australian Model Model Name Using Similar Mechanism US and foreign patents licensed from Dolby CD Mechanism Type KSM-213CDP Laboratories Licensing Corporation Section Optical Pick-up Name KSS-213C Model Name Using Similar Mechanism...
  • Page 2: Table Of Contents

    ZS-M30 Modulation system Power requirements EFM (Eight-to-Fourteen Modulation) For personal minidisc system: Number of programme positions 230 V AC, 50 Hz 2 stereo programme positions For back-up memory: Frequency response 4.5 V DC, 3 R6 (size AA) batteries 20 - 20,000 Hz +1/–2 dB...
  • Page 3: Notes On Handling The Optical Pick-Up Block Or Base Unit

    COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
  • Page 4: Checks Prior To Parts Replacement And Adjustments (For Md Section)

    ZS-M30 1-7. CHECKS PRIOR TO PARTS REPLACEMENT AND ADJUSTMENTS (FOR MD SECTION) Before performing repairs, perform the following checks to determine the faulty locations up to a certain extent. Details of the procedures are described in “5 Electrical Adjustments” Criteria for Determination...
  • Page 5: General

    ZS-M30 SECTION 2 GENERAL This section is extracted from instruction manual.
  • Page 6: Playing An Md

    ZS-M30...
  • Page 7: Disassembly

    ZS-M30 SECTION 3 DISASSEMBLY The equipment can be removed using the following procedure. BATT (B) board, BATT (A) board, power board Cabinet (rear) CD board Main board, LCD board TOP board Over write head (HR901), Cabinet MD block REC board,...
  • Page 8: Cabinet (Upper) Assy

    ZS-M30 3-3. CABINET (UPPER) ASSY 1 Screws (+BVTP 3 X 10) Cabinet (upper) ASSY 2 CN810 6 Main board (CN301) 7 Main board (CN302) 3 Tuner board (CN1) 8 Main board (CN303) 4 CD board (CN703) 5 Wire,parallel (22 core)
  • Page 9: Cd Board

    ZS-M30 3-5. CD BOARD Cabinet (upper) ASSY 2 Wire,Parallel (16 core) (CN701) 3 Remove solder CD board (4 places) 1 Screw (+P 2 X 6) 3-6. TOP BOARD Cabinet (upper) ASSY Top board 1 Screws (+BVTP 2.6 X 10) 3-7. TUNER BOARD...
  • Page 10: Md Block Assy

    ZS-M30 3-8. MD BLOCK ASSY 3 Screws (+BVTT 2.6 X 6) Chassis (TU) 1 Screws (+BVTP 3 X10) 1 Screws (+BVTP3 X10) MD block ASSY (MT-ZSM30-168) Cabinet (front) 3-9. SW (L) BOARD, JACK BOARD, SW (R) BOARD 1 Screws (+BVTP 2.6 X 10)
  • Page 11: Md Board

    ZS-M30 3-10. MD BOARD 1 Screws (+BVTP 2.6 X 5) Case (MD upper) shield 8 Claw 4 Screws, MD fitting 4 Screws, MD fitting 0 Op flexible board MT-ZSM30-168 8 Claw qa Wire,Parallel (7 core) 6 Wire,parallel (9 core) qs CN601 (2pin)
  • Page 12: Over Write Head (Hr901), Md Optical Pick-Up, D Sw Board

    ZS-M30 3-12. OVER WRITE HEAD (HR901), MD OPTICAL PICK-UP, D SW BOARD 1 Screw (+P 1.7X2.5) Over write head (HR901) Chassis 6 D SW board 5 Screws (1.4 X 2) MD optical pick-up (KMS-260B) 2 Screws (+P 1.4 X 3.5)
  • Page 13: Test Mode

    ZS-M30 SECTION 4 TEST MODE Refer to “5. ELECTRICAL ADJUSTMENT” for the test mode of CD section. 4-1. MD SECTION 1. PRECAUTIONS FOR USE OF TEST MODE • As loading related operations will be performed regardless of the test mode operations being performed, be sure to check that the disc is stopped before setting and removing it.
  • Page 14: Selecting The Test Mode

    ZS-M30 4-5. SELECTING THE TEST MODE There are 9 types of test modes as shown below. The groups can be switched by turn the jog dial. After selecting the group to be used, press the YES/ENTER button. After setting a certain group, turn the jog dial between these modes.
  • Page 15 ZS-M30 4-5-1. Operating the Continuous Playback Mode 1. Entering the continuous playback mode 1 Set the disc in the unit. (Whichever recordable discs or discs for playback only are available) 2 Potate the jog dial and display “CPLAY MODE”. 3 Press the YES/ENTER button to change the display to “CPLAY MID”.
  • Page 16: Functions Of Other Buttons

    ZS-M30 4-6. FUNCTIONS OF OTHER BUTTONS Function Contents Sets continuous playback when pressed in the STOP state. When pressed during continuous u (MD) playback, the tracking servo turns ON/OFF. Stops continuous playback and continuous recording. x (MD) The sled moves to the outer circumference only when this is pressed.
  • Page 17: Electrical Adjustment

    ZS-M30 SECTION 5 ELECTRICAL ADJUSTMENTS 5-1.TUNER SECTION LW FREQUENCY COVERAGE ADJUSTMENT reading on digital Adjust part Frequency display AM Section voltmeter 279kHz Adjustment value: 5.4 to 6.0V RADIO BAND button : MW or LW Confirmation 153kHz 0.4 to 1.1V Volume : MIN...
  • Page 18 ZS-M30 Adjustment Location: CT2 : MW Tracking Adjustment CT3 : LW Tracking Adjustment [TUNER BOARD] CT4 : LW Frequency Coverage Adjustment (Component side) L3 : MW Tracking Adjustment L4 : LW Tracking Adjustment L5 : MW Frequency Coverage Adjustment L1 : FM Tracking Adjustment...
  • Page 19: Md Section

    ZS-M30 5-2. MD SECTION 1. PARTS REPLACEMENT AND ADJUSTMENT • Check and adjust the mechanism deck as follows. The procedure changes according to the part replaced. • Abbreviation : Optical pick-up OWH : Overwrite head • Laser power check • Focus bias check •...
  • Page 20 ZS-M30 2. PRECAUTIONS FOR CHECKING LASER DIODE 4. Use the following tools and measuring device. EMISSION • Check Disc (MD) TDYS-1 To check the emission of the laser diode during adjustments, never (Part No. 4-963-646-01) view directly from the top as this may lose your eye-sight.
  • Page 21 ZS-M30 6. CHECK PRIOR TO REPAIRS (Optical pick-up label) These checks are performed before replacing parts according to KMS260B “approximate specifications” to determine the faulty locations. For 27X40 details, refer to “Checks Prior to Parts Replacement and Adjust- B0825 ments”(See page 4).
  • Page 22 ZS-M30 6-4. Self-Recording/playback Check 8. LASER POWER ADJUSTMENT Prepare a continuous recording disc using the unit to be repaired and check the error rate. Connection: laser power meter Checking Procedure: 1. Load a recordable disc (blank disc). 2. Turn the JOG dial to display “CREC MODE”.
  • Page 23 ZS-M30 Specified Value: Connection: Laser power meter reading : 7.0 ± 0.2 mW oscilloscope (DC range) Digital voltmeter reading : Value on the optical pick-up label ± 10% (Optical pick-up label) [MD BOARD] KMS260B (SIDE B) R542 27X40 B0825 C546...
  • Page 24 ZS-M30 9. Press the YES/ENTER button, and save the adjustment re- 10. FOCUS BIAS ADJUSTMENT sults in the non-volatile memory. (“EFB = SAVE” will be Adjusting Procedure: displayed for a moment) 1. Load the continuously-recorded disc. 10. “EFB = MO-P” will be displayed.
  • Page 25: Cd Section

    ZS-M30 12. FOCUS BIAS CHECK 5-3. CD SECTION Change the focus bias and check the focus tolerance amount. Set the CD test mode when performing confirmations. After completing the confirmation, release the CD test mode. Checking Procedure: 1. Load the continuously-recorded disc. (Refer to “5. CREATING In the CD test mode, the set works as following sequence.
  • Page 26 ZS-M30 1. Entering the CD test Mode 2. Connect an oscilloscope to TP (TE) and TP (VC) on the CD 1. Press POWER button to turn on the power. board. 2. Place CD into tray (TOC data of the CD will be read).
  • Page 27 ZS-M30 2. Connect an osilloscope to TP (RF) and TP (VC) on the CD board. 6. Releasing the CD Test Mode 1. Press the x (CD) button to stop rotate the disc. Connection: 2. Press the POWER button, then remove the power cord to release the test mode.
  • Page 28: Diagrams

    ZS-M30 SECTION 6 DIAGRAMS 6-1. IC PIN FUNCTION DESCRIPTIONS • MAIN BOARD IC801 System control (CXP740096-059Q) Pin No. Pin name Description MD–PDOWN Power down signal output to the MD mechanism coutroller(IC601) MD–SRTS System controller busy status monitor input from the MD mechanism controller MD–PACK IN...
  • Page 29 ZS-M30 Pin No. Pin name Description JOG–A Jog controller (A) input KEY–AD4 Key input terminal KEY–AD3 Key input terminal KEY–AD2 Key input terminal COM3.3V–SHORT COM3.3V voltage detection terminal LED–SURROUND — Not used (OPEN) CD–POWER Power supply ON/OFF signal output for CD servo system CD–C2P0...
  • Page 30 ZS-M30 • MD BOARD IC502 CXA2523AR (RF AMP, FOCUS/TRACKING ERROR AMP) Pin No. Pin Name Pin Description I-V converted RF signal I input from the optical pick-up block detector I-V converted RF signal J input from the optical pick-up block detector Middle point voltage (+ 1.65 V) generation output terminal...
  • Page 31 ZS-M30 • MD BOARD IC 504 CXD2654R (DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO SIGNAL PROCESSOR, EFM/ACIRC ENCODER/DECODER, SHOCK PROOF MEMORY CONTROLLER, ATRAC ENCODER/DECODER) Pin No. Pin Name Pin Description Focus OK signal output to the MD mechanism controller (IC601) MNT0 (FOK) “H”...
  • Page 32 ZS-M30 Pin No. Pin Name Pin Description XRAS Row address strobe signal output to the D-RAM (IC505) “L” active Write enable signal output to the D-RAM (IC505) “L” active Two-way data bus with the D-RAM (IC505) MVCI I (S) Digital in PLL oscillation input from the external VCO Not used (fixed at “L”)
  • Page 33 ZS-M30 Pin No. Pin Name Pin Description SRDR Sled servo drive PWM signal (–) output to the BH6511FS (IC501) SFDR Sled servo drive PWM signal (+) output to the BH6511FS (IC501) SPRD Spindle servo drive PWM signal (–) output to the BH6511FS (IC501)
  • Page 34 ZS-M30 • MD BOARD IC601 MD System control ( M30620MCA-A73FP ) Pin No. Pin Name Pin Description LCD_DATA — Not used (OPEN) LCD_CLK — Not used (OPEN) LCD_CE — Not used (OPEN) LCD_AO — Not used (OPEN) 5–7 — Not used (OPEN) BYTE —...
  • Page 35 ZS-M30 Pin No. Pin Name Pin Description — Ground terminal SENS Internal status (SENS) input from the CXD2654R (IC504) Focus OK signal input from CXD2654R (IC504) SHOCK Track jump detection signal input from CXD2654R (IC504) MNT2(XBUSY) In the state of executive command from the CXD2654R (IC504)
  • Page 36 ZS-M30 • Circuit Board Location. POWER BOARD BATT (A) BOARD BATT (B) BOARD MAIN BOARD TOP BOARD SW (L) BOARD JACK BOARD LCD BOARD TUNER BOARD SW (R) BOARD CD BOARD REC BOARD DETECT BOARD D SW BOARD MD BOARD...
  • Page 37: Block Diagrams (1/4)

    ZS-M30 6-2. BLOCK DIAGRAMS (1/4) CN602 REC BOARD MD BOARD (1/2) IC151 (1/2) BOARD VINL OVER WRITE AD-LCH HEAD EFMO ADDT DOUT HEAD DRIVE VINR DRIVER AD-RCH IC503 PDAD Q509,510 FILI DADT SAMPLING HR901 RATE SCTX XBCKI VOUTL OVER WRITE HEAD...
  • Page 38: Block Diagrams (2/4)

    ZS-M30 6-3. BLOCK DIAGRAMS (2/4) CD BOARD OPTICAL PICK-UP BLOCK (KSS-213C) IC701 IC702 Q703 RF AMP DETECTOR CN703 HI-SPEED DIGITAL SERVO DIGITAL SIGNAL PRCESSOR D OUT DIGITAL SWITCH ERROR MD BOARD CORRECTOR PCMD RF AC RF EQ SUMMING REGISTER DEMODULATOR...
  • Page 39: Block Diagrams (3/4)

    ZS-M30 6-4. BLOCK DIAGRAMS (3/4) B+(5V) TUNER BOARD FM/AM FRONT-END, FM IF IF, DET, FM MPX ANT1 TELESCOPIC ANTENNA FM MIX-OUT FM RF-IN IF-IN B.P.F AM/FM DET-OUT MUTE BUFFER TRACKING TRACKING R-CH • SIGNAL PATH FM RF OUT IF-IN : FM...
  • Page 40: Block Diagrams (4/4)

    ZS-M30 6-5. BLOCK DIAGRAMS (4/4) MAIN BOARD (2/2) LINE MUTE LINE MUTE MAIN AU-CS AU-CS BOARD AU-DATA AU-DATA (1/2) AU-CLK AU-CLK HP-SW HP-SW PA-STANDBY PA-STANDBY MAIN BOARD TOP BOARD MEGA BASS MEGA BASS (1/2) A MUTE A MUTE MD+5V D403...
  • Page 41: Printed Wiring Boards -Main Section

    ZS-M30 6-6. PRINTED WIRING BOARDS – MAIN SECTION – SP102 SP202 – – JACK BOARD PANORAMA PANORAMA CH306 SOUND (L-CH) SOUND (R-CH) MAIN BOARD Semiconductor Location JACK BOARD Ref. No. Location CH302 D101 POWER BOARD D201 CN901 D301 D802 D803...
  • Page 42: Schematic Diagram -Main Section (1/3)

    ZS-M30 6-7. SCHEMATIC DIAGRAM – MAIN SECTION (1/3) – Refer to page 55 for Notes. Refer to page 58 to 61 for IC Block Diagrams. Refer to page 56 for Waveforms.
  • Page 43: Schematic Diagram -Main Section (2/3)

    ZS-M30 6-8. SCHEMATIC DIAGRAM – MAIN SECTION (2/3) – Refer to page 55 for Notes. Refer to page 58 to 61 for IC Block Diagrams.
  • Page 44: Schematic Diagram -Main Section (3/3)

    ZS-M30 6-9. SCHEMATIC DIAGRAM – MAIN SECTION (3/3) – Refer to page 55 for Notes. Refer to page 58 to 61 for IC Block Diagrams.
  • Page 45: Printed Wiring Boards -Power Section

    ZS-M30 6-10. PRINTED WIRING BOARDS – POWER SECTION – POWER BOARD BATT (B) BOARD BATT (A) BOARD J901 - AC IN T901 * NOT REPLACEABLE: POWER TRANSFORMER BUILT IN TRANSFORMER 1-679-405- 1-679-404- (21) DRY BATTERY SIZE "AA" (IEC DESIGNATION R6) 3PCS, 4.5V...
  • Page 46: Printed Wiring Boards -Tuner Section

    ZS-M30 6-11. PRINTED WIRING BOARDS – TUNER SECTION – Semiconductor ANT1 Location Ref. No. Location TELESCOPIC ANTENNA MW/LW ANTENNA TUNER BOARD NOTE: • X : parts extracted from the component side. • : internal component. • : parts mounted on the conductor side.
  • Page 47: Schematic Diagram -Tuner Section

    ZS-M30 6-12. SCHEMATIC DIAGRAM – TUNER SECTION – Refer to page 55 for Notes. Refer to page 58 to 61 for IC Block Diagrams. Refer to page 56 for Waveforms.
  • Page 48: Printed Wiring Boards -Control Section

    ZS-M30 6-13. PRINTED WIRING BOARDS – CONTROL SECTION – TOP BOARD Semiconductor Location Ref. No. Location D306 D307 D308 D309 VOLUME– D402 D403 MAIN BOARD VOLUME+ Q401 CN803 IC401 1-679-401- (21) JACK BOARD SW (L) BOARD SW (R) BOARD SP101...
  • Page 49: Schematic Diagram -Control Section

    ZS-M30 6-14. SCHEMATIC DIAGRAM – CONTROL SECTION – Refer to page 55 for Notes.
  • Page 50: Printed Wiring Boards -Cd Section

    ZS-M30 6-15. PRINTED WIRING BOARDS – CD SECTION – MAIN BOARD Semiconductor CD BOARD CN808 Location Ref. No. Location IC701 FB705 IC702 IC703 M902 Q701 SLED MOTOR Q702 JW713 Q703 CN702 Q705 JW707 Q707 R799 JW712 JW709 R735 R782 FB704...
  • Page 51: Schematic Diagram -Cd Section

    ZS-M30 6-16. SCHEMATIC DIAGRAM – CD SECTION – Refer to page 55 for Notes. Refer to page 58 to 61 for IC Block Diagrams. Refer to page 56 for Waveforms.
  • Page 52: Printed Wiring Boards -Md Section

    ZS-M30 6-17. PRINTED WIRING BOARDS – MD SECTION – CD BOARD Semiconductor CN703 MD BOARD (SIDE B) MD BOARD (SIDE A) Location R647 FB604 FB622 R650 FB607 R648 Ref. No. Location C619 R649 FB609 FL501 IC602 FB623 D501 FB605 FL502...
  • Page 53: Schematic Diagram -Md Section (1/2)

    ZS-M30 6-18. SCHEMATIC DIAGRAM – MD SECTION (1/2) – Refer to page 55 for Notes. Refer to page 58 to 61 for IC Block Diagrams. Refer to page 57 for Waveforms.
  • Page 54: Schematic Diagram -Md Section (2/2)

    ZS-M30 6-19. SCHEMATIC DIAGRAM – MD SECTION (2/2) – Refer to page 55 for Notes. Refer to page 58 to 61 for IC Block Diagrams. Refer to page 57 for Waveforms.
  • Page 55 ZS-M30 Note on Schematic Diagram: MAIN SECTION (1/3) Note on Schematic Diagram: CONTROLSECTION • All capacitors are in mF unless otherwise noted. pF: mmF 50 WV • All capacitors are in mF unless otherwise noted. pF: mmF 50 WV or less are not indicated except for electrolytics and tantalums.
  • Page 56 ZS-M30 • Waveforms – CD SECTION – 1 IC701qg(RFO) 5 IC702 yj (XTAO) (PLAY MODE) (PLAY MODE) VOLT/DIV : 0.5 V AC VOLT/DIV : 0.5 V AC TIME/DIV : 20 µsec TIME/DIV : 1 msec 2.1 Vp-p 1.1 – 1.3 Vp-p 33.8688 MHz...
  • Page 57 ZS-M30 • Waveforms – MD SECTION – 1 IC502 1,2I , J 5 IC504 qj OSCO 9 IC504 o; FS4 (PLAY MODE) VOLT/DIV : 0.5 V AC VOLT/DIV : 1 V AC TIME/DIV : 2 µsec VOLT/DIV : 0.2 V AC TIME/DIV : 20 msec TIME/DIV : 0.5 µsec...
  • Page 58 ZS-M30 • IC BLOCK DIAGRAMS (MAIN SECTION) IC301,303 BA5417 IC305 NJM4558V-TE2 A OUT B OUT T. S. D – A IN– + – A IN+ B IN– B IN+ ST. BY FILTER IC302 LC75342 VREF TEST LOUT ROUT LBASS2 RBASS2...
  • Page 59 ZS-M30 • IC BLOCK DIAGRAMS (TUNER SECTION) IC1 LV23000M-TLM...
  • Page 60 ZS-M30 • IC BLOCK DIAGRAMS (CD SECTION) IC701 CXA2550M-T6 AGCVTH APC PD APC LD LD ON VREF 1.25V AGCCONT 13.4k 50µA 670mV RFTC RF I RF O 174k FOCUS ERROR 154k FE BIAS 260k 260k TRACKING ERROR IC703 BA5974FP-E2 27 26...
  • Page 61 ZS-M30 IC702 CXD3017Q 59 58 57 46 45 44 Digital LRCK OP Amp PCMD Interface Digital Asymmetry Converter Analog SW Corrector XTSL TES1 Clock EMPH Generator XVDD TEST XTAI XTAO SERVO DSP GENERATOR FRDR XVSS Error Serial-In FOCUS Corrector FOCUS PWM...
  • Page 62 ZS-M30 • IC BLOCK DIAGRAMS (MD SECTION) IC501 BH6511FS-E2 INTERFACE INTERFACE CHARGE PRE DRIVE PRE DRIVE PUMP. PRE DRIVE PRE DRIVE INTERFACE INTERFACE IC602 BA6287F-T1 IC603 BR24C02F-WE2 OUT1 1KBIT EEPROM ARRAY 8BIT 7BIT SAVE•WORD OUT2 ADDRESS DATA 7BIT ADDRESS DECODER...
  • Page 63 ZS-M30 IC604 PCM3003E/T2 MODE CONTROL INTERFACE ANALOG MULTI-LEVEL INTERPOLATION LOW-PASS DELTA-SIGMA FILTER FILTER MODULATOR OVERFLOWING CONVERTER ANALOG MULTI-LEVEL INTERPOLATION LOW-PASS DELTA-SIGMA FILTER FILTER MODULATOR OVERFLOWING SERIAL POWER SUPPLY INTERFACE DECIMATION DECIMATION & & LOW CUT FILTER CONVERTER LOW CUT FILTER...
  • Page 64: Exploded Views

    ZS-M30 SECTION 7 EXPLODED VIEWS NOTE : • -XX, -X mean standardized parts, so they • The mechanical parts with no reference The components identified by mark 0 may have some difference from the original number in the exploded views are not or dotted line with mark 0 are critical one.
  • Page 65: Front Cabinet Section

    ZS-M30 7-2. FRONT CABINET SECTION SP102 supplied SP101 SP201 SP202 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark X-3379-522-1 CHASSIS ASSY, NET (ORANGE) 3-222-344-01 BUTTON (PLAY) ... (ORANGE) X-3379-574-1 CHASSIS ASSY, NET (WHITE) 3-222-344-11 BUTTON (PLAY) ... (WHITE) X-3379-575-1 CHASSIS ASSY, NET (BLUE) 3-222-344-21 BUTTON (PLAY) ...
  • Page 66: Upper Cabinet Section

    ZS-M30 7-3. UPPER CABINET SECTION S701 supplied LCD1 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 101 A-3347-176-A MAIN BOARD, COMPLETE 1-471-110-11 MAGNET 3-222-467-01 ILLUMINATOR 3-021-020-01 PLATE, CHUCKING 3-222-351-01 HOLDER (LCD) 3-923-736-01 COVER, CD 4-951-620-11 SCREW (2.6X10) , +BVTP...
  • Page 67: Optical Pick-Up Section

    ZS-M30 7-4. OPTICAL PICK-UP SECTION (KSM-213CDP) not supplied not supplied M901 M902 (including M901) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ref. No. Part No.
  • Page 68: Md Section -1

    ZS-M30 7-5. MD SECTION-1 (MT-ZSM30-168) not supplied M103 not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 201 A-3322-905-A MD BOARD, COMPLETE 3-042-588-01 SCREW (1.4X4) , PWH 1-669-180-11 OP FLEXIBLE BOARD 1-757-156-11 CABLE, FLEXIBLE FLAT (9 CORE)
  • Page 69: Md Section -2

    ZS-M30 7-6. MD SECTION-2 (MT-ZSM30-168) M602 not supplied HR901 M601 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark Ref. No.
  • Page 70: Electrical Parts List

    ZS-M30 SECTION 8 BATT (A) BATT (B) CD ELECTRICAL PARTS LIST NOTE : The components identified by mark 0 • Due to standardization, replacements in the • SEMICONDUCTORS In each case, u : µ , for example : or dotted line with mark 0 are critical parts list may be different from the parts uA..
  • Page 71 ZS-M30 D SW DETECTION JACK Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark JC720 1-216-864-91 SHORT R777 1-216-821-11 METAL CHIP 1/16W JC721 1-216-864-91 SHORT R779 1-216-821-11 METAL CHIP 1/16W JC722 1-216-864-91 SHORT R780 1-216-821-11 METAL CHIP 1/16W <...
  • Page 72 ZS-M30 JACK MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < COIL > C103 1-126-963-11 ELECT 4.7uF C104 1-162-927-11 CERAMIC CHIP 100PF L101 1-412-987-41 INDUCTION 4.7uH C105 1-104-664-11 ELECT 47uF L201 1-412-987-41 INDUCTION 4.7uH L301 1-412-987-41 INDUCTION 4.7uH...
  • Page 73 ZS-M30 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C311 1-104-664-11 ELECT 47uF C877 1-164-378-11 CERAMIC CHIP 30PF C319 1-126-960-11 ELECT C878 1-162-915-11 CERAMIC CHIP 10PF 0.5PF C323 1-104-665-11 ELECT 100uF C326 1-126-964-11 ELECT 10uF...
  • Page 74 ZS-M30 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark FB880 1-500-329-21 FERRITE R110 1-216-821-11 METAL CHIP 1/16W R111 1-216-827-11 METAL CHIP 3.3K 1/16W < IC > R112 1-216-821-11 METAL CHIP 1/16W IC301 8-759-426-51 IC BA5417...
  • Page 75 ZS-M30 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R326 1-216-837-11 METAL CHIP 1/16W R855 1-216-817-11 METAL CHIP 1/16W R327 1-216-833-11 METAL CHIP 1/16W R856 1-216-821-11 METAL CHIP 1/16W R328 1-216-833-11 METAL CHIP 1/16W R451...
  • Page 76 ZS-M30 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C517 1-165-176-11 CERAMIC CHIP 0.047uF C616 1-162-964-11 CERAMIC CHIP 0.001uF C617 1-162-927-11 CERAMIC CHIP 100PF C518 1-162-964-11 CERAMIC CHIP 0.001uF C618 1-162-927-11 CERAMIC CHIP 100PF C519 1-162-970-11 CERAMIC CHIP 0.01uF...
  • Page 77 ZS-M30 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark FB622 1-469-125-21 FERRITE < COIL > FB623 1-469-125-21 FERRITE * L501 1-469-532-21 FERRITE FB624 1-469-125-21 FERRITE L502 1-469-967-21 INDUCTOR 10uH FB625 1-469-125-21 FERRITE L503 1-414-771-91 INDUCTOR 10uH...
  • Page 78 ZS-M30 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R516 1-216-819-11 METAL CHIP 1/16W R613 1-216-853-11 METAL CHIP 470K 1/16W R614 1-216-853-11 METAL CHIP 470K 1/16W R517 1-216-833-11 METAL CHIP 1/16W R616 1-216-833-11 METAL CHIP 1/16W...
  • Page 79 ZS-M30 POWER SW(L) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-679-406-21 POWER BOARD C564 1-125-817-11 CERAMIC CHIP 10uF 6.3V C565 1-107-826-11 CERAMIC CHIP 0.1uF ************* < CAPACITOR > < CONNECTOR > C901 1-162-995-11 CERAMIC CHIP 0.022uF...
  • Page 80 ZS-M30 SW(R) TOP TUNER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-679-402-21 SW (R) BOARD R406 1-216-829-11 METAL CHIP 4.7K 1/16W R407 1-216-833-11 METAL CHIP 1/16W ************* R408 1-216-833-11 METAL CHIP 1/16W < CAPACITOR >...
  • Page 81 ZS-M30 TUNER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-162-968-11 CERAMIC CHIP 0.0047uF 10% < COIL > 1-162-962-11 CERAMIC CHIP 470PF 1-424-716-11 COIL, AIR-CORE (FM TRACKING) 1-162-962-11 CERAMIC CHIP 470PF 1-424-717-11 COIL, AIR-CORE 1-162-927-11 CERAMIC CHIP...
  • Page 82 ZS-M30 Ver 1.1 2001.04 TUNER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < TRANSFORMER > ACCESSORIES & PACKING MATERIALS ******************************** 1-433-741-11 TRANSFORMER, IF (AM IF) 1-696-819-11 CORD, POWER (Australian) < TERMINAL > 1-754-102-21 ANTENNA, ROOP (LW.MW)
  • Page 83 ZS-M30...
  • Page 84 ZS-M30 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2001.04...
