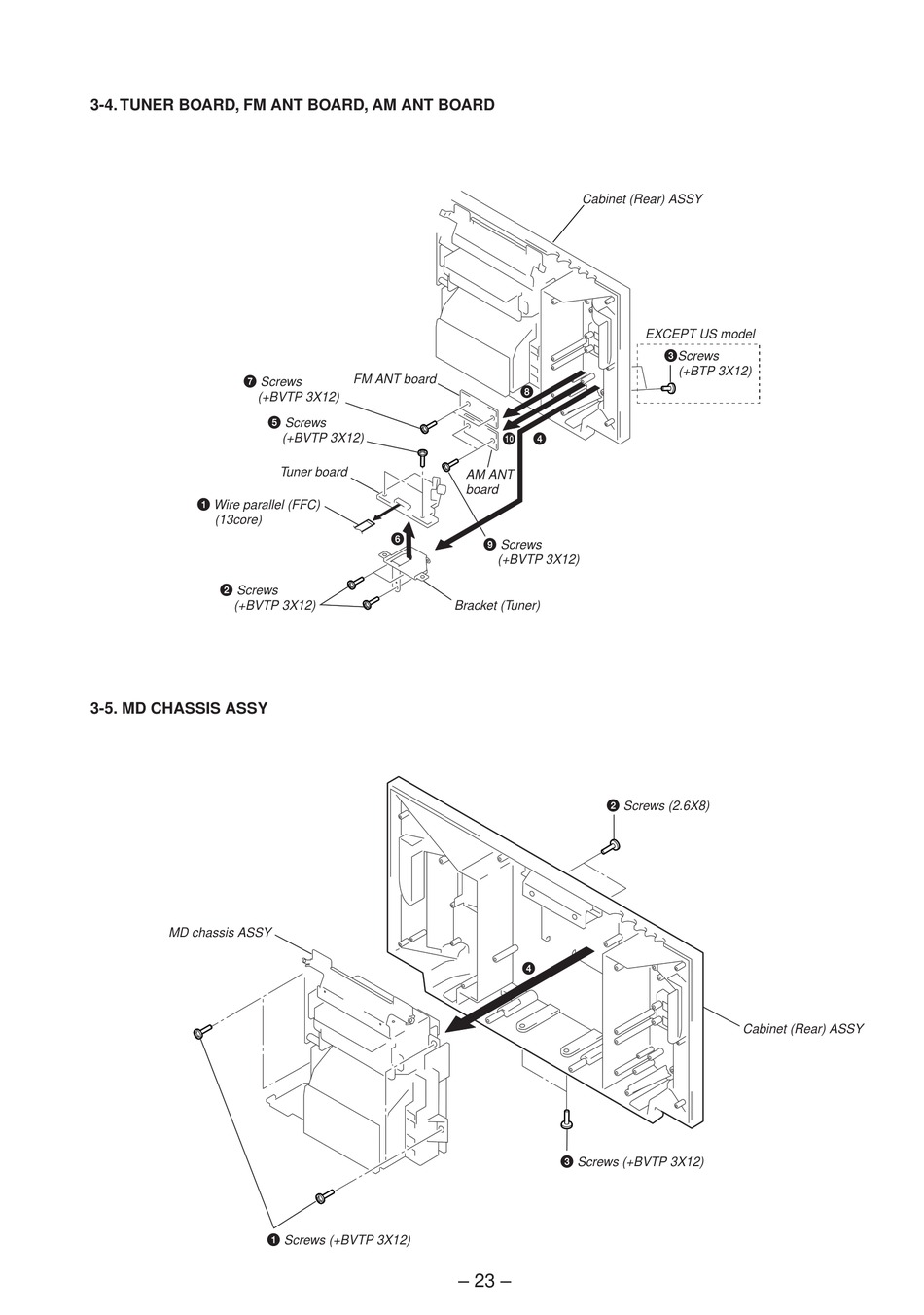

3-4. TUNER BOARD, FM ANT BOARD, AM ANT BOARD

7 Screws
(+BVTP 3X12)
1 Wire parallel (FFC)
(13core)
2 Screws
(+BVTP 3X12)

3-5. MD CHASSIS ASSY

MD chassis ASSY
FM ANT board
5 Screws
(+BVTP 3X12)
Tuner board
6
1 Screws (+BVTP 3X12)
Cabinet (Rear) ASSY
8
!º 4
AM ANT
board
9 Screws
(+BVTP 3X12)
Bracket (Tuner)
2 Screws (2.6X8)
4
3 Screws (+BVTP 3X12)
– 23 –
EXCEPT US model
3 Screws
(+BTP 3X12)
Cabinet (Rear) ASSY
