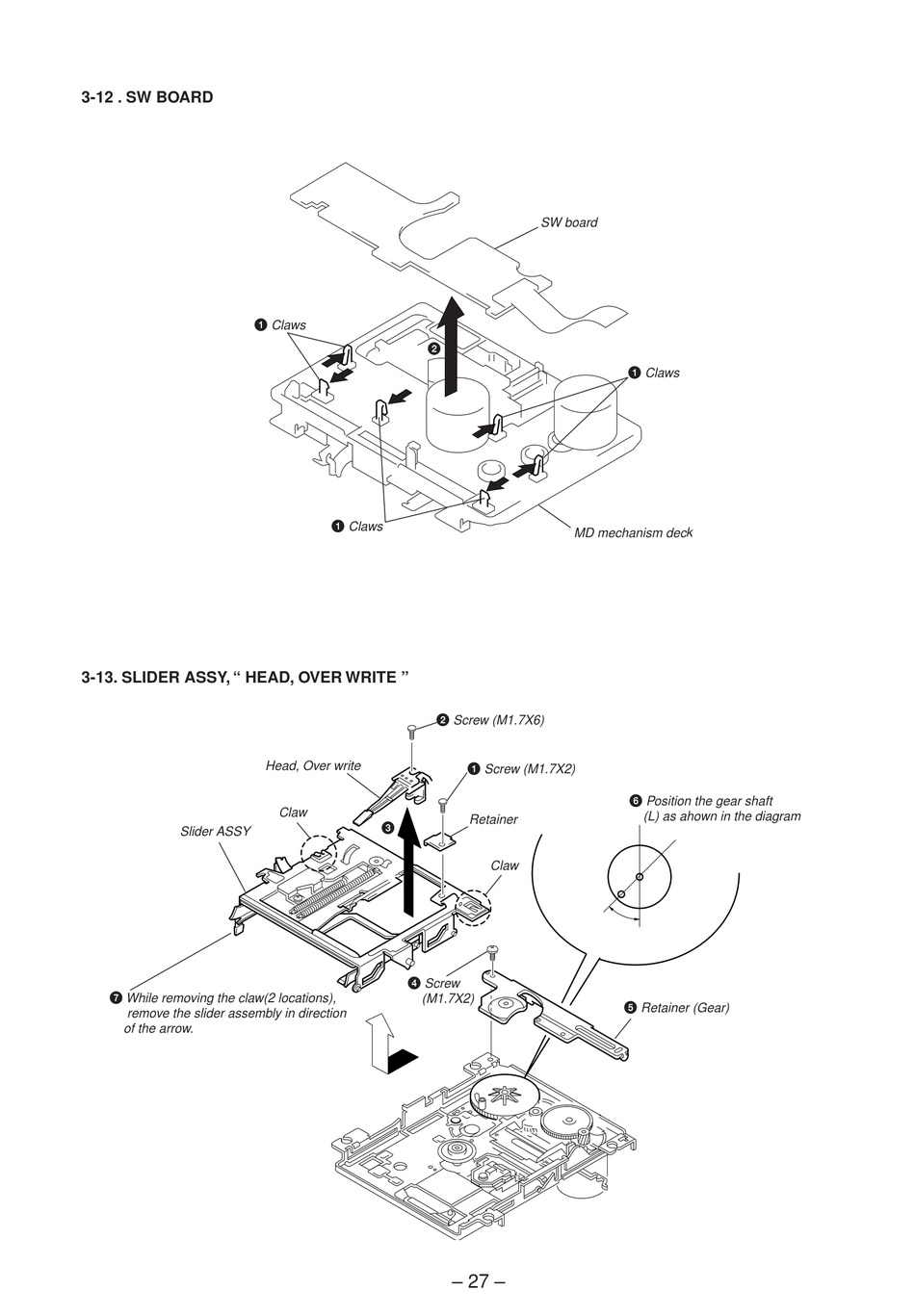

3-12 . SW BOARD
SW board
1 Claws
2
1 Claws
1 Claws
MD mechanism deck
3-13. SLIDER ASSY, " HEAD, OVER WRITE "
2 Screw (M1.7X6)
Head, Over write
1 Screw (M1.7X2)
6 Position the gear shaft
Claw
(L) as ahown in the diagram
Retainer
3
Slider ASSY
Claw
4 Screw
7 While removing the claw(2 locations),
(M1.7X2)
5 Retainer (Gear)
remove the slider assembly in direction
of the arrow.
– 27 –
