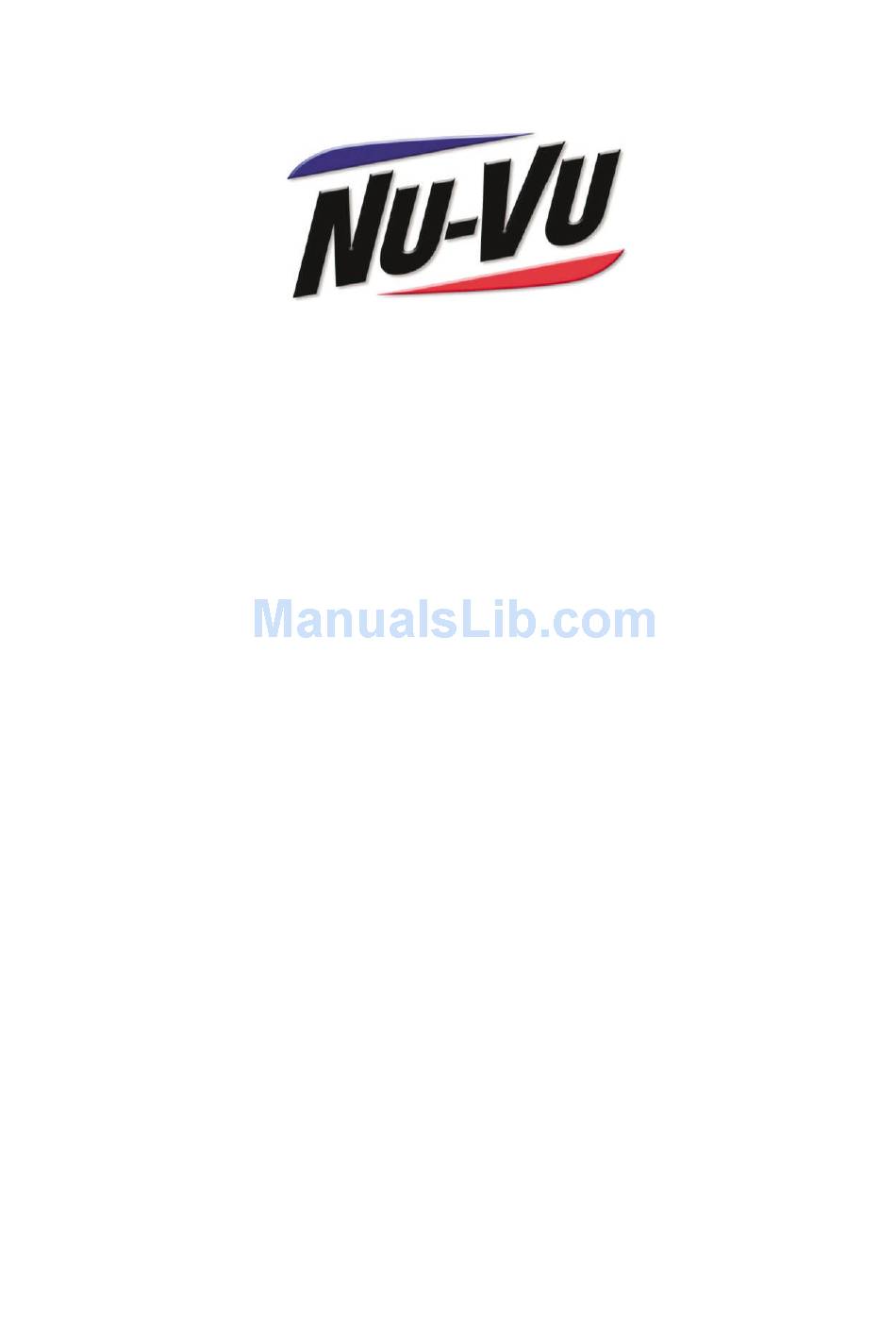

- Page 1 ® NU-VU Model: SUB-123P Oven / Proofer SERVICE AND REPAIR MANUAL Revised: Sept 25, 2009 (SUB-123P-ServiceManual-01d)
- Page 2 (This page is intentionally left blank)
-
Page 3: Table Of Contents
TABLE OF CONTENTS TROBLESHOOTING......................1 Oven problems ......................1 Proofer problems......................2 Controller problems .......................3 WATER FILTER INSTALLATION ..................4 HINGE REVERSAL......................5 Oven Door Hinge Reversal ...................5 Proofer Door Hinge Reversal ..................6 CALIBRATION INSTRUCTIONS ..................7 PARTS LIST.........................8 ELECTRICAL SCHEMATICS ................... 10 - 11... - Page 4 LIST OF ILLUSTRATIONS AND SCHEMATICS Drawing #1 ........Control Header ............1 Drawing #2 ......... Proofer Parts............2 Drawing #3 ........Control Adjustments............ 3 Drawing #4 ........Water Filter Installation ...........4 Drawing #5 ......Oven Door Hinge Reversal ..........5 Drawing #6 ......
- Page 5 (This page is intentionally left blank)
-
Page 7: Trobleshooting
No – Is the oven motor wired correctly? Yes – Replace oven motor assembly No – Correct wiring problem Drawing 1 ® NU-VU FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-0035 Sales Fax (906) 863-5889 ♦ Service Fax (906) 863-6322 (800) 338-9886... -
Page 8: Proofer Problems
To clear the message, press the enter button. After clearing the message, check that the water supply is connected and is turned on. Also verify that the nozzle is spraying water. Drawing 2 ® NU-VU FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-0035 Sales Fax (906) 863-5889 ♦ Service Fax (906) 863-6322... -
Page 9: Controller Problems
How do I adjust the volume on the buzzer?........................ Turn the volume baffle on the buzzer until the desired volume is achieved Drawing 3 ® NU-VU FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-0035 Sales Fax (906) 863-5889 ♦ Service Fax (906) 863-6322... -
Page 10: Water Filter Installation
If the joint leaks when tested, and further gently tightening does not stop the leakage, the compression fitting must be replaced. ® NU-VU FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-0035 Sales Fax (906) 863-5889 ♦ Service Fax (906) 863-6322... -
Page 11: Hinge Reversal
12. Re-install the oven door using the hinges bolts that you removed in step 2 earlier. 13. The door should now be tested to insure that it seals properly. (Refer to Door Test Procedure) ® NU-VU FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-0035 Sales Fax (906) 863-5889 ♦... -
Page 12: Proofer Door Hinge Reversal
Phillips screwdriver 3/8” wrench Reversible drill (corded or cordless) #30 drill bit (can be ordered from Nu-Vu, P/N 51-0624) 5/32” drill bit (can be ordered from Nu-Vu, P/N 51-0194) 10-32 tap (can be ordered from Nu-Vu, P/N 51-0296) Parts required: Hinges (2 required) 11/64”... -
Page 13: Calibration Instructions
4. If the temperatures are the same the unit is properly calibrated and ready for use. If the temperatures are not the same, repeat the calibration process beginning with step 4. ® NU-VU FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-0035 Sales Fax (906) 863-5889 ♦... -
Page 14: Parts List
REPLACEMENT PARTS LIST SUB–123P SERVICE AND REPAIR MANUAL REPLACEMENT PARTS LIST (SUB-123P) Reference # Description Replacement Part # ELECTRICAL COMPONENTS - - Power Terminal Block ......................... 50-0237 Ground Lug ..........................50-1329 Contactor: 120-volt coil, 40-amp (US)..................... 66-2013 Programmable Controller Assembly ...................112-9153 Oven Temperature Sensor ...................... - Page 15 Water Inlet Bulkhead (Automist only) ..................31-0058 Drain Pan ............................. 50-0547 Side Panel ..........................112-0066-1-A Water Filter Assembly (Automist only) ..................112-9166 Drip Trough Assembly........................ 135-9950 ® NU-VU FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-0035 Sales Fax (906) 863-5889 ♦ Service Fax (906) 863-6322 (800) 338-9886 page...
-
Page 16: Electrical Schematics
ELECTRICAL SCHEMATICS SUB–123 SERVICE AND REPAIR MANUAL ® NU-VU FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-0035 Sales Fax (906) 863-5889 ♦ Service Fax (906) 863-6322 (800) 338-9886 page... -
Page 17: Electrical Schematics
SUB–123 SERVICE AND REPAIR MANUAL ELECTRICAL SCHEMATICS ® NU-VU FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-0035 Sales Fax (906) 863-5889 ♦ Service Fax (906) 863-6322 (800) 338-9886 page... -
Page 18: Exploded Views
EXPLODED VIEWS SUB–123 SERVICE AND REPAIR MANUAL ® NU-VU FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-0035 Sales Fax (906) 863-5889 ♦ Service Fax (906) 863-6322 (800) 338-9886 page... -
Page 19: Exploded Views
SUB–123 SERVICE AND REPAIR MANUAL EXPLODED VIEWS ® NU-VU FOOD SERVICE SYSTEMS MENOMINEE, MICHIGAN 49858-0035 Sales Fax (906) 863-5889 ♦ Service Fax (906) 863-6322 (800) 338-9886 page...
