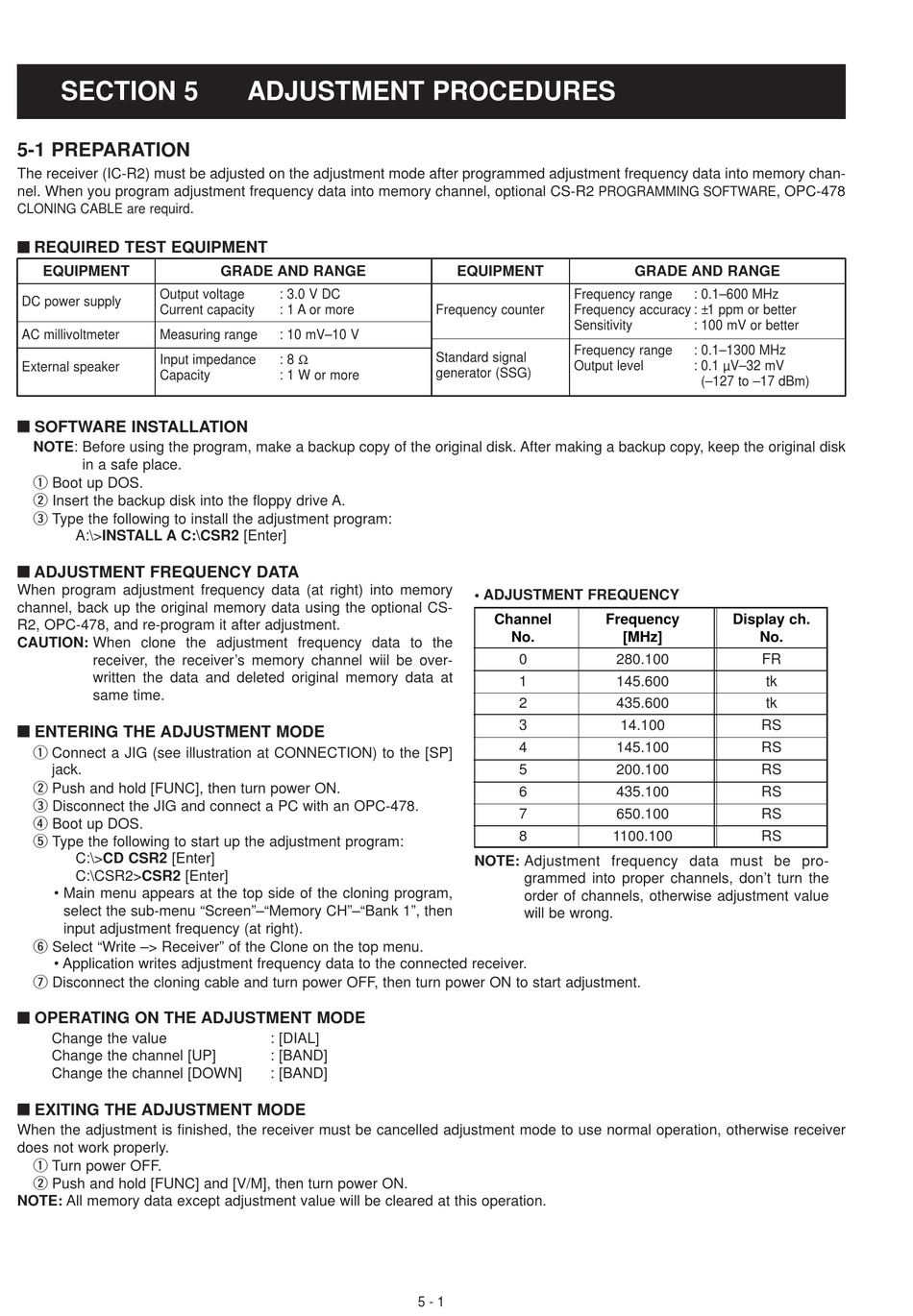

SECTION 5

5-1 PREPARATION

The receiver (IC-R2) must be adjusted on the adjustment mode after programmed adjustment frequency data into memory chan-
nel. When you program adjustment frequency data into memory channel, optional CS-R2
CLONING CABLE are requird
' ' REQUIRED TEST EQUIPMENT
EQUIPMENT
Output voltage
DC power supply
Current capacity
AC millivoltmeter Measuring range
Input impedance
External speaker
Capacity
' ' SOFTWARE INSTALLATION
NOTE: Before using the program, make a backup copy of the original disk. After making a backup copy, keep the original disk
in a safe place.
q Boot up DOS.
w Insert the backup disk into the floppy drive A.
e Type the following to install the adjustment program:
A:\>INSTALL A C:\CSR2 [Enter]
' ' ADJUSTMENT FREQUENCY DATA
When program adjustment frequency data (at right) into memory
channel, back up the original memory data using the optional CS-
R2, OPC-478, and re-program it after adjustment.
CAUTION: When clone the adjustment frequency data to the
receiver, the receiver's memory channel wiil be over-
written the data and deleted original memory data at
same time.
' ' ENTERING THE ADJUSTMENT MODE
q Connect a JIG (see illustration at CONNECTION) to the [SP]
jack.
w Push and hold [FUNC], then turn power ON.
e Disconnect the JIG and connect a PC with an OPC-478.
r Boot up DOS.
t Type the following to start up the adjustment program:
C:\>CD CSR2 [Enter]
C:\CSR2>CSR2 [Enter]
• Main menu appears at the top side of the cloning program,
select the sub-menu "Screen"–"Memory CH"–"Bank 1", then
input adjustment frequency (at right).
y Select "Write –> Receiver" of the Clone on the top menu.
• Application writes adjustment frequency data to the connected receiver.
u Disconnect the cloning cable and turn power OFF, then turn power ON to start adjustment.
' ' OPERATING ON THE ADJUSTMENT MODE
Change the value
Change the channel [UP]
Change the channel [DOWN]
' ' EXITING THE ADJUSTMENT MODE
When the adjustment is finished, the receiver must be cancelled adjustment mode to use normal operation, otherwise receiver
does not work properly.
q Turn power OFF.
w Push and hold [FUNC] and [V/M], then turn power ON.
NOTE: All memory data except adjustment value will be cleared at this operation.
ADJUSTMENT PROCEDURES
.
GRADE AND RANGE
: 3.0 V DC
: 1 A or more
: 10 mV–10 V
: 8 Ω
: 1 W or more
: [DIAL]
: [BAND]
: [BAND]
EQUIPMENT
Frequency range
Frequency counter Frequency accuracy : ±1 ppm or better
Sensitivity
Frequency range
Standard signal
Output level
generator (SSG)
• ADJUSTMENT FREQUENCY
Channel
No.
0
1
2
3
4
5
6
7
8
NOTE: Adjustment frequency data must be pro-
grammed into proper channels, don't turn the
order of channels, otherwise adjustment value
will be wrong.
5 - 1
PROGRAMMING SOFTWARE
GRADE AND RANGE
: 0.1–600 MHz
: 100 mV or better
: 0.1–1300 MHz
: 0.1 µV–32 mV
(–127 to –17 dBm)
Frequency Display ch.
[MHz] No.
280.100 FR
145.600 tk
435.600 tk
14.100 RS
145.100 RS
200.100 RS
435.100 RS
650.100 RS
1100.100 RS
, OPC-478
