ASSEMBLY INSTRUCTIONS

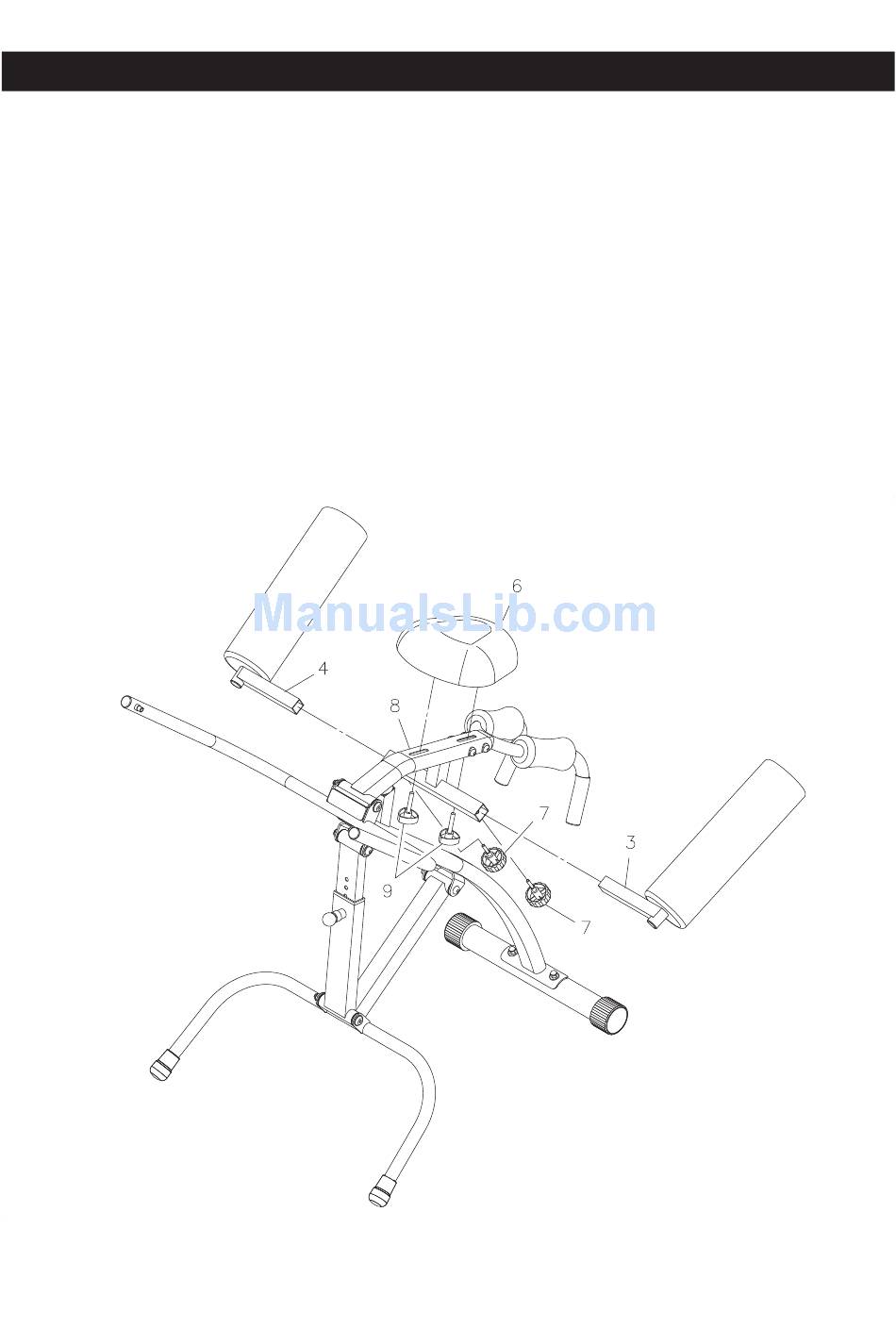

STEP 7
Attach the CUSHION(6) to the SWING ARM(8) with the LOCKING KNOBS(9).
STEP 8
Insert the LEFT and RIGHT ARM PAD TUBES(3, 4) into both sides of the SWING ARM(8) and lock in
position with the ADJUSTMENT KNOB(7).
NOTE: The pin of the ADJUSTMENT KNOBS(7) must be inserted into one of the adjustment holes in
the LEFT and RIGHT ARM PAD TUBES(3, 4) and use the same adjustment hole position on
both sides.
10
