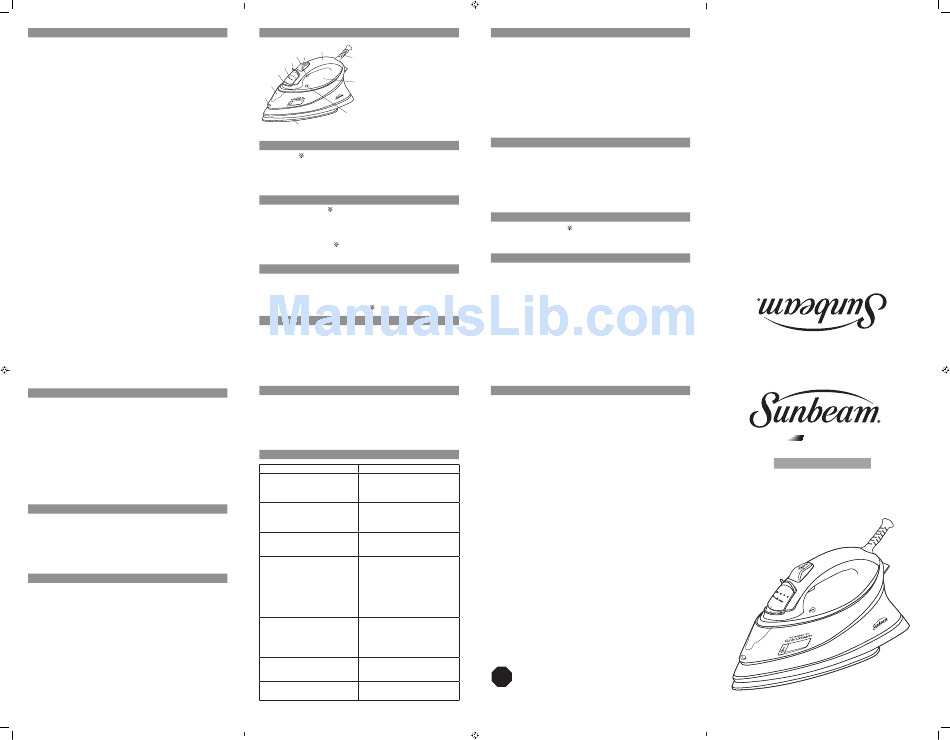

Sunbeam Turbo Steam Master Proffesional Instruction Manual

i s
mportant aFeguarDs
When using electrical appliances, basic safety precautions should always be
followed including the following:
Read All Instructions Before Use
• Use iron only for its intended use.
• To protect against risk of electric shock, do not immerse the iron in water or other liquids.
• T he Fabric Select Dial and Steam Lever should always be turned to OFF before plugging or unplugging
from outlet. Never yank cord to disconnect from outlet; instead, grasp plug and pull to disconnect.
• D o not allow cord to touch hot surfaces. Let iron cool completely before storing. Loop cord loosely around
iron when storing.
• A lways disconnect iron from electrical outlet when filling with water, cleaning, emptying or when not in use.
• D o not operate iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of
electric shock, do not disassemble the iron. Take it to an authorized service center for examination and/or
repair. Incorrect reassembly can cause a risk of electric shock when iron is used.
• C lose supervision is necessary for any appliance being used by or near children. Do not leave iron
unattended while plugged in, turned on or on an ironing board.
• B urns can occur from contact with hot metal parts, hot water or steam. Use caution when you turn a steam
iron upside down – there may be hot water in the reservoir.
• I f the iron is not operating normally, disconnect from the power supply and have the iron serviced by an
authorized service center or call Customer Service at 1 (800) 458-8407.
• Y our SUNBEAM ® iron is designed to rest on the heel rest. Do not leave the iron unattended.
Do not set the iron on an unprotected surface, even if it is on the heel rest.
• T his is a high wattage appliance. To avoid a circuit overload, do not operate another high wattage
appliance on the same circuit.
• I f an extension cord is absolutely necessary, a 15-ampere cord should be used. Cords rated
for less amperage may overheat. Care should be taken to arrange the extension cord so that
it cannot be pulled or tripped over.
F P P u s c
or roducts urchased in the nited tates and anada
To reduce the risk of electrical shock, this appliance has a polarized plug (one blade is wider
than the other). This plug fits a polarized outlet only one way; if the plug does not fit fully
into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this
safety feature.
SAVE THESE INSTRUCTIONS
m y i
aintaining our ron
c s : Clean with an all-cotton cloth if starch or other residues accumulate after iron is
leaning oleplate
unplugged and cool.
WARNING: Do not immerse in liquids or use abrasive cleansers, scouring pads or vinegar to clean the soleplate.
This will damage the finish.
u s -c F : Use the Self-Clean feature once a month to maintain optimal iron performance.
sing elF lean eature
1. Turn off and unplug iron.
2. Move Steam Lever/Knob back and forth to remove debris and minerals from Steam Valve. This keeps water
flowing into the steam chamber.
3. Fill water reservoir with tap water to MAX line.
4. Plug in iron, set Fabric Select Dial to Linen and heat until the indicator light turns green.
5. Turn off and unplug iron. Holding iron over a sink in a horizontal position, press Self-Clean Button and hold. Water
will begin dripping from the steam vents. Slowly rock iron side to side and front to back for 30 seconds. Dip nose
of the iron slightly below the rear to circulate water. Release Self-Clean Button after one minute.
6. Open fill cap and empty remaining water. Carefully dry soleplate with a towel.
7. Plug in iron and set Fabric Select Dial to Linen and Heat for 2 minutes to dry out completely. Set Fabric Select
Dial to Off, unplug the iron, and allow to cool.
a -c s
(select models only)
nti alcium ystem
Anti-calcium is a permanent system located inside the water reservoir to eliminate impurities.
t p e , F t s o m After Every 30 Uses:
o rolong FFiciency olloW hese teps nce a onth or
1. Turn off iron.
2. Add 1 teaspoon of salt to ¾ cup water and fill water reservoir with this solution.
3. Leave solution in water reservoir for 15 minutes, shake occasionally, and then empty through the fill hole or
through the "clean method".
4. Fill water reservoir again with salt water solution, shake and empty after 15 minutes.
5. Fill water reservoir with fresh water to rinse and empty.
i t
roning ips
• Before ironing, check the garment label and follow manufacturer's instructions. If no instructions, start with a low-heat
setting and test by ironing a small area, and gradually increase heat.
• Sort garments by fabric type. Iron articles requiring a low-temperature setting and gradually work up the temperature range.
• When changing from a high-temperature setting to a lower one, allow 5 minutes for change.
• When steam ironing, use long, slow passes over the fabric to allow the steam to penetrate the fabric and the heat of
the soleplate to dry the moisture.
• Iron linen garments inside out to prevent shine. An ironing cloth or cotton fabric can be used to reduce shine.
• If the garment is lined, use a low heat setting.
• Ensure zippers are closed and flap is flat. Iron over the flap, holding the garment taut.
• Spray starch makes the job easier.
IRONING SHIRTS
• Begin with the collar and work toward the middle from the outer edges. Iron lengthwise, not in circles.
• Lay shoulder over narrow edge of the board and iron one side of the front. Then iron the shoulder, across the back
(below the collar line), the other shoulder and the remainder of the front.
• Iron sleeves and cuffs, working down from the underarm seams. To remove creases, shift the double layer of sleeve
fabric and iron out.
• Iron body of garment, from half of the front around the back, then second half of front. If your shirt does not open, slip
over end of ironing board and iron front and back in turn.
Turbo Steam_12ESM1.indd 1
F

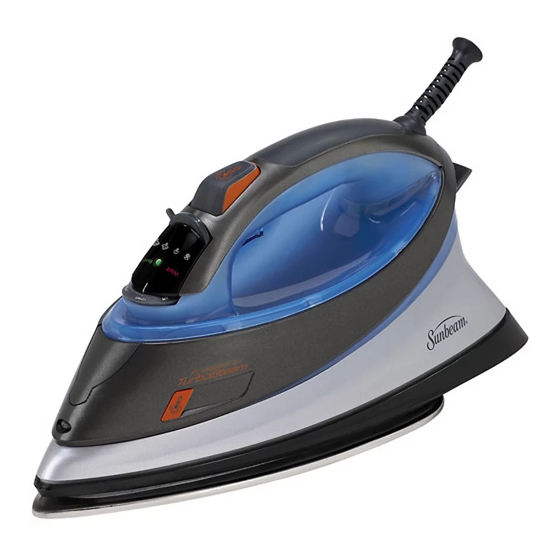

eatures
1. SPRAY MIST ® Release
2. Covered Water Fill Hole
8
7
6 3. Fabric Select Dial
9
5 4. Wait / Ready Indicator
4
5. Steam Lever
3
6. SPRAY MIST ® Trigger
10 7. SHOT OF STEAM ® / Vertical Steam Button
2
8. Soft Grip Handle
1 9. Power Cord
10. See-Through Water Reservoir / Maximum Fill
Line
11
11. Self Clean Button
12. Soleplate
12
13. Anti-Calcium System (select models only) (not
shown)
F W r (use tap water)
illing ater eservoir
1. Turn Steam Lever to (Dry) and Fabric Select Dial to Off. Unplug.
2. Lift the Water Fill Hole Cover. Use any easy-pour measuring cup to fill the water reservoir with tap water through
the water fill hole. Do not fill water reservoir beyond maximum fill line.
3. Close the Water Fill Hole Cover completely after filling.
WARNING: To prevent the risk of burns, be careful when filling a hot iron with water. Hot metal parts, hot water and
steam can cause injuries.
D i
ry roning
1. Ensure Steam Lever is turned to the (Dry) setting.
2. Plug the cord into a 120-Volt AC outlet. The red "Wait" indicator light will be illuminated if the iron has not reached
its set temperature.
3. Turn Fabric Select Dial to desired setting. Allow iron to heat on its heel rest on a stable and protected surface, until the
indicator light turns green "Ready" indicating that the iron is ready.
NOTE: While Steam Lever is turned to the
(Dry) setting, you may still use the SHOT OF STEAM ® or SPRAY
MIST ® features, as long as the Fabric Select Dial is set to wool, cotton, or linen. Water reservoir must be at least ¼
full of water.
s i
team roning
1. Fill Water Reservoir and plug the cord into a 120-Volt AC outlet. The red "Wait" indicator light will be illuminated if
the iron has not reached its set temperature.
2. Turn the Fabric Select Dial to desired setting. Allow the iron to heat on its heel rest on a stable and protected surface,
until the indicator light turns green "Ready" indicating that the iron is ready. Turn steam control to desired setting.
IMPORTANT: When not ironing, always set the Steam Lever to (Dry) and the Fabric Select Dial to OFF.
s F
pecial eatures
s m ® F
pray ist eature is a powerful water spray mist that dampens the fabric to aid in removing
wrinkles from heavy fabrics and for setting creases.
TO USE: Press the Spray Mist ® Trigger firmly.
i t (continued)
roning ips
IRONING PANTS
• Begin with the waistband and inseam area, then pockets and cuffs.
• Pull waistband on pointy end of the board, as if you're "dressing" the ironing board. Iron upper-front part of the pants,
including the waistband.
• Place pants parallel to ironing board lengthwise so both legs are facing the same direction. Iron each leg by moving
the iron back and forth along the pant leg.
• Take cuff of the leg and bring it over towards the waistband to iron the inner part of the leg. Repeat these 2 steps for
the second leg.
Trouble Shooting
PROBLEM CAUSE/SOLUTION
"Ready" indicator light is blinking • The light blinks to indicate that the iron auto-off
function has been activated
• To stop blinking and reset, move the iron back
and forth and allow to re-heat until the indicator
light turns green.
Iron is not heating • Ensure the iron is on and the "Wait" or "Ready"
indicator light is illuminated
• Verify unit is plugged in
• Adjust fabric dial to the correct setting for your
garments
Iron will not steam • Ensure water tank level is at least ¼ full
• Ensure steam lever is switched on
• Press Shot of Steam button several times to
prime
Iron is leaking • Only fill with water to the MAX level
• Allow to heat for at least 2 minutes before use,
and wait until the indicator light "Ready" has
turned green to indicate that it is ready.
• Shot of Steam has been pressed too frequently.
Only use shot of steam in 3 second intervals or
less
• Shot of Steam used with incorrect fabric setting.
Only use with Wool, Cotton or Linen settings
• Empty water tank after each use and turn steam
lever off
Iron leaves spots/flakes on clothing • Empty water tank completely after each use
• Clean soleplate when cool with a wet, damp
cloth
• Use self-cleaning feature once a month
• Refer to the Anti-Calcium System section (select
models only)
• Ensure water cup used to fill the iron is clean
Wrinkles are not sufficiently removed • Check that the temperature dial is set to the
correct fabric setting
• Use Shot of Steam or Spray Mist features to
help remove stubborn wrinkles
Fabrics are getting an unwanted "shine" • Use an ironing cloth or a 100% white cotton fabric
and place it between the garment being ironed and
the iron to prevent "shine"
s F (continued)
pecial eatures
®
s s F
hot oF team eature provides an extra burst of steam for deep penetration of stubborn
wrinkles. You can use this feature while Dry or Steam ironing as long as the Fabric Select Dial is set to wool, cotton,
or linen. The water reservoir must be at least ¼ full of water.
TO USE: Place the iron on top of the wrinkle and press the Shot of Steam ® button each time you would like an extra
burst of steam. The Shot of Steam ® feature may be used continuously in approximately 3-second intervals.
v s
ertical team allows iron to function as a garment steamer.
TIP: When using vertical steam, hang clothing on a hanger for best results. Hanging curtains and drapes may also
be steamed.
TO USE:
1. Ensure that the iron is heated up and the Ready indicator light is turned green.
2. Hold iron vertically near, but not touching the fabric you want to steam. Pull the fabric tight.
3. Press Shot of Steam button in 3-second intervals as you move iron over wrinkles.
®
WARNING: To prevent burns, keep hands away from the area being steamed.
WARNING: DO NOT steam garments while wearing them; this may result in injuries.
3-W m s a -o F
ay otion mart ® uto FF eature
When iron is plugged in, the red "Wait" indicator light illuminates, indicating there is power to iron.
IF YOU LEAVE IRON ON:
• H orizontally without moving it, or accidentally tip the iron over, it will automatically stop heating after 30 seconds.
The green "Ready" indicator light will blink to indicate the iron has stopped heating.
• V ertically (on its heel rest) without moving it, the iron will automatically turn off after 15 minutes. The green "Ready"
indicator light blinks to indicate the iron has stopped heating.
IMPORTANT: The green "Ready" indicator light will continue to blink until the iron is unplugged or reset.
TO RESET: Move iron back and forth and reheat until the "Ready" indicator light turns green.
c y i a u
aring For our ron Fter se
TURNING OFF IRON: Turn Steam Lever to (Dry) and Fabric Select Dial to Off. Unplug.
WARNING: NEVER yank power cord when unplugging iron. This can damage the cord.
Empty water reservoir completely after each use.
s y i
toring our ron
1. Turn off iron, unplug and allow to cool.
2. Empty water reservoir after each use for a longer iron life.
3. Loosely loop the power cord around the heel rest and store the iron on its heel rest. IMPORTANT: Wrapping the
cord around the iron too tightly can damage the cord.
1 Year Limited Warranty
Sunbeam Products, Inc. doing business as Jarden Consumer Solutions or if in Canada, Sunbeam Corporation
(Canada) Limited doing business as Jarden Consumer Solutions (collectively "JCS") warrants that for a period of
one year from the date of purchase, this product will be free from defects in material and workmanship. JCS, at its
option, will repair or replace this product or any component of the product found to be defective during the warranty
period. Replacement will be made with a new or remanufactured product or component. If the product is no
longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive
warranty. DO NOT attempt to repair or adjust any electrical or mechanical functions on this product. Doing so will
void this warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.
Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. JCS dealers, service
centers, or retail stores selling JCS products do not have the right to alter, modify or any way change the terms and
conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or
misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly,
repair or alteration by anyone other than JCS or an authorized JCS service center. Further, the warranty does not
cover: Acts of God, such as fire, flood, hurricanes and tornadoes.
What are the limits on JCS's Liability?
JCS shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or
statutory warranty or condition.
Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a
particular purpose is limited in duration to the duration of the above warranty.
JCS disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise.
JCS shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use
the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of
contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.
Some provinces, states or jurisdictions do not allow the exclusion or limitation of incidental or consequential
damages or limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to
you.
This warranty gives you specific legal rights, and you may also have other rights that vary from province to province,
state to state or jurisdiction to jurisdiction.
How to Obtain Warranty Service
In the U.S.A.
If you have any question regarding this warranty or would like to obtain warranty service,
please call 1.800.458.8407 and a convenient service center address will be provided to you.
In Canada
If you have any question regarding this warranty or would like to obtain warranty service,
please call 1.800.667.8623 and a convenient service center address will be provided to you.
In the U.S.A., this warranty is offered by Sunbeam Products, Inc. doing business as Jarden Consumer Solutions
located in Boca Raton, Florida 33431. In Canada, this warranty is offered by Sunbeam Corporation (Canada) Limited
doing business as Jarden Consumer Solutions, located at 20 B Hereford Street, Brampton, Ontario L6Y 0M1. If you
have any other problem or claim in connection with this product, please write our Consumer Service Department.
PLEASE DO NOT RETURN THIS PRODUCT TO ANY OF THESE ADDRESSES
OR TO THE PLACE OF PURCHASE.
STOP
For product questions visit us online at www.sunbeam.com or call 800-458-8407.
GCDS-SUN26870-PH
China en Impreso China
Planchado
de Sugerencias y Planchado de Guía una para www.sunbeam.com Visite
Tips Ironing and Guide Ironing an for www.sunbeam.com Visit
33431. Florida Raton, Boca Solutions, Consumer Jarden de
nombre el bajo operando Inc. Products, Sunbeam por Distribuido reservados. derechos los
Solutions. Consumer Jarden de nombre el bajo operando Inc. Products, Sunbeam 2012
www.sunbeam.com
1.800.667.8623 Canadá:
1.800.458.8407 EE.UU.:
Service Consumer Sunbeam
llame: productos los sobre preguntas Para
33431. Florida Raton, Boca Solutions, Consumer Jarden
as business doing Inc. Products, Sunbeam by Distributed reserved. rights All
Solutions. Consumer Jarden as business doing Inc. Products, Sunbeam 2012 ©
www.sunbeam.com
1.800.667.8623 Canada:
1.800.458.8407 USA:
Service Consumer Sunbeam
questions: product For
TURBO TURBO
Steam Master
P R O F E S S I O N A L
®
Irons
Instruction Manual
Planchas
Manual de Instrucciones
www.sunbeam.com P.N. 161816
in Printed
Todos
©
9/7/12 9:19 AM
