Back Speaker: Connect to back speakers while in 8
channel mode (via external amplifier)
S/PDIF IN
•
S/PDIF IN: Connect to digital output of external
audio device via an Optical S/PDIF cable (cable not
included)
•
S/PDIF OUT: Connect to digital input of external
audio device via an Optical S/PDIF cable (cable not
included). Does not support Line In playback
•
USB Connector: Plugs into the system's USB port
•
MIC (L) IN: Connects to either mono microphone
or left channel of a stereo microphone
•
MIC (R) IN: Connects to the right channel of a
stereo microphone
4
S/PDIF OUT

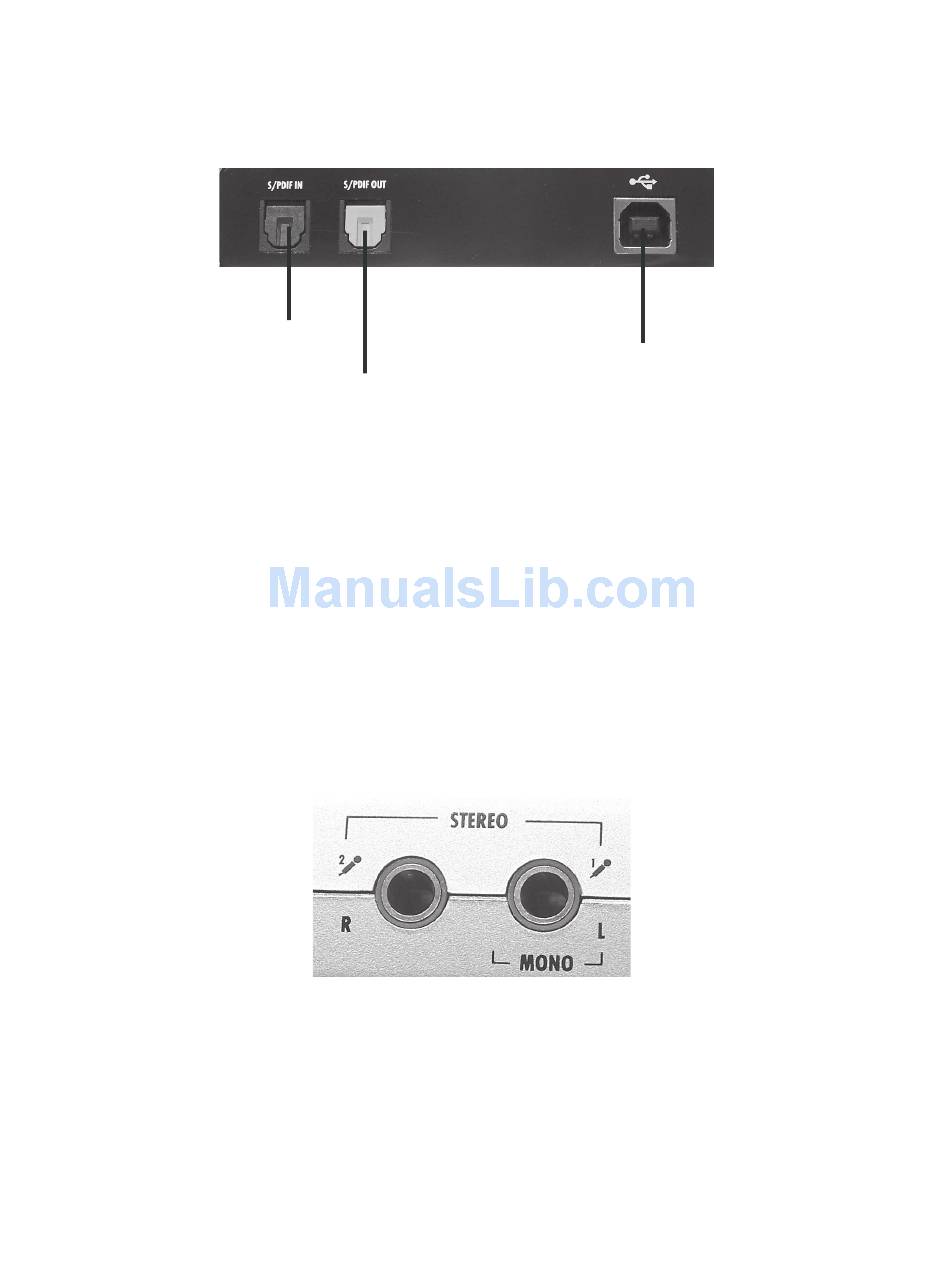

Figure 3: Rear connector
Figure 4: Side connector
USB Connector
