• Power/Activity LED: The LED will be on when the
USB SoundWave 7.1 Digital is powered up. The LED
will blink when activity is detected
• Headphone: Connect to your headphones
• Line In: Connect to MP3 player/CD/DVD Player,
or other audio sources for playback*, mixing and/
or recording. *Playback through S/PDIF Out not
supported
• Front Speaker: Connect to front speakers (via
external amplifier)
• Surround Speaker: Connect to surround speakers
while in 4/6/8 channel modes (via external
amplifier)
• Center/Bass Speaker: Connect to center/bass
speakers while in 6/8 channel modes (via external
amplifier)
Front
Speaker
Headphone
Line In

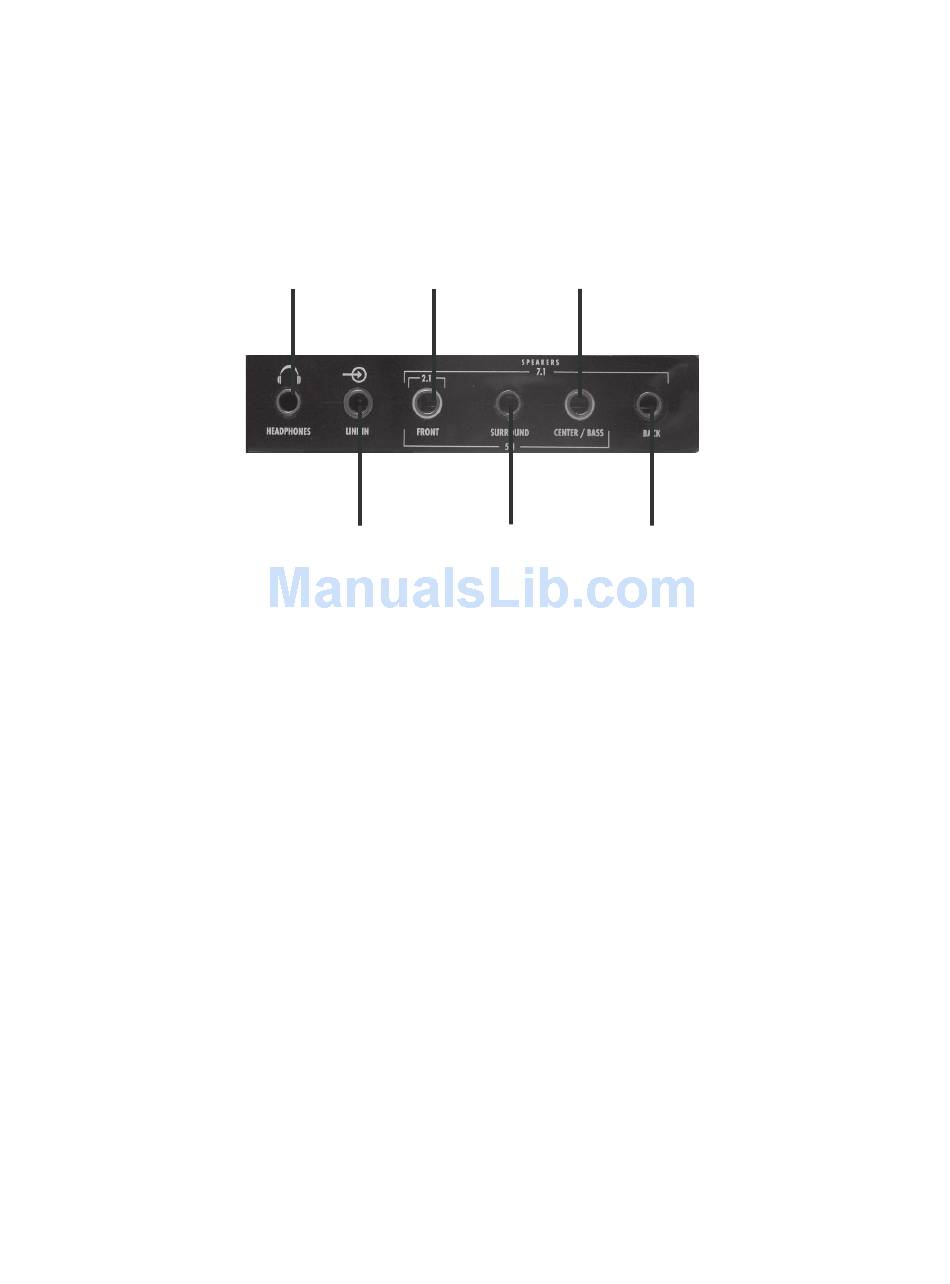

Figure 2: Front connector
Center/Bass
Speaker
Surround
Back Speaker
Speaker
