Package Contents - SIIG USB SoundWave 7.1 Digital Quick Installation Manual

Package Contents

• USB SoundWave 7.1 Digital
• USB cable
• Software CD
• Quick installation guide
Layout
Power/Activity LED
• Volume Mute: Press this button to mute/un-mute
audio outputs. Does not support S/PDIF Out
• Microphone Mute: Press this button to mute/un-
mute microphone recording. Does not mute
microphone playback feature
• Volume (+, -): Increases or decreases audio output
volume. Does not support S/PDIF Out
• Microphone Mute LED: When the microphone is
muted, the LED will turn on
2
Microphone
Mute LED

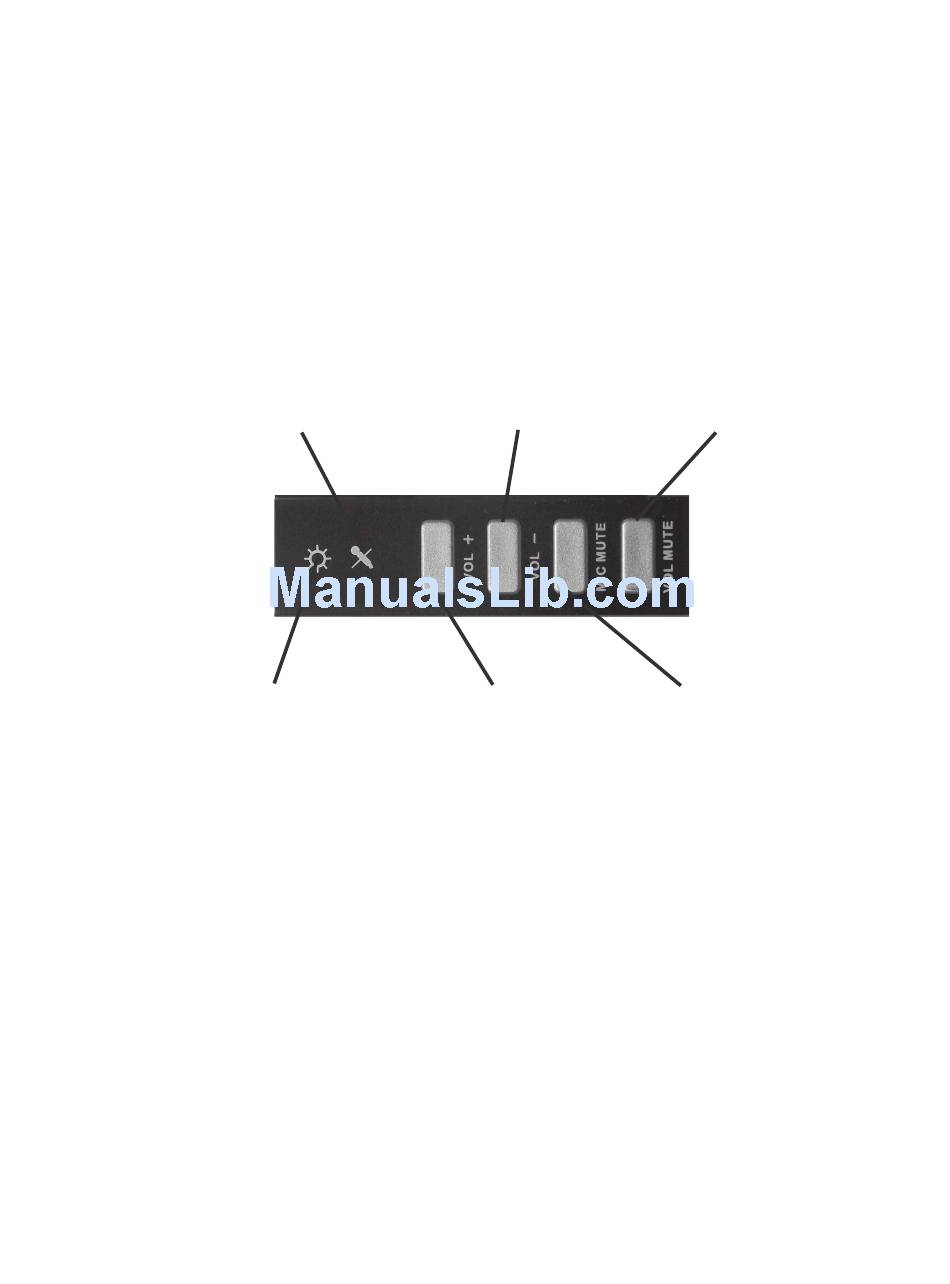

Figure 1: Top view
Volume Down
Volume Up
Microphone Mute
Volume Mute
