Page 1 Océ TDS400 Digital Multifunctional System User Manual...
Page 2 Océ-Technologies B.V. This manual contains a description of the Océ TDS400 and the copying that can be done with it. The introduction (chapter 1) contains a general description of the working methods for using the copier and it is recommended that you read at least this chapter.
Page 3: Table Of Contents
Printer operator panel 22 Display 23 Menu level indicator 23 Buttons 24 How to turn on and turn off the Océ TDS400 printer 25 Cancel a print 26 Menu structure 27 Media type and size on the printer 27 Manual feed 29...
Page 4 The buttons 45 The display 46 Menu level indicator 47 Copy jobs 48 Turn on and turn off the Océ TDS400 scanner 49 Start the copy process 50 Make copies 50 Number of copies 51 Select the use of roll 1 or roll 2 or manual feed 52...
Page 5 Tree view 74 Table view 74 Actions from the Scan Manager 76 Destinations 76 Scanned files 79 Manage the temporary store 81 How to retrieve scanned files? 82 Get files via FTP 83 Océ View Station (LT) 84 Menu options 85 Function buttons 86 View error 87 Chapter 5...
Page 6 The account logging option 138 1 Enable the Account logging option 138 2 The account log file 138 3 Make copy, print, or scan jobs 139 4 How to retrieve the account files 140 Océ TDS400 Digital Multifunctional System User Manual...
Page 7 Automatic format selection 182 Summary of standard zoom formats 183 Appendix B Safety information Instructions for safe use 186 Safety data sheets 188 Safety data sheet Océ TDS400 printer 189 Safety data sheet Océ TDS400 printer and scanner 190 Contents...
Page 8 Safety data sheet Océ OPC drum 195 Safety data sheet Océ Cleaner A 197 EPA Energy Star® 199 Appendix C Miscellaneous Notation conventions 202 Reader’s comment sheet 203 Addresses of local Océ organisations 205 Index 207 Océ TDS400 Digital Multifunctional System User Manual...
Page 9: Introduction
Océ TDS400 Digital Multifunctional System User Manual Chapter 1 Introduction This chapter contains a general introduction to the Océ TDS400. This chapter describes the main features, the options and the software applications provided with the system.
Page 10: About This Manual
Describes how to view Chapter 7: Océ Power Logic®: The Queue Manager and manage jobs in the Océ TDS400 print queue, inbox queue, and history queue. It shows how to cancel the active print and how to delete the prints, how to hold the print jobs in the queue, how to restart the jobs, and how to move jobs to top.
Page 11 Océ TDS400. Contains the product specifications for the Appendix A: Summary and tables Océ TDS400, a list of available material types and sizes. Contains the approved weight limits, Appendix B: Safety information instructions for safe use, the available safety data sheets and the correct ®...
Page 12: The Océ Tds400

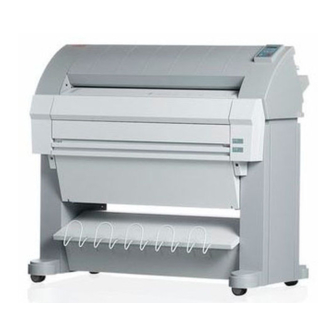

The Océ TDS400 The Océ TDS400 is a wide format, black and white, multifunctional system to print, to scan and to copy wide format documents. The system includes a printer (1 or 2 rolls) a controller and an optional scanner.
Page 13: The Océ Tds400 Concept And Components
Only use material as specified in ‘List of available material types and Note: sizes’ on page 180. The Océ TDS400 is a 600 DPI LED printer with a speed of 3 meters per minute. You can perform a number of activities at the Océ TDS400 printer. You can set the media type and size, stop a print job or select your preferred language from the printer operator panel (see chapter 2, ‘Use the Océ...
Page 14: The Océ Power Logic® Controller
The spool memory allows many users to send the print jobs to the Océ TDS400 at the same time. The print jobs are put in the print queue where they wait to be printed. The job that is put first into the queue is printed first.
Page 15: Océ Tds400 Options
Change settings (Océ Settings Editor). Océ TDS400 options By default, the Océ TDS400 has an automatic 1 roll unit and is equipped with a receiving tray as the output delivery device. The receiving tray is the rack on the bottom of the printer (see figure 1 on page 12).
Page 16 With the Scan Manager you can: configure the destinations for scan to file increase your productivity with automatic file naming view the scans Refer to ‘Use the Océ TDS400 to Scan’ on page 65 for complete information about the Scan Manager application. ® ®...
Page 17: Océ Tds400 Users
The repro operator is responsible for the daily operations on Repro operator the Océ TDS400 . The Repro Operator settings are a subset of the Key Operator settings. The Repro Operator has no rights to change settings in the Settings Editor.
Page 18 Operator panels The Océ TDS400 has two operator panels to make the settings for the print jobs and the copy jobs. See ‘Printer operator panel’ on page 22 and ‘Scanner operator panel’ on page 44 for complete information. Océ Remote Logic®...
Page 19: The Data Flow To The Océ Tds400
The data flow to the Océ TDS400 Connect the Océ TDS400 to a host environment, which can be a stand alone PC/Workstation or a PC/Workstation connected to a network. It accepts different standard format vector and raster data files from the host environment and converts these into high quality prints ((see figure 3)).
Page 20 Use the Océ Job submission software like Océ Print Exec® LT Web in order to compose jobs of plottable files in a very flexible and user friendly way (see chapter 5, ‘Océ Power Logic®: The Settings Editor’ on page 89). Océ TDS400 Digital Multifunctional System User Manual...
Page 21: Use The Océ Tds400 To Print
Océ TDS400 Digital Multifunctional System User Manual Chapter 2 Use the Océ TDS400 to print This chapter explains how to print with the Océ TDS400.
Page 22: Printer Operator Panel
The operator panel on the right hand side is easy to use (see figure 4). The panel has buttons and a display. Alphanumeric display Browse previous buttons Previous button next/select Next/select button On line button on-line stop Stop button [4] Printer operator panel Océ TDS400 Digital Multifunctional System User Manual...
Page 23: Display
38and page 39 in normal mode. In off-line mode it shows the ‘off-line’ menu (see figure on page 41). Menu level indicator The menu level indicator indicates the current position in the menu. Press the ‘Previous’ button to scroll through the menu. Use the Océ TDS400 to print...
Page 24: Buttons
These two buttons are used to select another mode at the same level of the menu, or to display the next or previous option from the option list. Stop button The red stop button is used to stop the present print job. Océ TDS400 Digital Multifunctional System User Manual...
Page 25: How To Turn On And Turn Off The Océ Tds400 Printer
Set the ON/OFF switch at the rear of the printer to position ‘1’ (see figure 5). If the power supply is connected, the green switch lights. [5] On/off switch of the printer When ‘Ready’ is displayed on the operator panel, the printer is ready for Note: use. Use the Océ TDS400 to print...
Page 26: Cancel A Print
Cancel a print before you start the print or during the print. Cancel a print Press the ‘stop’ button. The printer stops. When the printer runs, the paper is cut. The paper is always ejected. Océ TDS400 Digital Multifunctional System User Manual...
Page 27: Menu Structure
Menu structure On the Océ TDS400 printer operator panel, you can do a number of actions. These actions include: Media settings (material and size). Print info (configuration report, menu card and demo print). Configuration (connectivity issues). System (clear set memory and diagnostic mode).
Page 28 Press ‘next/select’ to enter the ‘Material’ menu. Select the desired media material with the button. Press ‘next/select’ to confirm the selected media material. Press ‘on line’ to put the printer on line again. Océ TDS400 Digital Multifunctional System User Manual...
Page 29: Manual Feed
Press ‘next/select’ to enter the ‘Time out’ menu. Select the desired time out with the button. Press ‘next/select’ to confirm the selected time-out. Press ‘on line’ to put the printer on line again. Use the Océ TDS400 to print...
Page 30: Cut Media
Feed the material until you can see the material and put the material into position ((see figure 57 on page 153) and 61 on page 155). Close the drawer. Press the ‘on line’ button to put the printer on line again. Océ TDS400 Digital Multifunctional System User Manual...
Page 31: Print Info
Press ‘next/select’ to enter the ‘Print info’ menu. Select the ‘Menu card’ item with the button. Press ‘next/select’ to print the menu chart Press ‘on line’ to put the printer on line again to print the menu card. Use the Océ TDS400 to print...
Page 32: Print The Demo Print
Print the demo print After the installation of the Océ TDS400, you can print the demo print, to check the printer and the controller. Make a demo print Press the ‘on line’ button to put the printer off line. Select the ‘Print info item with the button.
Page 33: Configuration
Turn the printer ‘off’ and ‘on’ again. Network settings The Océ TDS400 has 2 network adapters. To set the network settings you must enter the network data in 4 fields. Use DHCP server. The Dynamic Host Configuration Protocol (DHCP) is a protocol to automate the assignment of Internet Protocol (IP) addresses in a network.
Page 34 Press the ‘on line’ button to put the printer off line. Select the ‘System’ item with the button. Press ‘next/select’ to enter the ‘System’ menu. Enter password. Select ‘Network sett.’ with the button. Press ‘next/select’ to enter the ‘Network sett.’ menu. Océ TDS400 Digital Multifunctional System User Manual...
Page 35: Paper Series
Enter the next numbers of the ‘Default gateway’ with the button. Press ‘next/select’ to confirm. Press ‘on line’ to put the printer on line again. Paper series You must enter the paper series that you use in the printer. Choose between: DIN CARTO Use the Océ TDS400 to print...
Page 36 Select ‘Paper series’ with the button. Press ‘next/select’ to enter the ‘Paper series’ menu. Select the required paper series with the button. Press ‘next/select’ to confirm. Press ‘on line’ to put the printer on line again. Océ TDS400 Digital Multifunctional System User Manual...
Page 37: System Menu
Press ‘next/select’ to confirm the setting. Press ‘on line’ to put the printer on line again. Turn ‘off’ and ‘on’ the controller. Diagnostic mode The Diagnostic mode is only meant for the Océ service technician. Use the Océ TDS400 to print...
Page 38: Status Messages
Roll 2 empty Reload roll 2 after the printers stops printing. Job cancelled The current print or copy job is cancelled Close roll unit The roll unit is open. Close the roll unit. Océ TDS400 Digital Multifunctional System User Manual...
Page 39: Error Messages
An error occurred during the cut of the roll. Remove paper Check the paper in the roll unit and remove if necessary. Press <on-line> Press <on-line>. Roll retract err Print material error when the roll unit takes back the material. Press <on-line> Use the Océ TDS400 to print...
Page 40 UK English language. Press <on-line> Call service. Press <on-line> Close roll unit While you printed, the roll unit opened. Rewind paper Rewind the paper. Press <on-line> Close the roll unit. Press <on-line> Océ TDS400 Digital Multifunctional System User Manual...
Page 41: Menu Structure Of The Printer
Use DHCP server Network sett. adapter 1 IP address 123.456.789.123 Subnetmask 123.456.789.123 Default 123.456.789.123 gateway Use DHCP server adapter 2 IP address 123.456.789.123 Subnetmask 123.456.789.123 Default 123.456.789.123 gateway Installation Enter password start install. Use the Océ TDS400 to print...
Page 42 Océ TDS400 Digital Multifunctional System User Manual...
Page 43: Use The Océ Tds400 To Copy
Océ TDS400 Digital Multifunctional System User Manual Chapter 3 Use the Océ TDS400 to copy This chapter contains a description how to copy with the Océ TDS400.
Page 44: Scanner Operator Panel
Confirm roll 1 button Exposure media button trailing leading Strip button Zoom button zoom exposure strip Copy quantity display Start button Cancel button - button + button start cancel [7] Scanner operator panel Océ TDS400 Digital Multifunctional System User Manual...
Page 45: The Buttons
The icon flashes. Use the The exposure button browse buttons to change the exposure value. Select roll 1, roll 2 or manual feed. The equivalent icon is The media button Use the Océ TDS400 to copy...
Page 46: The Display
Wrong orig. type This message shows when you select ‘Background compen- Press <cancel> sation’ and ‘Blueprint’ as original. Press cancel. Set closed You closed the copy set. Reset scanner Turn the scanner on and off. Océ TDS400 Digital Multifunctional System User Manual...
Page 47: Menu Level Indicator
The menu level indicator indicates the current position in the menu. Press the ‘Previous’ button to scroll through the menu. file sheet copy input output extra [8] Menu level indicator on the scanner operator panel Use the Océ TDS400 to copy...
Page 48: Copy Jobs
25% to 400%. You can set the zoom value in fixed steps or in% steps. The default zoom is set in the Settings Editor. The Océ TDS400 cuts the paper to the length of the original, the synchro cut. If you select the standard cut mode, the copy is cut at a standard length, (see ‘Set synchro or standard cut’...
Page 49: Turn On And Turn Off The Océ Tds400 Scanner
Define image quality: Optimisation for line/text/photo or blueprint mode Background compensation for line/text/photo or blueprint mode Edit function: mirror Turn on and turn off the Océ TDS400 scanner To turn on the system: turn on the scanner. turn on the printer (see page 25).
Page 50: Start The Copy Process
‘start’ button, you can change the settings. Feed the original Insert the original face down and right aligned, along the original guide line on the scanner feed table so that you can see the line (see figure 10). Océ TDS400 Digital Multifunctional System User Manual...
Page 51: Number Of Copies
To have multiple copies from one original, enter the number of copies on the scanner operator panel. The original is scanned just once and the required number of copies are processed. Refer to ‘Product specifications Océ TDS400’ on page 175 for the limitation of multiple copy jobs. Use the Océ TDS400 to copy...
Page 52: Select The Use Of Roll 1 Or Roll 2 Or Manual Feed
Select ‘set’ to keep the copies together and to prevent the interruption with a print job. ‘set’ makes a copy for each sheet in a set and continues with the next copy of the complete set (see figure 11). Océ TDS400 Digital Multifunctional System User Manual...
Page 53: To Copy Sets
Specify the zoom factor With the Océ TDS400 you can reduce or enlarge your original from 25% to 400%. Press the ‘zoom’ button to enter the zoom mode. You can select the zoom factor by means of the browse buttons when the indication flashes.
Page 54: The Exposure Settings
The result of some originals can not match your requirements. When you copy very light or dark originals, or originals with unequal background density, the result can not meet your requirements (e.g. too much background). Océ TDS400 Digital Multifunctional System User Manual...
Page 55 ‘Background comp. menu. Select ‘on’or ‘off’ with the button. Press the confirm button. The Océ TDS400 Copier allows you to adjust the exposure setting according to the type of image on the original. There are three original types available: Lines/text Photo Blueprint By default ‘Lines/text’...
Page 56: Deliver Originals After Scanning
To enable automatic feed Press the ‘extra’ button. Select ‘Scanner’ with the button. Press the button, to enter the ‘Scanner’ menu. Select ‘Autofeed orig.’ with the button. Press the button, to enter the ‘Autofeed orig.’ menu. Océ TDS400 Digital Multifunctional System User Manual...
Page 57: Define Settings For The Next Original
Press the ‘media’ button to select ‘manual feed’. The indicator lights. The minimum length of the print material must be 420 mm. Note: [12] Manual feed Enter the number of copies. Select the copy size. Feed the original. Use the Océ TDS400 to copy...
Page 58 Select the ‘time out’ with the button. Press ‘next/select’ to enter the ‘time out’ menu. Select the desired timeout with the button. Press ‘next/select’ to confirm the selected timeout. Press ‘on line’ to leave the main menu. Océ TDS400 Digital Multifunctional System User Manual...
Page 59: Stop A Copy Job
Press button, to enter the ‘Paper copy’ menu. Select ‘cut length’ with the button. Press button, to enter the ‘cut length’ menu. Select ‘on’ or ‘off’ with the button. Press the ‘confirm’ button. Use the Océ TDS400 to copy...
Page 60: Adjust The Leading Or The Trailing Strip
If you make the strip larger than the strip on the original, you can Attention: loose information. See the figures on the next pages to make a difference between rolls and manual feed, when you adjust the strips. Océ TDS400 Digital Multifunctional System User Manual...
Page 61: Leading Edge
Leading/trailing strip when you use rolls of paper Leading edge Null Positive Negative Copy Original [13] Use of rolls Use the Océ TDS400 to copy...
Page 62 Leading/trailing strip when you use pre-cut sheets of paper Leading edge Null Positive Negative Copy Original [14] Use pre-cut sheets Océ TDS400 Digital Multifunctional System User Manual...
Page 63: Mirror-Image Copies
Select ‘on’or ‘off’with the button. Press the confirm button. Make other settings if required. Feed the original. Press the ‘start’ button. The original is fully released after the scanner has completed its scan run. Use the Océ TDS400 to copy...
Page 64: Menu Structure Of The Scanner
E+ (36x48”) D+ (24x36”) Paper copy C+ (18x24”) B+ (12x18”) 30”x42” B1+ (707x1000mm) B2+ (500x707mm) B2 (500x700mm) Mirror Rewind original Autofeed orig. Release orig. Scanner UK English Language Nederlands more... Print menu chart Printing... Océ TDS400 Digital Multifunctional System User Manual...
Page 65: Use The Océ Tds400 To Scan
Océ TDS400 Digital Multifunctional System User Manual Chapter 4 Use the Océ TDS400 to Scan This chapter describes how to use Océ Scan Logic® with the Océ TDS400.
Page 66: Introduction
E-mail the documents Prints the documents at a later time A scan is made at the Océ TDS400 scanner. On the scanner operator panel, you select the resolution and the destination of the scan. You can store a generated file on the controller (temporary store) or move the scan towards a network destination.
Page 67: Make A Scan
Note: on/off in the ‘scanner’ menu on the scanner panel (see ‘Menu structure Océ TDS400 Scanner’ on page 72). When release paper is enabled, the original will be fully released after it is scanned. On the controller, Océ View Station starts, to show the result of the scan (see figure 16).
Page 68: Settings To Scan
A Check print is a print from the scanned original. You can turn Check print the check print on or off. The Océ TDS400 Scan Logic® option can scan three File resolution resolutions: 200, 300 or 400 dots per inch (DPI). The higher the resolution, the better the image quality.
Page 69: Check Print
The Océ TDS400 Scan Logic® option can scan three resolutions: 200 dots per inch (dpi) 300 dpi 400 dpi To reach the best print quality on the Océ TDS400 select 300 dpi. Select the resolution Press the ‘output’ button to select ‘file’. Press the ‘extra’ button.
Page 70: File Format
Press the ‘output’ button to select ‘file’. Press the ‘extra’ button. Select ‘File format’ with the button. Press the button, to enter the ‘File format’ menu. Select the required format or subformat with the button. Press the confirm button. Océ TDS400 Digital Multifunctional System User Manual...
Page 71: Optimisation
Select optimise size Press the ‘output’ button to select ‘file’. Press the ‘extra’ button. Select ‘Optimise size’ with he button. Press the button, to enter the ‘Optimise size’ menu. Select ‘on’ or ‘off’ with he button. Use the Océ TDS400 to Scan...
Page 72: Menu Structure Océ Tds400 Scanner
TIFF G4 tiled TIFF unc. RAW TIFF unc. strip TIFF unc. tiled CALS PDF unc. PDF G4 Optimize size Rewind original Autofeed orig. Scanner Release orig. UK English Language Nederlands more... Print menu chart Printing... Océ TDS400 Digital Multifunctional System User Manual...
Page 73: Scan Manager
[17] Overview of the Scan Manager application Not all options are available to all users. You must log into a particular Note: user mode to do specific tasks with Scan Manager (see ‘Océ TDS400 users’ on page 17). Use the Océ TDS400 to Scan...
Page 74: Tree View
Under these circumstances it is possible that your most recent scanned file is not visible in the table on screen. In this case you can update the table view. Océ TDS400 Digital Multifunctional System User Manual...
Page 75 From the ‘View’ menu select ‘Refresh’ or click the ‘Refresh’ button on the toolbar (see figure 18). If the opened destination is also the one which is currently scanned to, then the view is automatically updated. [18] ‘Refresh’ button on the toolbar Use the Océ TDS400 to Scan...
Page 76: Actions From The Scan Manager
Create a destination Select ‘Destinations’ in the tree view. From the ‘File’ menu select ‘New’ or click the ‘New’ button on the toolbar (see figure 19). [19] ‘New’ button on the toolbar Océ TDS400 Digital Multifunctional System User Manual...
Page 77 You can create six destinations. Note: A key operator can select if a destination can be modified by an anonymous user. This is done by locking and unlocking a destination. Lock a destination Select a destination. Use the Océ TDS400 to Scan...
Page 78 Check or uncheck the ‘Add appropriate file extension’ check box to add or respectively leave out an appropriate file extension. The file extension can be set in the Settings Editor. Click ‘OK’ to accept the settings. Océ TDS400 Digital Multifunctional System User Manual...
Page 79: Scanned Files
Print a scanned file Select a file in the right pane. From the ‘File’ menu select ‘Print’ or click the ‘Print’ button on the toolbar (see figure 24). [24] ‘Print’ button on the toolbar Use the Océ TDS400 to Scan...
Page 80 From the ‘File’ menu select ‘Properties’ or click the ‘Properties’ button on the toolbar (see figure 26). [26] ‘Properties’ button on the toolbar. The following window appears (see ‘‘Scanfile properties’ window’ on page 81): Océ TDS400 Digital Multifunctional System User Manual...
Page 81: Manage The Temporary Store
When you normally scan the originals to a file, many files are created in the temporary store. You can clean the temporary store: manual: from the ‘System’ menu select the ‘Purge’ command. automatic: you must make some settings in the Océ TDS400 Settings Editor. Use the Océ TDS400 to Scan...
Page 82: How To Retrieve Scanned Files
Remote client Windows®95 / 98 Power Logic Controller Windows NT® 4.0 Remote client Windows® NT 4.0 [28] How to retrieve scan files? Océ TDS400 Digital Multifunctional System User Manual...
Page 83: Get Files Via Ftp
‘unsent’ directory if you want to retrieve a file from ‘unsent’ folder on the local host. Get the data file (for example: bugatti.tif) via the ‘get’ command: ‘get bugatti.tif’. Quit FTP by entering the ‘bye’ command. Use the Océ TDS400 to Scan...
Page 84: Océ View Station (Lt)
(see ‘Automatically view a file after scanning’ on page 81) after scanning or via Scan Manager (see ‘Print a scanned file’ on page 79). Océ View Station has the following menu’s (see figure 29): File View Preference Help [29] Océ View Station Océ TDS400 Digital Multifunctional System User Manual...
Page 85: Menu Options
File, View, and Preference menu commands. Status bar Status Bar displays and removes the Status Bar at the bottom of the Océ View Station window. The Status Bar displays the pointer co-ordinates and a status line. Use the Océ TDS400 to Scan...
Page 86: Function Buttons
Measurement When active, allows you to measure lines and areas on the image. Reference. This small floating window displays the entire current page in miniature for reference. Displays or removes the Detail window. Océ TDS400 Digital Multifunctional System User Manual...
Page 87: View Error
When the memory is almost full it can occur that the viewer does not show the scanned file. Instead it shows a red border with a red cross (see figure 31). [31] Error view in Océ View Station Use the Océ TDS400 to Scan...
Page 88 Océ TDS400 Digital Multifunctional System User Manual...
Page 89: Océ Power Logic®: The Settings Editor
Océ TDS400 Digital Multifunctional System User Manual Chapter 5 Océ Power Logic®: The Settings Editor This chapter gives information about the Settings Editor. For details about specific settings, refer to the Help on the Settings Editor.
Page 90: Introduction
Introduction Use the Settings Editor to set the default settings of the Océ TDS400 according to your companies requirements. 2 types of users can determine settings in the Settings Editor, Key Operators and System Administrators. You can log in as either Key Operator or System Administrator.
Page 91: How To Start Up And Shut Down The Controller
You can now restart the controller by pressing the ‘Restart’ button. Note: Turn off your computer and display. The Océ TDS400 has a sleep mode. The sleep mode powers off almost Note: all the power supplies after a certain time of inactivity.
Page 92: Settings Editor
Settings Editor The Settings Editor is one of the controller applications for the Océ TDS400. The Settings Editor allows users and operators to view settings of the system. If authorised, the settings of the system can be modified on the Settings Editor.
Page 93: General Structure
[32] Settings Editor General structure The Settings Editor is structured as follows: Menu bar Top toolbar Left toolbar Settings area Status bar Océ Power Logic®: The Settings Editor...
Page 94: Menu Bar
When you click on the ‘Open’ button, you open a saved file. Open All Key Operator and System Administrator settings can be saved in Save as a file. This way you can have different settings for different customers, departments or other situations. Océ TDS400 Digital Multifunctional System User Manual...
Page 95 These settings can only be saved in Key Operator or System Note: Administrator mode. When you click on the ‘Apply’ button, the changes you have made Apply become effective. Initially, this button is disabled. It is enabled after the first setting is changed and disabled again after the apply action is performed or after an undo action.
Page 96: Left Toolbar
Most settings are displayed using a tree structure. By clicking Tree structure on the settings, folders can be opened to show all the entries or closed to hide all the entries below these folders. Océ TDS400 Digital Multifunctional System User Manual...
Page 97: Status Bar
The settings for system components that are not available are not displayed. So, if you do not have a folder, no folder settings are available. This means that different configurations result in different tree structures. When a tree item has been changed, this item will be marked with a Note: bullet.
Page 98: How To Access The Settings Editor
Start Océ Settings Editor on a remote workstation You must first install Océ Remote Logic® as described (see Note: ‘Installation procedure for MS Windows® systems’ on page 121). Select 'Océ Remote Logic®' via the 'Start' menu. Océ TDS400 Digital Multifunctional System User Manual...
Page 99: How To Perform Actions From The Settings Editor
Select the 'Launcher' application. Select Settings Editor. Océ Settings Editor starts. How to perform actions from the Settings Editor You can perform a number of activities from the Settings editor. These activities include: Save settings to file Load settings from a file All Key Operator and System Administrator settings Save and load settings can be saved in a file or loaded from a file.
Page 100 A dialogue box is displayed from where you can choose the right file. Click the ‘Apply’ button. The loaded settings are transferred to the system. This is only possible if the user is logged in as a Key Operator or System Note: Administrator. Océ TDS400 Digital Multifunctional System User Manual...
Page 101: Key Operator Settings
When you are finished, make certain you log out of the Key Operator Note: mode of the Settings Editor to prevent unauthorized use of the Océ TDS400. Make Key Operator settings in the Settings Editor maximise the Settings Editor on the screen.
Page 102: System Administrator Settings
System Administrator settings The Océ TDS400 System Administrator is responsible for: Dithering matrix and Poker settings Printer language controller settings Pen settings Automatic Language Selection (ALS) settings Controller identification settings Set memory reservation settings Connectivity settings. To modify the System Administrator settings you have to access the SA settings in the Settings Editor.
Page 103 When you are finished, make certain you log out of the System Note: Administrator mode of the Settings Editor to prevent unauthorized use of the Océ TDS400. Make System Administrator settings in the Settings Editor Maximise the Settings Editor on the screen.
Page 104 Océ TDS400 Digital Multifunctional System User Manual...
Page 105: Océ Power Logic®: System Control Panel
Océ TDS400 Digital Multifunctional System User Manual Chapter 6 Océ Power Logic®: System Control Panel This chapter describes how to view the status of the Océ TDS400.
Page 106: Introduction
Panel. Toolbar The tool bar of the System Control Panel contains the following buttons: Printer: to hide or to show the status of the printer. Media: to hide or to show media information. Océ TDS400 Digital Multifunctional System User Manual...
Page 107 Scanner: to hide or to show the status of the scanner. Controller: to hide or to show the status of the controller. Memory: to hide or to show the amount of set memory that is used. If operator invention is required for a device, the respective button Note: flashes.
Page 108: Icons
You can hide the media by de-selecting it in the View menu option. Note: Icons The Océ TDS400 System Control Panel uses a number of icons to display information about the media available on the printer. The following icons are used: The material is available and the roll is ready for printing.
Page 109: User Operations
User operations The System Control Panel allows you to perform the following operations: Make a demo plot Print your system configuration Clear the system Shut down the system Make a demo plot Select the Demo plot option in the System menu. A demo plot is made on the printer.
Page 110 Océ TDS400 Digital Multifunctional System User Manual...
Page 111: Océ Power Logic®: Queue Manager
Manager This chapter describes how to view and manage jobs in the Océ TDS400 print queue, inbox queue, and history queue. It shows how to cancel the active print and how to delete the prints, how to hold the print jobs in the queue, how to...
Page 112: Introduction
File: Login, Logout, Connect to, Close Edit: set the default printer and 'Auto login'. View: selecting the language, switching between queues, and configuring the view of the queues. Help: About Queue Manager, Contents of the help. Océ TDS400 Digital Multifunctional System User Manual...
Page 113 This window displays the job currently being The active print job window. printed on the Océ TDS400. This window has a tabular format and shows the jobs The print queue window.
Page 114: Modes
[39] Queue Manager window Modes The Océ TDS400 Queue Manager has the following modes: Anonymous user mode Repro operator mode Key operator mode System administrator mode Service operator mode These different modes are designed to limit access to the specific functions to authorized users only.
Page 115 The priority of print and copy jobs in the Queue Manager is Job priority determined by the order in which they are submitted to the Océ TDS400. However, there is a setting in the Settings Editor which allows you to give copy jobs priority over print jobs.
Page 116: Icons
Icons The Océ TDS400 Queue Manager uses a number of icons to display information about a job in the queue. The following icons are used: [40] Receiving/received the job [41] Processing / processed the job [42] Printing the job [43] Delivering the job...
Page 117: Managing Print Jobs
Managing print jobs View the print queue The Queue Manager displays all jobs sent to the print queue in a list sorted according to the order in which they will be printed. This ordering can be changed by: deleting jobs putting jobs on hold restarting jobs currently on hold moving jobs to top...
Page 118 Click on the ‘Print’ button on the toolbar. Change number of sets in the history queue Select the desired job(s) by clicking on it/them. Click on the ‘Properties’ button on the toolbar. Select number of sets in the menu window Océ TDS400 Digital Multifunctional System User Manual...
Page 119: Océ Power Logic®: Remote Logic
Océ TDS400 Digital Multifunctional System User Manual Chapter 8 Océ Power Logic®: Remote Logic This chapter describes how to install and use Océ Remote Logic ®...
Page 120: Introduction
Océ Remote Logic® enables you to: View system status (Océ System Control Panel). Manage print jobs (Océ Queue Manager). Change settings (Océ Settings Editor). For more information see ‘Use Océ Remote Logic®’ on page 126 Océ TDS400 Digital Multifunctional System User Manual...
Page 121: Installation Procedure For Ms Windows® Systems
Océ Remote Logic (Queue Manager, System Control Panel and Settings Editor) are on the Océ TDS400 CD-ROM and on the Océ Power Logic® Controller CD-ROM provided with the system. The installation procedure for Remote Logic® is quite simple and self-explanatory. When you select the ‘Install remote applications’...
Page 122 ‘Start’ menu. To work with the applications you first have to connect to an available Océ TDS400 machine. How to connect is described in ‘How to use the remote system’ on page 132.
Page 123: Installation Procedure For Unix Systems
Installation procedure for Unix systems ® Océ Remote Logic is set up to be platform independent. It runs on a variety of operating systems providing that a Java™ runtime environment is available for that platform. The Java™ runtime environment must be installed by a user with system administrator privileges, depending on Java™...
Page 124: Ibm Aix
The preferred version of the Java™ runtime environment for HP-UX 10.20 and HP-UX 11.00 is version C.01.18.xx. Linux IBM has a runtime engine available for Linux which can be downloaded from: http://www.ibm.com/java Océ TDS400 Digital Multifunctional System User Manual...
Page 125: Installation Procedure For Other Systems
Installation procedure for Other systems ® In general, Océ Remote Logic can run on any system with a Java™ VM. ® Steps to install Océ Remote Logic in general Install Java™ Virtual machine (preferred 1.1.8 (or higher)). Extract ‘RemoteLogic_vX.tar’ or ‘RemoteLogic_vX.zip’, from the Océ Remote logic®...
Page 126: Use Océ Remote Logic
Start the Océ TDS applications via the ‘Start’ menu or via the ‘Application Launcher’ application. ® Start Océ Remote Logic on a remote workstation Select 'Océ Remote Logic' via the 'Start' menu. Select ' Application Launcher'. Select the required application from the ‘Application Launcher’. Océ TDS400 Digital Multifunctional System User Manual...
Page 127: User Modes
User modes The following user modes are available: Anonymous user mode Repro operator mode Key operator mode System administrator mode Service operator mode The anonymous user mode only offers monitoring capabilities. You are not allowed to change anything. The repro operator, the key operator and the system administrator modes allow you to perform a number of user actions.
Page 128: Log In
You have to log out to leave the key operator, repro operator and system administrator modes. How to log out From the ‘File’ menu, select ‘Log out’. You return to anonymous user mode. You must log out into each application separately. Note: Océ TDS400 Digital Multifunctional System User Manual...
Page 129: To Change The Password
To change the password You can change your password on a standard base. You can change the password for each user mode (except anonymous user mode, for which no password is required and service operator) by taking the following steps: Change the password: From the ‘File’...
Page 130: Help
Specifies the second language in combination with the language2=lang parameter ‘country2=country’ Specifies the second language in combination with the country2=country parameter ‘language2=language ’. You must always use a matching combination of ‘lang’ and ‘country’ Note: (see table on page 131). Océ TDS400 Digital Multifunctional System User Manual...
Page 131 Language Language Language Country parameters Danish Czech Spanish Finnish Hungarian Italian US English UK English Dutch German French Portuguese Norwegian Swedish Polish Japanese The parameters can be applied to the following applications: QM.exe (Queue Manager) SCP.exe (System Control Panel) SE.exe (Settings Editor) AL.exe (Application launcher) These .exe files are usually located in ‘C:\Program Files\Remote Note:...
Page 132: How To Use The Remote System
A dialogue box will appear containing a drop-down list box with the available systems. Select one of the available systems and click on ‘OK’. When you connect to another system, all settings have to be retrieved. This may take some time. Océ TDS400 Digital Multifunctional System User Manual...
Page 133: Océ Print Exec® Lt Web
Océ TDS400 Digital Multifunctional System User Manual Chapter 9 Océ Print Exec® LT Web The Océ Print Exec® LT Web is a job submission application. It allows you to send print jobs to a printer from your web browser and view the status of the system.
Page 134: Introduction To Océ Print Exec® Lt Web
Enable Print Exec® LT Web in the Settings Editor. Type the following URL in your browser: http://Printername The ‘Printername’ is the domain network server (DNS) name or IP Note: address of the printer (see figure 51 on page 135). Océ TDS400 Digital Multifunctional System User Manual...
Page 135 [51] Océ Print Exec® LT Web Add new jobs Click ‘New job’ A form appears like in figure 52 on page 135. Click ‘Browse’ to add documents Click ‘Submit’ when you are ready. [52] Job composition For more information please consult the on-line help. Océ...
Page 136 Océ TDS400 Digital Multifunctional System User Manual...
Page 137: Océ Power Logic®: Account Logging
Océ TDS400 Digital Multifunctional System User Manual Chapter 10 Océ Power Logic®: Account Logging This chapter describes what Account logging is and how to use it.
Page 138: The Account Logging Option
The account log file is stored on the controller. The controller Storage generates a account log file each day. You can determine for how long the Océ TDS400 Digital Multifunctional System User Manual...
Page 139: Make Copy, Print, Or Scan Jobs
The print/copy/scan jobs you make in one day are stored in one Storage separate account log file. The Océ TDS400 system makes each day a new account log file. You can set how long the account log files are stored on the controller.
Page 140: How To Retrieve The Account Files
File Transfer Protocol (FTP). FTP can be done: via an internet browser or via a dos box. Get the account log file via FTP in a internet browser Start an internet browser Océ TDS400 Digital Multifunctional System User Manual...
Page 141 ‘save’ option. [54] The ftp directories on the Océ TDS400 system [55] The accounting directory with the account log file on the Océ TDS400 system Océ Power Logic®: Account Logging...
Page 142: Use The Generated Accounting File
Open the account log file that is on your system. Microsoft Excel® shows the content of the account log file: the records (see figure 56). Now you can process the data in the account log file. Océ TDS400 Digital Multifunctional System User Manual...
Page 143 [56] The account log file in Microsoft Excel® Océ Power Logic®: Account Logging...
Page 144: Account Information In The Log File
Any deviation from these values (even by 1 unit) implies that a non-standard media format was chosen in the job. Note that for output in landscape orientation, the width and height Note: values are swapped. Océ TDS400 Digital Multifunctional System User Manual...
Page 145: Account Information For The Media Weights
Media Format for Output Media Format name Width Height (units of 1/72 inch) (units of 1/72 inch) 2384 3370 1684 2384 1191 1684 1191 2448 3168 1584 2448 1224 1584 1224 2592 3456 1728 2592 1296 1728 1296 2004 2835 1417 2004 1001...
Page 146: Structure Of The Account File
NORMAL Structure of the account file The Océ TDS400 supports two different record types: 6310 and 6311. The first record in each account log file is of type 6310 and contains a list of abbreviated field names that occur in records of type 6311. this record is always the same in each account log file and is used as a comment.
Page 147 Unique ID of the printer. If there is only a scanner, then the unique ID of the scanner. For the Océ TDS400 this is implemented as the serial number of the printer/scanner. Record version Version number of this record type. 0 for this ver- sion.
Page 148 For referenced files: the URL of the file. For scans, the input set number to which the page belongs: S1 to S999 (for the first until the 999 put set). Note: The Océ TDS400 only supports 1 input set. Source page...
Page 149 All Parameter descriptions (continued) Parameter Type Length Description (max) Process type text Type of processing that was done for this page: PLOT, COPY, STF (scan to file), CHK (check plot), ICOPY (interrupt copy), INTRNL (internal job), HEADER (header page), TRAILER (trailer page), ERRPAGE(error page), REPLOT (from history queue) Process comple-...
Page 150 Empty if no digital output. Output resolu- Resolution of output in width direction in dpi tion (width di- rection) Output resolu- Resolution of output in height direction in dpi tion (height di- rection) Océ TDS400 Digital Multifunctional System User Manual...
Page 151: Printer Supplies And Scanner Maintenance
Océ TDS400 Digital Multifunctional System User Manual Chapter 11 Printer supplies and scanner maintenance This chapter describes how to load paper, refill the toner, replace the waste toner bag and clean the scanner.
Page 152: Media
The Océ TDS400 is available with a roll unit for one or two rolls. Each of the rolls on the Océ TDS400 can be loaded with print material of a different size or type. The size and type of the available media are indicated on the operator panel.
Page 153: The Paper Rolls
System Control Panel application. You then have to load a new roll of print material. You can use the following media for the Océ TDS400: Note: Plain paper 64 g/m2 (55 g/m2)
Page 154 59). The knob must be at the right hand side and paper must be positioned as shown in figure 59. [59] Press the knob Align the roll with the appropriate lines on the roll holder while pressing the knob. This line has to be completely visible. Océ TDS400 Digital Multifunctional System User Manual...
Page 155 Place the roll holder with the material in the drawer (see figure 60). [60] Reposition the roll Feed the material between the input guide plates against the rollers. Turn the rollers until the material is visible (see figure 61). Also refer to the sticker inside the drawer.
Page 156 Slide the roll holder in the roll of print material while pressing the knob (see figure 59 on page 154). It is important to have the knob at the right hand side and the paper as shown in figure 59. Océ TDS400 Digital Multifunctional System User Manual...
Page 157 Align the roll with the appropriate lines on the roll holder while you press the knob. Place the roll holder with the material in the lower paper compartment (see figure 64). [64] Reposition the roll in the lower paper drawer Feed the material between the input guide plates against the rollers.Turn the rollers until the material is visible (see figure 65).
Page 158: How To Program Media Settings
(80/85 g/m Transparent 75g Transparent paper 110/115 g/m Transparent 110 g Translucent Translucent 60 g/m Vellum Vellum 20 lbs (16 lbs) Film 3.5 mil (4 mil) Film 3.5 Film 4.5 mil Film 4.5 Océ TDS400 Digital Multifunctional System User Manual...
Page 159: How To Refill Toner
How to refill toner If the ‘Refill toner’ message appears on the printer panel, you must refill toner immediately. Use only B5 toner. Attention: Refill toner Turn off the printer. Unscrew the knurled nut at the left hand side of the printer and open the left cover (see figure 66).
Page 160 Move the toner bottle to a vertical position (see figure 68). [68] Add toner Tap the toner out of the bottle. When the toner bottle is empty return the bottle to the original position. Unscrew the toner bottle anti clockwise. Océ TDS400 Digital Multifunctional System User Manual...
Page 161 Replace the waste toner bag Pull the waste toner bag from the holder and place the cap provided on the bag (see figure 69). [69] Replace the waste toner bag Slide a new waste toner bag over the holder. Close the cover and tighten the knurled nut. Press the ‘on line’...
Page 162: Maintenance Of The Glass Platen And The Reference Roller Of The Scanner
Raise the cover (see figure 71 on page 163). Clean the glass platen and the white pressure platen gently with a soft cloth moistened with a small quantity “Cleaner A”. For safety information see the safety data sheet in Appendix B. Océ TDS400 Digital Multifunctional System User Manual...
Page 163 [71] Glass platen and reference roller Lower the top cover. Lock the cover by pushing the front side of the cover down and pushing it back to the rear until you hear a click. Make sure that the cover is closed correctly, to ensure proper original Note: transport.
Page 164 Océ TDS400 Digital Multifunctional System User Manual...
Page 165: How To Solve Problems
Océ TDS400 Digital Multifunctional System User Manual Chapter 12 How to solve problems This chapter describes the problems that can occur with the Océ TDS400.
Page 166: Introduction
Introduction This chapter describes problems that can occur with the Océ TDS400 and how to correct the problems. There are two main categories: Original jams in the scanner (see page 167). Paper jams in the printer (see page 168). Stickers on parts of the system indicate which green handles, green knobs, green bars and covers can be lifted, pressed or opened to remove the jammed material.
Page 167: Original Jams In Scanner
Original jams in scanner If an original jams, you can stop the original with the orange ‘cancel’ button. Remove a jammed original Unlock the top cover by pushing the front side of the cover down and to pull it towards you. (see figure 72). [72] Open the top cover of the scanner Raise the cover (see figure 73) [73] Raise the cover of the scanner...
Page 168: How To Clear A Paper Jam
Turn on the printer. If you can not clear the paper jam by opening the feed table than open Note: the fusing section (see ‘How to solve a jam in the fuser section’ on page 169). Océ TDS400 Digital Multifunctional System User Manual...
Page 169: How To Solve A Jam In The Fuser Section
How to solve a jam in the fuser section Open the fuser only to remove the paper after a media jam. Caution: Because of hot surfaces the operator always has to be cautious and wear heat-protective gloves, when he removes material in the fuser section. Clear a jam in the fuser section Turn off the printer.
Page 170 Remove the jammed material. Be careful! The toner is not fused. Attention: Lift the green handle and close the fuser unit. Close the left cover and tighten the screw. Turn on the printer. Océ TDS400 Digital Multifunctional System User Manual...
Page 171: Summary And Tables
Océ TDS400 Digital Multifunctional System User Manual Appendix A Summary and tables...
Page 172: The Océ Tds400
The Océ TDS400 [78] The Océ TDS400 system Scanner Scanner feed table Copy delivery tray Scanner operating panel Printer Manual feed Printer operating panel Monitor Cabinet Océ Power Logic® Controller Rolls Integrated Receiving Tray Océ TDS400 Digital Multifunctional System User Manual...
Page 173: Printer Operator Panel
Printer operator panel The graphics display The previous button The next/select button previous The stop button The browse buttons (left , right ) next/select The on-line button on-line stop Summary and tables...
Page 174: Scanner Operator Panel
2 roll 1 Confirm Media button button media Exposure trailing button leading Zoom button Strip button zoom exposure strip Copy quantity display Start button Cancel button - button + button start cancel Océ TDS400 Digital Multifunctional System User Manual...
Page 175: Product Specifications Océ Tds400
Product specifications Océ TDS400 The Océ TDS400 is a wide format low to medium volume print and copy system. Printer Technology Electrophotography (LED) with organic photoconductor (OPC) drum and closed toner system Resolution 600 dpi Speed 3 linear meters p/min. or approx. 2A0s p/min.
Page 176 Set memory: send once, process once, print many; ca- pacity to store up to 135 A0s and create identical sets sorted by page or by set Concurrent receiving / processing / printing of digital jobs Océ TDS400 Digital Multifunctional System User Manual...
Page 177 Océ Remote Logic® software Software Application Functionality Queue Manager view status for each job and cancel, hold and restart the en- tire job System Control Panel view status and settings of system components application Settings Editor change system settings Scanner Model Free-standing console Technology...
Page 178 Océ Print Exec® Light Job submission software for Windows 95/98® and NT 4.0® Note: Check Océ on the internet at www.oce.com for the latest drivers. Finishing: copy delivery tray Model Wheeled delivery tray with blower unit Capacity Up to 150 sheets (media type dependent) from A3 to A0...
Page 179 Compact output stacker Model The transport unit that delivers copies and prints on the front-side of the printer. Capacity Up to 100 sheets depending on the material. Dew Preventer Model An optional heater to prevent dampness in media Summary and tables...
Page 180: List Of Available Material Types And Sizes
It is therefore recommended to use only approved Océ materials in the Océ TDS400. A full list of Océ materials suited for use in the Océ TDS400, including plain paper, transparent paper, coloured papers and various polyester films is available from your Océ representative.
Page 181 DIN range 1189 8,5 inch range Material Width [inch] Length [inch] 11 inch / B 17 inch / C 22 inch / D 34 inch / E 9 inch range Material Width [inch] Length [inch] 12 inch / B+ 18 inch / C+ 24 inch / D+ 36 inch / E+ Other formats...
Page 182: Automatic Format Selection
8,5 inch range on the printer. The job you print is an A1 format. The printer will automatically select the 30 inch format. The next table shows which format the Océ TDS400 controller chooses if you print a specific format on a chosen range...
Page 183: Summary Of Standard Zoom Formats
Summary of standard zoom formats Standard zoom fixed steps for the DIN paper serie [%] Original 36 inch 36 inch Standard zoom fixed steps for the DIN carto paper serie [%] Original 36 inch 36 inch Standard zoom fixed steps for the 8,5 inch paper serie Original 11 / B 17 / C 22 / D 24 / D+ 30...
Page 184 22 / 24 / 34 / 36 / E+ [inch] 11 / B 12 / B+ 17 / C 18 / C+ 22 / D 24 / D+ 34 / E 36 / E+ Océ TDS400 Digital Multifunctional System User Manual...
Page 185: Safety Information
Océ TDS400 Digital Multifunctional System User Manual Appendix B Safety information...
Page 186: Instructions For Safe Use
Connection If for some reason you have to move the machine yourself, please make sure that the mains power point has the right fuse capacity. See the Océ TDS400 safety data sheet in this appendix for information about maximum current.
Page 187 Do not block the ventilation openings of the machine. Ensure that the machine is placed on a level, horizontal surface of sufficient strength. See the Océ TDS400 safety data sheet in this appendix for information about the weight of the equipment.
Page 188: Safety Data Sheets
If and in so far as limitation of liability is permitted under the applicable laws, we do not accept liability for any inaccuracy that may occur in this information. Océ TDS400 Digital Multifunctional System User Manual...
Page 189: Safety Data Sheet Océ Tds400 Printer
Safety data sheet Océ TDS400 printer PRODUCT SAFETY DATA SHEET Océ-(UK), Ltd Number E-717-a-UK Date August 2000 Model Océ TDS400 printer Electrophotographic printer, instant printing, console model, plain paper, organic Description photoconductive drum, powder toner Max. process speed 3 m/min...
Page 190: Safety Data Sheet Océ Tds400 Printer And Scanner
Safety data sheet Océ TDS400 printer and scanner PRODUCT SAFETY DATA SHEET Océ-(UK), Ltd Number E-718-a-UK Date August 2000 Model Océ TDS400 Description Multifunction device, instant copying/printing, consisting of an electrophotographic printer, console model, plain paper, organic photoconductive drum, powder toner and a free standing scanner.
Page 191: Safety Data Sheet Océ B5 Toner
Safety data sheet Océ B5 toner MATERIAL SAFETY DATA SHEET Number E-199-a-UK (93/112/EEC and ISO 11014-1) Date October 1997 Page 1 of 2 Océ B5 Toner 1. Product and company identification Product name Oc B5 Toner Packing Polyethylene bottle, contents 0,45 kg/1.1 lb Company Oc (UK) Ltd.
Page 192: Material Safety Data Sheet
Room ventilation: see operator manual or safety data sheet for the machine. Copyright © 1997 Océ-Technologies B.V. Venlo, NL The content of this safety data sheet is subject to the disclaimer on page 188 of this manual. Océ TDS400 Digital Multifunctional System User Manual...
Page 193: Safety Data Sheet Océ D5 Developer
Safety data sheet Océ D5 Developer MATERIAL SAFETY DATA SHEET Number E-200-a-UK (93/112/EEC and ISO 11014-1) Date October 1997 Page 1 of 2 Océ D5 Developer 1. Product and company identification Product name Océ D5 Developer Packing Polyethylene bottle, contents 1,75 kg/3.86 lb Company Océ...
Page 194 Room ventilation: see operator manual or safety data sheet for the machine. Copyright © 1997 Océ-Technologies B.V. Venlo, NL The content of this safety data sheet is subject to the disclaimer on page 188 of this manual. Océ TDS400 Digital Multifunctional System User Manual...
Page 195: Safety Data Sheet Océ Opc Drum
Safety data sheet Océ OPC drum MATERIAL SAFETY DATA SHEET Number E-218-a-UK (93/112/EEC and ISO 11014-1) Date April 1998 Page 1 of 2 Océ OPC Drum Part No. 2912571, Océ ES102 OPC Part No. 7069008 1. Product and company identification Product name Océ...
Page 196 16. Other information Use: photoconductor for printers and copiers. Copyright © 1998 Océ-Technologies B.V. Venlo, NL The content of this safety data sheet is subject to the disclaimer on page 188 of this manual. Océ TDS400 Digital Multifunctional System User Manual...
Page 197: Safety Data Sheet Océ Cleaner A
Safety data sheet Océ Cleaner A continued on the next page Safety information...
Page 198 ©1991 Océ-Technologies B.V. The content of this safety data sheet is subject to the disclaimer on page 188 of this manual. Océ TDS400 Digital Multifunctional System User Manual...
Page 199: Epa Energy Star
TAR ® EPA E NERGY TAR ® Océ-Technologies B.V. has joined the E Program of the United NERGY States Environmental Protection Agency (EPA). The purpose of the E NERGY TAR ® Program is to promote the manufacturing and marketing of energy-efficient equipment, thereby potentially reducing combustion-related pollution.
Page 200 Océ TDS400 Digital Multifunctional System User Manual...
Page 201: Miscellaneous
Océ TDS400 Digital Multifunctional System User Manual Appendix C Miscellaneous...
Page 202: Notation Conventions
The information that follows ‘Attention’ is given to prevent Attention: something (your copy or original, the copier or printer, data files etc.) being damaged. The information that follows ‘Caution’ is given to prevent you Caution: suffering personal injury. Océ TDS400 Digital Multifunctional System User Manual...
Page 203: Reader's Comment Sheet
Reader’s comment sheet Have you found this manual to be accurate? Could you operate the product after reading this manual? Does this manual provide enough background information? Is the format of this manual convenient in size, readability and arrangement (page layout, chapter order, etc.)? Could you find the information you were looking for? Always Most of the times...
Page 204 Océ-Technologies B.V. For the attention of ITC User Documentation. P.O. Box 101, 5900 MA Venlo The Netherlands Send you comments by E-mail to: itc-userdoc@oce.nl For the addresses of local Océ organizations see: www.oce.com Océ TDS400 Digital Multifunctional System User Manual...
Page 205: Addresses Of Local Océ Organisations
Addresses of local Océ organisations Océ-Australia Ltd. Océ-Danmark A.S. P.O.Box 363 Kornmarksvej 6 Brøndby Ferntree Gully MDC VIC 3165 DK 2605 Denmark Australia Océ-Österreich GmbH Océ-France S.A. Postfach 95 32, Avenue du Pavé Neuf, 1233 Vienna 93161 Noisy-le-grand, Cedex Austria France Océ-Belgium N.V./S.A.
Page 206 190 MacPherson Road Singapore 348548 Océ España SA Business Park MAS BLAU C/Osona 2, 2-3a Planta 08820 El Prat del Llobregat (Barcelona) Spain Océ-Svenska AB P.O.box 1231 S-164 28 Kista Sweden Océ-Schweiz AG Sägereistrasse 29 CH8152 Glattbrugg Switzerland Océ TDS400 User Manual...
Page 207: Index
connect to a controller 132 connecting 132 Index connecting workstations 83, 142 controller shut down 91 start up 91 copy process start 50 access 98 cut media 30 account logging copy, print, or scan jobs 139 edit account id and user id on the scanner panel account logging option 138 delete a scanned file 80 add a controller 132...
Page 208 144 organization 70 original guide line 50 original jam 167 output button 45 maintenance glass platen 162 reference roller 162 make a scan paper series 35 how to 67 8.5 inch 36 Océ TDS400 Digital Multifunctional System User Manual...
Page 209 177 océ opc drum 195 scan logic 178 océ tds400 printer 189 program media settings 158 océ tds400 printer and scanner 190 properties of a scanned file 80 safety data sheets 188 safety information 186 scan logic 65...
Page 210 74 file properties 74 temporary store 81 tiff subformat 70 time-out manual feed 29 top cover of the scanner 162, 167 tree structure 96 tree view 74 destinations 74 turn off Océ TDS400 Digital Multifunctional System User Manual...

Oce TDS400 User Manual

Chapter 1 Introduction

Chapter 2 Use the Océ TDS400 to Print

Chapter 3 Use the Océ TDS400 to Copy

Chapter 4 Use the Océ TDS400 to Scan

Chapter 5 Océ Power Logic®: the Settings Editor

Chapter 6 Océ Power Logic®: System Control Panel

Chapter 7 Océ Power Logic®: Queue Manager

Chapter 8 Océ Power Logic®: Remote Logic

Chapter 9 Océ Print Exec® LT Web

Chapter 10 Océ Power Logic®: Account Logging

Chapter 11 Printer Supplies and Scanner Maintenance

Chapter 12 How to Solve Problems

Appendix A Summary and Tables

Appendix B Safety Information

Appendix C Miscellaneous

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oce TDS400

Summary of Contents for Oce TDS400
