Chicago Electric 93179 Set Up And Operating Instructions Manual

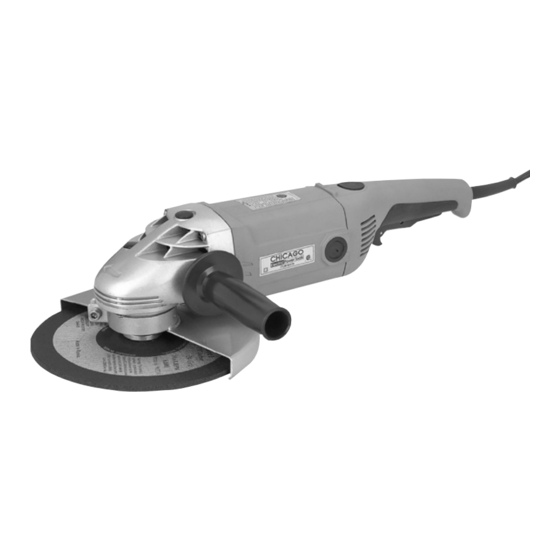

9” angle grinder
Hide thumbs Also See for 93179:
Table of Contents

Advertisement

Quick Links

9" ANGLE GRINDER
SEt up AND OpERAtING INStRuctIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE thIS MANuAL.
©
Copyright
2005 by Harbor Freight Tools
contained herein may be reproduced in any shape or form without the express written consent of Harbor
Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements,
actual product may differ slightly from the product described herein.
For technical questions or replacement parts, please call 1-800-444-3353.
Manual Revised 10h
Model
93179
®
. All rights reserved. No portion of this manual or any artwork

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 93179 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chicago Electric 93179

Summary of Contents for Chicago Electric 93179

  • Page 1 9” ANGLE GRINDER Model 93179 SEt up AND OpERAtING INStRuctIONS Visit our website at: http://www.harborfreight.com Read this material before using this product. Failure to do so can result in serious injury. SAVE thIS MANuAL. © ® Copyright 2005 by Harbor Freight Tools .

  • Page 2: Safety Warnings And Precautions

    Save this Manual such as pipes, radiators, ranges, and refrigera- tors. There is an increased risk of electric shock if You will need the manual for the safety warnings your body is grounded. and precautions, assembly instructions, operating and maintenance procedures, parts list and diagram. Keep Do not expose power tools to rain or wet con- your invoice with this manual.

  • Page 3: Specific Safety Rules

    activities, contain chemicals known (to the State Service of California) to cause cancer, birth defects or other reproductive harm. Some examples of 23. tool service must be performed only by quali- fied repair personnel. Service or maintenance these chemicals are: lead from lead-based paints, performed by unqualified personnel could result in crystalline silica from bricks and cement or other masonry products, arsenic and chromium from...

  • Page 4: Double Insulated Tools: Tools With Two Prong Plugs

    10. Never leave the tool unattended when it is Double Insulated tools: tools with plugged into an electrical outlet. Turn off the two prong plugs tool, and unplug it from its electrical outlet before leaving. 11. use only 9” diameter grinding wheels having a 5/8”...
  • Page 5 When using more than one extension Symbology cord to make up the total length, make sure each cord contains at least the Double Insulated minimum wire size required. (See table Canadian Standards Association If you are using one extension cord for more than one tool, add the nameplate Underwriters Laboratories, Inc.

  • Page 6: Specifications

    Specifications Input 120 V~, 60 Hz, 15 A Motor Speed 6500 RPM Power Cord 82”L x 14AWG 2 prong polarized Molded ABS Motor Housing Construction Cast Aluminum Gear Housing 9” with 5/8” x 11TPI Arbor Spindle Wheel Diameter optional 7/8” Arbor Adaptor included Overall 18-1/2”L x 4-3/8”W x 5-1/2”H Dimensions...
  • Page 7 You must install the Grinding Wheel (502) before an epoxy binder and usually a fabric matrix. using your tool. During manufacture, the grit portion of the wheel is bonded to steel flanges which provide an area to slide onto the arbor and fix in place using the arbor nut.
  • Page 8 Rotating the Back Handle Using the Angle Grinder Before using the Angle Grinder, be sure all work area safety precautions are being observed. Be sure to wear ANSI approved eye protection. WARNING: Always use 2 hands during use. Rotating the Back Handle You can rotate the Back Handle (41, 48) by pressing the Rotation Button (53).

  • Page 9: Maintenance And Inspection

    Maintenance and Inspection The Armature (31) and Stator (36) comprise the main part of the tool. Protect these electrical components from moisture or oil intrusion. Inspect the Carbon Brushes (50) regularly. Replace them is they are more than 1/3 worn or are chipped or cracked. When handling them, be careful not to damage them.

  • Page 10: Parts List

    parts List pARt DEScRIptION pARt DEScRIptION Disc Locking Nut Bearing Cover Backing Washer Key 2.9x5x13 Wheel Guard Armature Guard Clamp Ball Bearing 629.2Z Screw M8x28 Bearing Bushing Key 4x5x13 Guide Wind Circle Arbor Spindle Screw ST5x80 Screw M5x16 Stator Spring Washer *5 Connection Spring Gear Housing Cover Name Plate...

  • Page 11: Assembly Drawing

    Assembly Drawing SKU 93179 For technical questions, please call 1-800-444-3353. Page 11...

  • Page 12: Limited 90-Day Warranty

    LIMItED 90 DAY WARRANtY Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
