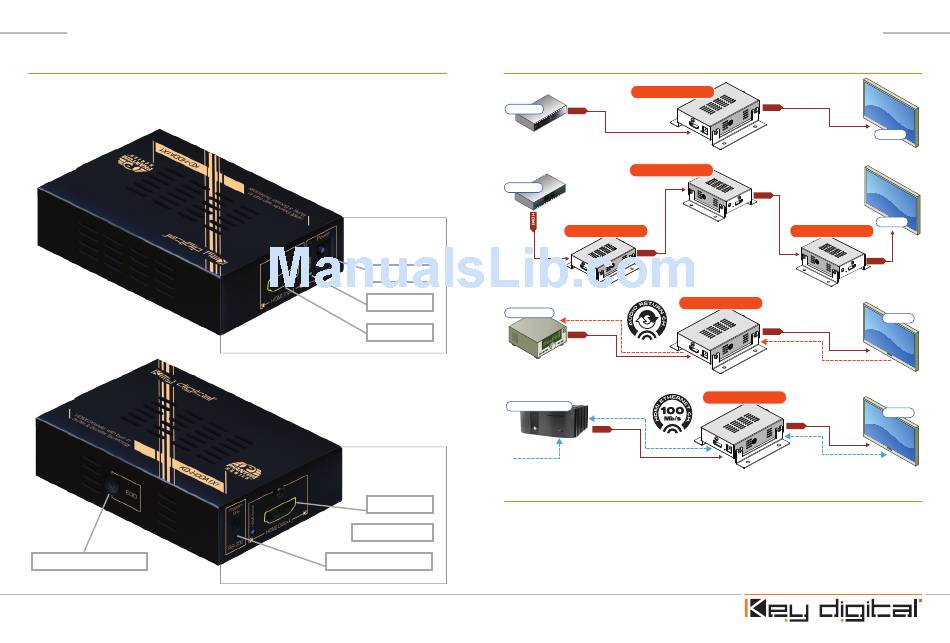

Connections

The KD-HDDA1x1 provides 1x HDMI Input and 1x HDMI Output, a 3.5mm stereo
mini-jack for programming, a 10 position rotary EDID switch, and a 5V 2A power
connection.
EDID Switch - 10 Position
Application Examples
Input Side
Power 5V 2A
Power LED
HDMI Input
Output Side

Quick Setup Guide

HDMI Output
With the power supply disconnected, connect the source HDMI cable to the Input
and the Display HDMI to the Output. If a specific EDID is required, set it now (see
HDMI Active LED
'Settings' below for more information regarding EDID). At this point you may power on
your display, then the KD-HDDA1x1 followed by the source.
RS-232 - Program Only
KD-HDDA1X1
Blu-Ray
HDMI
65'
KD-HDDA1X1
Cable Box
65'
KD-HDDA1X1
65'
HDMI
KD-HDDA1X1
A/V Receiver
HDMI
65'
Digital Signage Server
HDMI
65'
Ethernet
HDMI
65'
Display
HDMI
Display
KD-HDDA1X1
65'
HDMI
HDMI
65'
Audio Return Channel Over the Same Cable
KD-HDDA1X1
HDMI
65'
Ethernet Channel Over the Same Cable
