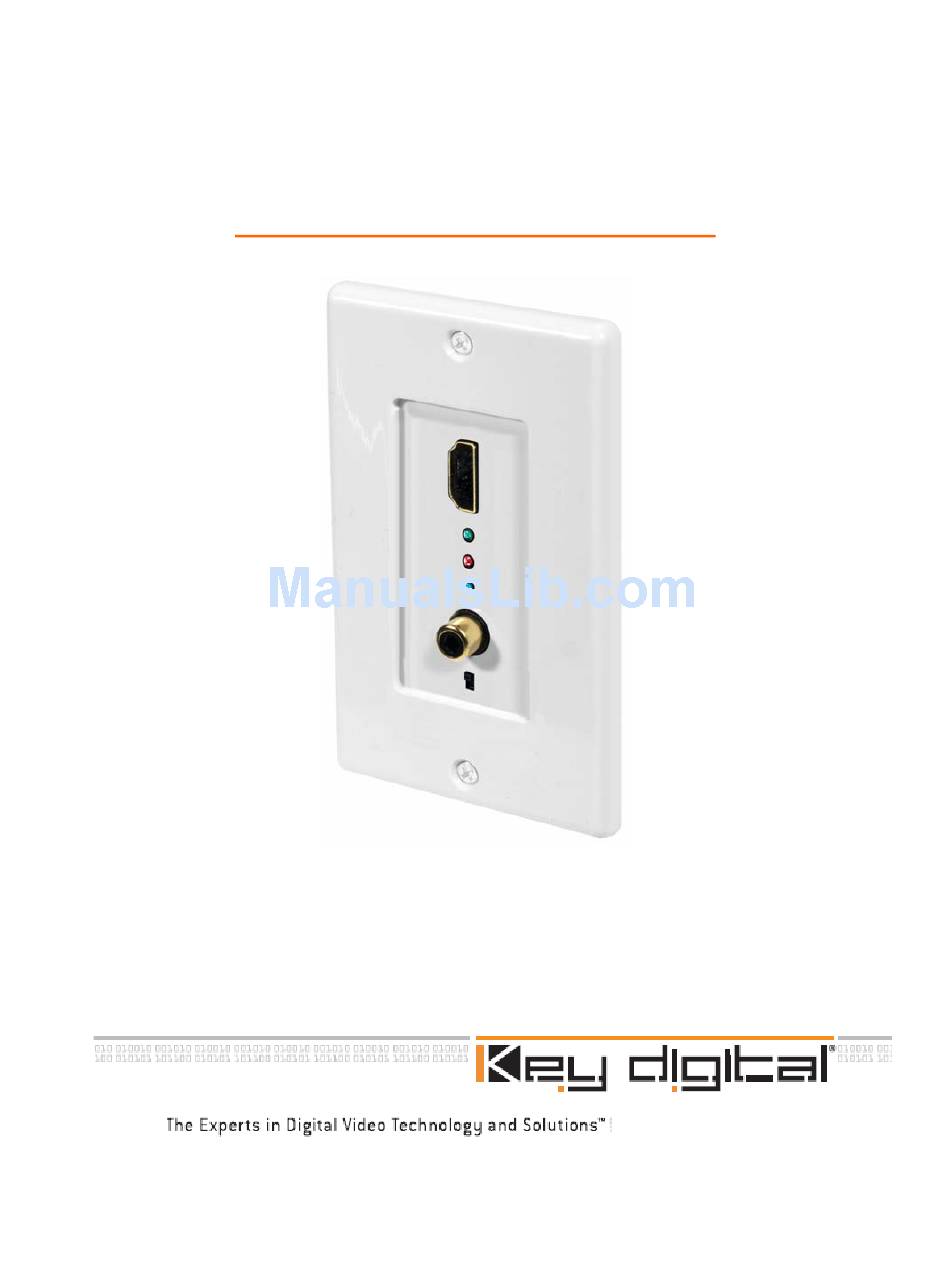

KD-HDMIWPRX

Operating Manual

HDMI CAT5 Wall Plate Extender

The KD-HDMIWPRX is a CAT5 to HDMI and PCM wall plate extender receiver

capable of cable runs to distances of 125 feet at 1080P and can be used with or

without the supplied power adapter. This device is intended for use with Key

Digital's KD-HDMIXWPTX, KD-HDMIXCAT5* or KD-CAT5XCAT5.

*Note that when used with the KD-HDMIXCAT5, the PCM input port of the KD-HDMIWPRX has no active signal

Need help?

Do you have a question about the KD-HDMIWPRX and is the answer not in the manual?

Questions and answers

Summary of Contents for Key Digital KD-HDMIWPRX

Page 1: Operating Manual
125 feet at 1080P and can be used with or without the supplied power adapter. This device is intended for use with Key Digital’s KD-HDMIXWPTX, KD-HDMIXCAT5* or KD-CAT5XCAT5. *Note that when used with the KD-HDMIXCAT5, the PCM input port of the KD-HDMIWPRX has no active signal...
Page 2 (‘Data’ and ‘Control’) on the KD-HDMIWPRX • Connect the digital coaxial audio output, if used, to the receiving device (A/V receiver, etc) • Finally, connect the HDMI output of the KD-HDMIWPRX to the display or receiving device...
Page 3 Table of Contents Installation Instructions……………………………………………………………………4 Technical Specifications ………………………………………………………………….6 Troubleshooting…………………………………………………………………………...6 Product Warnings………………………………………………………………………….7 Warranty………………………………………………………………………………...7 Contact Information……………………………………………………………………….8...
Page 4 CAT5 input on back Power Indicator HDMI output Valid Source/Synch DVD/TV connection indicator Stable output video signal present PCM Output Power Jack Fig. 1...
Page 5 3. Connections • Plug in the CAT5 source cables to their corresponding ‘Data’ and ‘Control’ input ports of the KD-HDMIWPRX. If you are not using the supplied power adapter, the “Power” LED should illuminate upon plugging in the ‘Control’ input cable if your HDMI source and the KD-HDMIWPTX, KD- HDMIXCAT5 or KD-CAT5XCAT5 are powered on.
Page 6 DVI applications for the KD-HDMIWPRX The KD-HDMIWPRX can also be used to extend DVI video cable runs. For these applications, use DVI to HDMI (Key Digital model number KD-MFHDMI) adapters to feed the HDMI input of the KD-HDMIWPRX. Mounting the KD-HDMIWPRX unit Before permanently securing the unit or final installation of cabling behind walls or ceilings, test for proper operation of the unit and the cables in your system.
Page 7 1. Use the shortest possible HDMI and CAT5 cables between devices. 2. Lower the output resolution of the image source. 3. Use the provided power supply for the KD-HDMIWPRX instead of relying on the voltage in the HDMI cable to power the unit.
Page 8 Test for proper operation before securing unit behind walls or in hard to access spaces. If installing the KD-HDMIWPRX into wall or mounting bracket into sheet- rock, provide proper screw support with bolts or sheet-rock anchors. Read and follow all instructions.
Page 9 Key Digital Contacts Repairs and Warranty Service To obtain a Returned Materials Authorization (RMA) number, please contact: Phone: (914)-667-9700 email: tech@KeyDigital.com rma@KeyDigital.com Technical Support Phone: (914)-667-9700 Email: tech@KeyDigital.com Customer support Phone: (914)-667-9700 Email: customersupport@KeyDigital.com...
