KD-HDB150 Operating Instructions
The Experts in Digital Video Technology and Solutions
Key Digital
develops and manufactures high quality, cutting-edge
technology solutions for virtually all applications where
high quality video imaging is important. Key Digital
at the forefront of the video industry for Home Theater
Retailers, Custom Installers, System Integrators,
Broadcasters, Manufacturers, and Consumers. We
provide total video system solutions because we
know and help drive the technology, the industry, the
business, and all the latest up-and-coming standards.
But most of all , we know exactly what you need
for your unique application – the right solution.
::
Web www.keydigital.com
Phone :: 914-667-9700 Fax ::
2:59 PM Page 12
® , led by digital video pioneer Mike Tsinberg,
914-668-8666
Rev 0 - August 2005

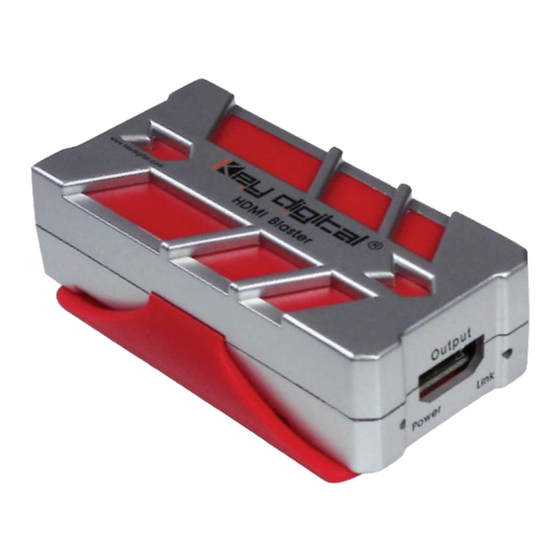

KD-HDB150
Extend the length of your HDMI cabling up to 150 feet*

OPERATING INSTRUCTIONS

TM
® is
HDMI (the High-Definition Multimedia Interface) is a convenient and popular all-digital audio/video
interface. Because HDMI is all-digital and supports high-quality HDTV video formats, long cable
runs can result in a loss of performance of the video signal. KD-HDB150 is the perfect solution to
transparently extend the lengths of HDMI cable runs, up to 150 feet (with 2 cables). Enjoy all the
advantages of crystal-clear digital connections to your display by simply inserting the adapter in the
middle of your cable run - no external power supply is required. The intelligent circuitry built into the
KD-HDB150 can even support 1080p, so you can enjoy the benefits of true HDTV.
The Experts in Digital Video Technology and Solutions
HDMI Blaster
™
