MOBILE THERMAL PRINTER
MODEL CMP-30 series
Technical Manual
Rev. 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMP-30 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Citizen CMP-30 series

Summary of Contents for Citizen CMP-30 series

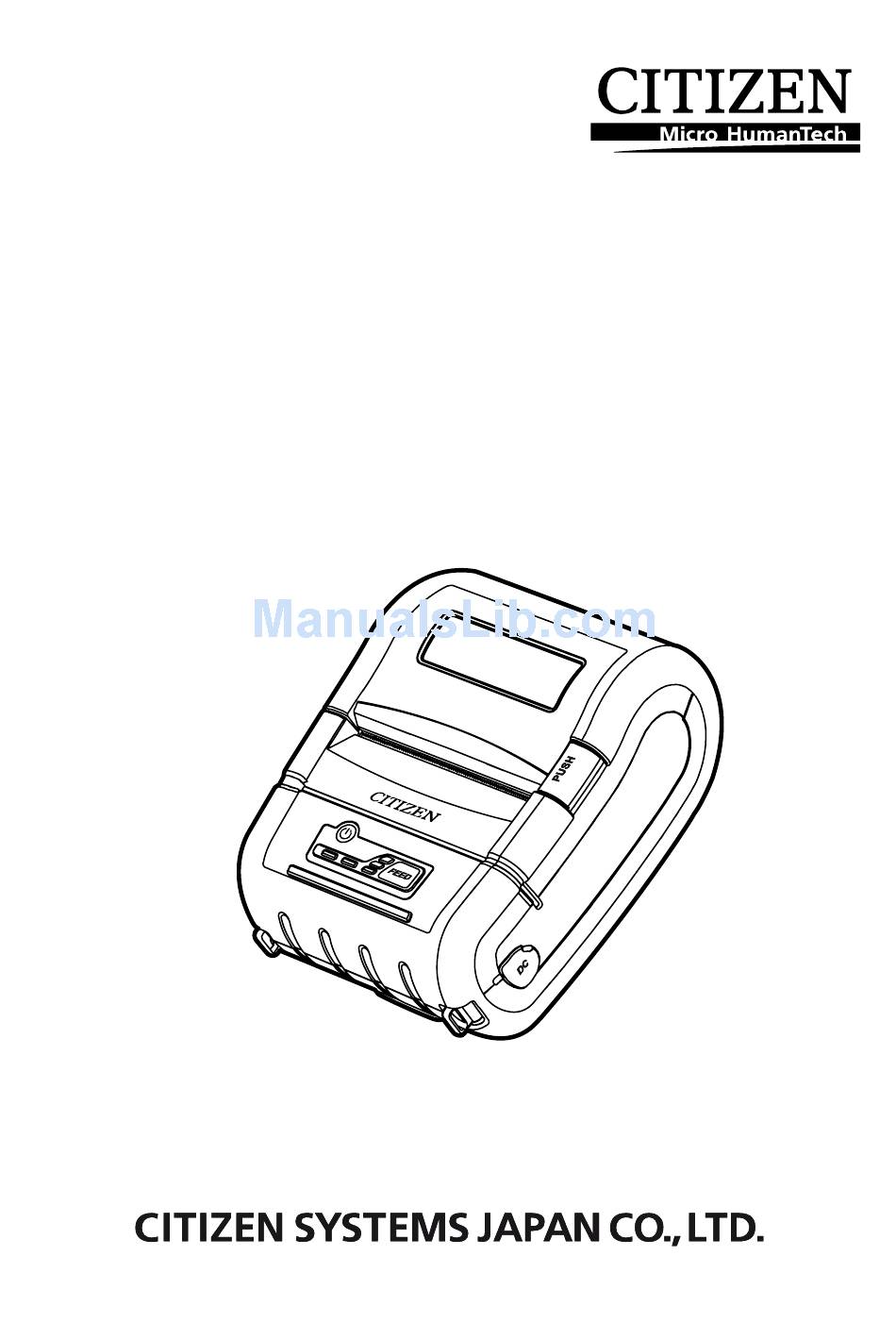

  • Page 1 MOBILE THERMAL PRINTER MODEL CMP-30 series Technical Manual Rev. 1.00...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. General Specifications 1.1 Printing Specifications 1.2 Character Specifications 1.3 Paper Specification 1.4 Printable Area 1.5 Internal Buffer 1.6 Electrical Characteristics 1.7 EMI and Safety Standards Applied 1.8 Reliability 1.9 Environmental Conditions 2. Configuration 2.1 RS-232 serial interface 2.1.1 Specifications 2.1.2 Switching between on-line and off-line 2.1.3 Interface connector terminal assignments and signal functions...

  • Page 3: General Specifications

    1. General Specifications 1.1 Printing Specifications 1) Printing method: Thermal line printing 2) Dot density: 203dpi 3) Printing direction: Unidirectional with friction feed 4) Printing width: 72mm(2.83"), 576 dot positions (203dpi) 5) Characters per line(ESC Emulation): Font A: 48 Font B: 64 6) Printing speed: 80mm/second maximum ☞...

  • Page 4: Character Specifications

    1.2 Character Specifications 1) Number of characters: Alphanumeric characters: Extended graphics 128 × 18 pages (including one space page) International characters: ① English ② Hangul ③ Chinese (GB2312,Big5) ④ Kanji 2) Character structure (ESC Emulation) Font A: 12 ⅹ 24 Font B: 9 ⅹ...

  • Page 5: Paper Specification

    Font Height Font # / Font Size 1.3 Paper Specification 1) Paper type: Specified thermal paper 2) Form: Paper roll 3) Paper width: 80 ±0.5mm 4) Paper roll size: Roll diameter : Maximum 56mm ☞ NOTE: Paper must not be pasted to the paper roll spool. - 5 -...

  • Page 6: Printable Area

    1.4 Printable Area 1.5 Internal Buffer 1) Receive buffer: 4Kbyte 1.6 Electrical Characteristics 1) Supply voltage: +7.4VDC , 2200mAH Li-ion Battery 1.7 EMI and Safety Standards Applied 1) UL: Safety – EN 60950-1:2001+A11:2003 – EN55022:98+A1:2000+A2:2003 – EN55024:98+A1:2001+A2:2003 – EN301 489-1 V1.6.1 –...

  • Page 7: Configuration

    2. Configuration 2.1 RS-232 serial interface 2.1.1 Specifications Data transmission: Serial Synchronization: Asynchronous Handshaking: DTR/DSR or XON/XOFF control Signal levels: MARK= -3 to –15V: Logic “1” SPACE= +3 to +15V: Logic “0” Baud rage: 4800, 9600, 19200, 38400,57600,115200 bps Data word length: 7 or 8 bits Parity Settings: None, even, odd Stop bits:...

  • Page 8: Serial Interface Connection Example

    2.1.4 Serial interface connection example Host side Printer side TXD ………………………………… RXD DSR ………………………………… DTR RXD ………………………………… TXD FG ………………………………… FG SG ………………………………… SG DETAILS: ◦Set the handshaking so that the transmit data can be received. ◦Transmit data to the printer after turning on the power and initializing the printer.

  • Page 9: Usb Interface

    2.2 USB Interface SIGNAL DESCRIPTION DATA- Printer transmit data line DATA+ Printer transmit data line System Ground 1) Specifications Data transmission: USB 2.0 Connector: USB “B” type connector 2) USB interface connection example Host side Printer side VCC ………………………………… VCC DATA+ ………………………………...

  • Page 10: Wifi Interface

    2.4 Wifi Interface ( Factory Option ) Item Content Standard 802.11b, 802.11g Communication Speed(Max) 100m(Indoors without obstructs))the Wireless Transmission Distance(Max) distance Depending on the environment) chanel 1-14 Safety 64/128 WEP, WPA Special configure tools Condition’s monitor Browser Special configure tools Configuration management Browser interface...

  • Page 11: Msr

    3. Module Configuration 3.1 MSR Item Content Card Standard ISO 7811/2, JIS Dual Track 1 , 2 Track or 2 ,3 Track 10cm ~ 15cm / sec (4 ~ 6 inch/sec) CardSwipe Speed Magnetic Head Life 300,000passes (minimum) Standard : 3mA(Dual) Power Consumption(3.0VDC) Operation : 500~900uA(Dual) Reading Track Width...

  • Page 12: Control Command Summary

    4. Control Command summary ESC Emulation Command Function Horizontal tab Print and line feed Print and carriage return Print end position label to start printing Cancel print data in page mode DLE EOT Real-time status transmission DLE ENQ Real-time request to printer ESC FF Print data in page mode ESC SP...
  • Page 13 GS r Transmit status GS v 0 Print raster bit image GS w Set bar code width < Add > GS S C Set Serial Baudrate DLE EOT n Selects card read mode / Cancel card read mode Power Save Mode GS S P - 13 -...
