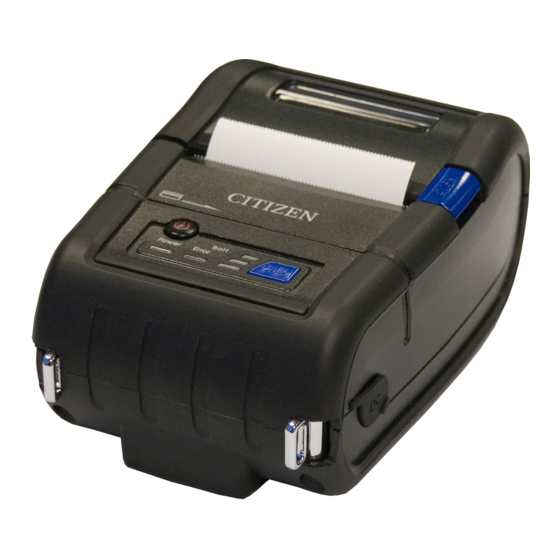

Mobile Printer CMP-20II/30II/40
Utility Manual
V2.64

Advertisement

loading
Need help?

Need help?

Do you have a question about the CMP-20II and is the answer not in the manual?

Questions and answers

Related Manuals for Citizen CMP-20II

Summary of Contents for Citizen CMP-20II

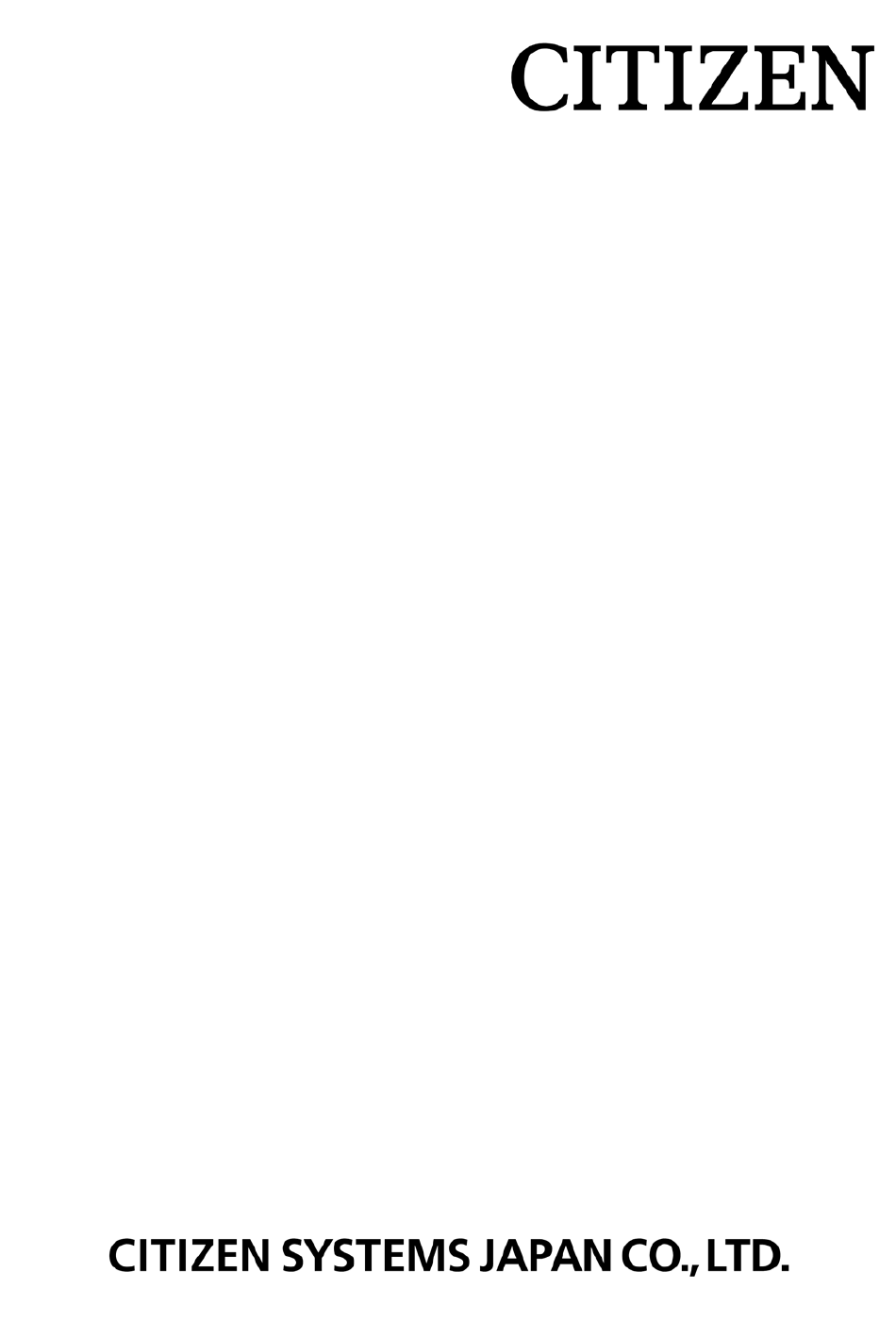

  • Page 1 Mobile Printer CMP-20II/30II/40 Utility Manual V2.64...

  • Page 2: Startup Screen

    CITIZEN CMP-20I/30II/40 Utility Manual 1. Startup screen On this screen, you can set following items. (Note: Related emulation with the function) Printer Connection Settings (Common) Density Settings: Default density (ESC/POS) Code Page Settings: Default code page (ESC/POS) Emulation Settings (Common)
  • Page 3 CITIZEN CMP-20I/30II/40 Utility Manual 2. Settings other than Wi-Fi or Bluetooth 2-1. Printer Connection Settings You can connect the printer to PC by Serial (COM1 – COM9) or USB port. When you use Serial Port, you have to check the Baud Rate setting between the printer & PC.
  • Page 4 CITIZEN CMP-20I/30II/40 Utility Manual 2-4. Emulation settings “Get Emulation” shows current emulation. Press “Set CPCL” or “Set ESC/POS” to change the emulation. It turned the printer off automatically. 2-5. Power Save/Power Off Mode You can set the power save mode like “No Power Save”, “Power Save Mode” & “Power Off Mode”...
  • Page 5 CITIZEN CMP-20I/30II/40 Utility Manual 2-6 Label Media Settings (CPCL) Media can be set here for CPCL. You can choose Label paper (Set Gap), Black mark paper (Set Black mark) or Receipt paper (Set Continuous). If you choose Black mark, sensor position needs to be set as well. If black mark is on backside of paper, choose “Upper”.
  • Page 6 CITIZEN CMP-20I/30II/40 Utility Manual 2-8 Advanced Options (CPCL) By pressing this button, the dialogue below shows up. On this dialogue, you can check and set the Language setting, Left margin, Top margin and margin from TOF to print area.
  • Page 7 CITIZEN CMP-20I/30II/40 Utility Manual 2-9 CMP-20/30 compatible mode setting (ESC/POS) This function make the ID of CMP-20II/30II same as CMP-20/30 type I. If the applicatio for type1 does not work for typeII, try this function. (This does not guarantee to solve the issue.)

  • Page 8: Bluetooth Interface Settings

    CITIZEN CMP-20I/30II/40 Utility Manual 3. Bluetooth Interface settings 3-1. Start Bluetooth Settings If you connect this software to the pritner, “Start Bluetooth Settings” button on top screen of this software becomes effective. Then press the button. Then the screen below shows up.
  • Page 9 CITIZEN CMP-20I/30II/40 Utility Manual 3-1. BT address and device name There is unique 12 digits BD address assigned to each Bluetooth module. You can check the BD address by “Get Bluetooth Information” button, Bluetooth device name can be changed by “Set Bluetooth Information” however if the firmware version is old and does not support this function, the message “Not supported…”...
  • Page 10 CITIZEN CMP-20I/30II/40 Utility Manual 3-4. Auto Connection Settings If the printer supports Auto connection setting of Bluetooth to iOS device and you want to disable the function or change back to enable the function, press Disable/Enable buttons. 3-5. Auto Connection Settings...
  • Page 11 CITIZEN CMP-20I/30II/40 Utility Manual 4. Wi-Fi Interface setting screen Basic flow for settings is as follows. Start=>Port Information=>Get Wi-Fi Information=>Change settings=>Save Wi-Fi Information 4-1 Start On the start-up screen of the utility, press “Start Wi-Fi Settings” button. (If the port of the utility is open for other settings, press “Close Port” first)
  • Page 12 CITIZEN CMP-20I/30II/40 Utility Manual 4-2 Port Information These are the settings of the port to communicate with printer for changing Wi-Fi settings. You can connect the printer from PC by Serial (COM1 – COM9) or USB. If you use Serial Port, you have to check the Port Settings between the printer & PC such as Baud Rate.
  • Page 13 CITIZEN CMP-20I/30II/40 Utility Manual Here is the result of “Get Wi-Fi Information” with the printer of default setting. 4-4 Save Wi-Fi Information and Reset (Factory Settings) After entering necessary changes, press “Save Wi-Fi Information” button to save the changes then changed Wi-Fi settings are saved on the printer.
  • Page 14 CITIZEN CMP-20I/30II/40 Utility Manual 4-5 Wi-Fi Setting Items Followings are the explanation of each setting items. Note: Please note that you cannot choose the invalid combination of setting items SSID This should be same as SSID of Access Point. Enter IP address for the Static IP address setting.
  • Page 15 CITIZEN CMP-20I/30II/40 Utility Manual SSID of the printer in SoftAP mode is CMP-_xxxx（xxxx is last 4 digits of Mac Address）. If you search the printer in SoftAP mode from the host and choose CMP-xxxx then IP address 192.168.100.1 is assigned to the host. (Printer IP address is fixed as 192.168.100.10.) Note3 As strong security, you can choose WPA PSK (TKIP) and WPA2 PSK (AES).
